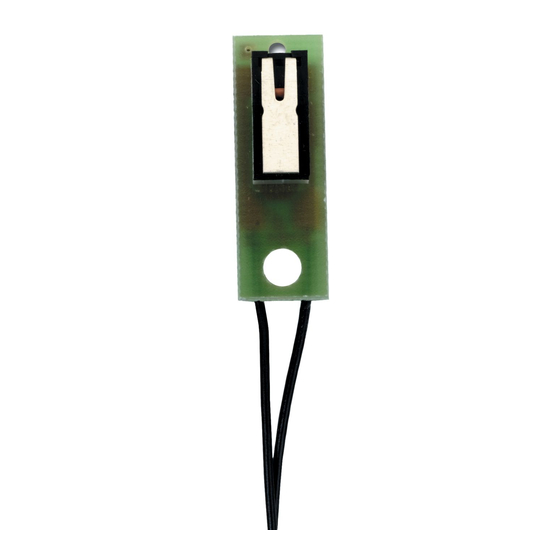

ST400 Pry-off Tamper Kit Installation Sheet
EN
IT
1
2
EN: Installation Sheet

Description

Figure 1: Mounting

(1) Wall plug
(2) Screw
(3) Hole for pry-off tamper

Figure 2: Connections

−0V
1
2
+12V
3, 4 Alarm
5
Spare
© 2020 Carrier
(T)
(4) Detector base
(5) ST400 pry-off tamper
(6) Small screw
6, 7 Tamper
8
LED
(T) Tamper loop
(1)
(2)
(3)
1.
Break out the hole for the pry-off tamper (Figure 1, item 3)
in the base of the detector (item 4).
2.
Use the base as a template for marking the position of the
screw (item 2) in the wall.
3.
Affix screw (item 2) to the wall.
4.
Affix ST400 (item 5) to the base (item 4) using the smaller
screw (item 6).
5.
Adjust screw (item 2) so that the ST400 switch closes
when the base is in its final position.
6.
Install the detector following the mounting instructions.
7.
Connect the ST400 in tamper loop as shown in Figure 2.

Regulatory information

Manufacturer
PLACED ON THE MARKET BY:
Carrier Fire & Security Americas Corporation Inc.
13995 Pasteur Blvd
Palm Beach Gardens, FL 33418, USA
AUTHORIZED EU REPRESENTATIVE:
Carrier Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, Netherlands
P/N 141795999-2 (ML) • REV C • ISS 07DEC20
1 / 4
(4)
(5)
(6)
