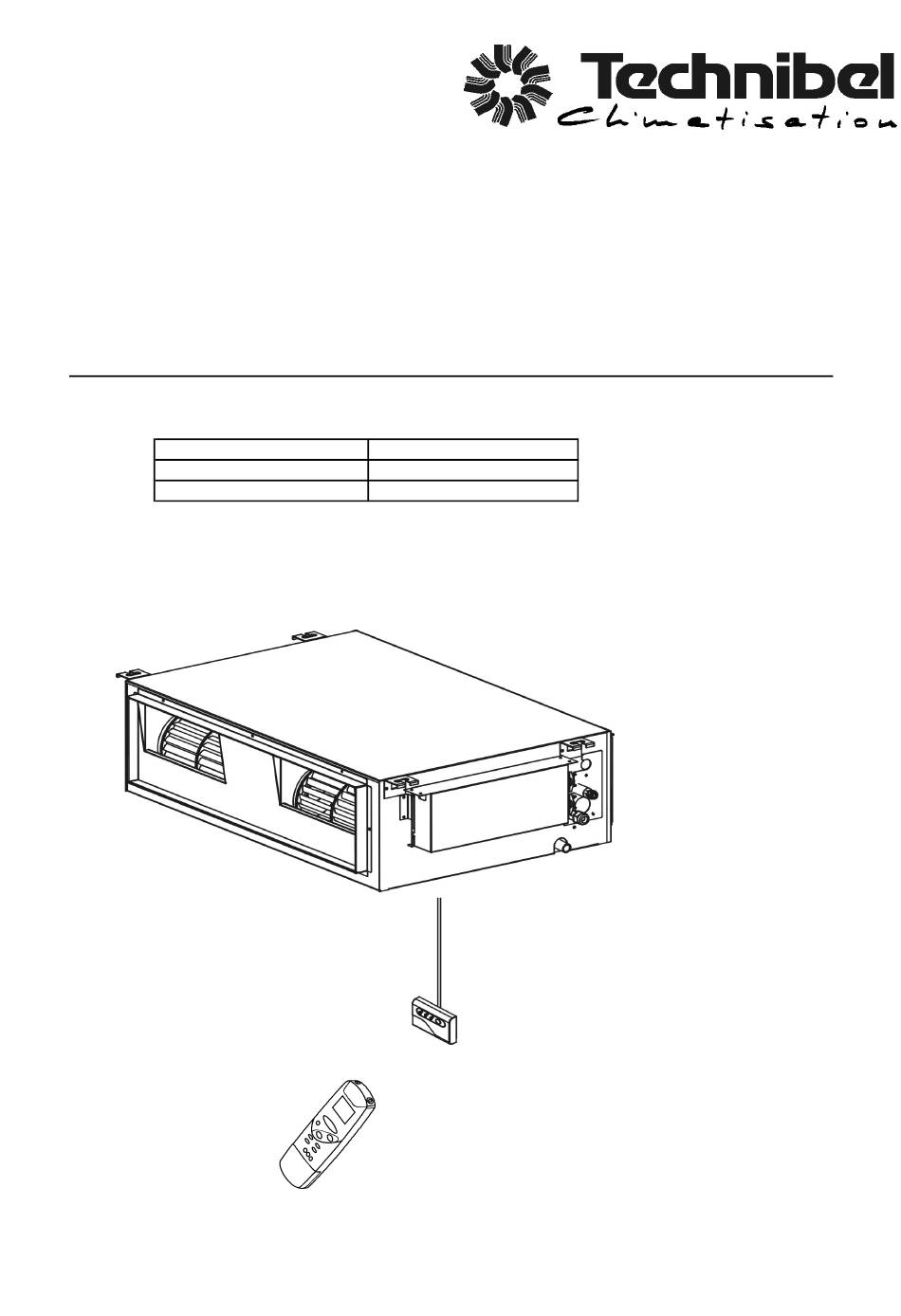

- Page 1 TECHNICAL DATA & SERVICE MANUAL INDOOR UNIT: DSAV92R5TAA DSAV122R5TAA SPLIT SYSTEM AIR CONDITIONER Model No. Product Code No. DSAV92R5TAA 387106949 DSAV122R5TAA 387106950 0.8180.309.1 12/2003...
- Page 2 IMPORTANT! • Ground the unit following local electrical codes. • The Yellow/Green wire cannot be used for any connection Please read before installation different from the ground connection. • Connect all wiring tightly. Loose wiring may cause overheating This air conditioning system meets strict safety and operating at connection points and a possible fire hazard.
-
Page 3: Table Of Contents
Table of Contents Page 1. SPECIFICATIONS 1-1 Unit specifications 1-2 Major Component specifications 1-3 Other Component specifications 1-4 Indoor Fan performance 2. DIMENSIONAL DATA 3. ELECTRICAL DATA 3-1 Electric Wiring Diagrams 4. FUNCTION 4-1 Room Temperature Control 4-2 Dry Operation (Dehumidification) 4-3 Automatic Switching between Cooling and Heating 4-4 Freeze Prevention (Cooling and Dry) 4-5 Compressor Overcurrent Protection (Cooling, Dry and Heating) -
Page 4: Specifications
1. SPECIFICATIONS 1-1 Unit Specifications DSAV92R5TAA 220 - 240V ~ 50Hz Power source 230V Voltage rating Cooling Heating Performance See catalogue with the requested matching Capacity 600/510/440 Air circulation (High/Med./Low) m³/h 49(5) at shipment - 69 (7) with booster cable External static pressure (High) Pa (mm W.G.) - Page 5 DSAV122R5TAA 220 - 240V ~ 50Hz Power source 230V Voltage rating Cooling Heating Performance See catalogue with the requested matching Capacity 600/510/440 Air circulation (High/Med./Low) m³/h 49(5) at shipment - 69 (7) with booster cable External static pressure (High) Pa (mm W.G.) Features Microprocessor/ I.C.
-
Page 6: Major Component Specifications
1-2 Major Component Specifications DSAV92R5TAA Controller PCB XR99EH-(SA) Part No. Microprocessor Controls 250 V - 3,15 A Control circuit fuse RCS-6HPN4E-G Remote Control Unit Fan & Fan Motor Centrifugal fan Type 2…. Ø 160 / L 240 Q'ty ……. Dia. and lenght 3RGB-CO-45-30 5V/1….1... - Page 7 DSAV122R5TAA Controller PCB XR129EH-(SA) Part No. Microprocessor Controls 250 V - 3,15 A Control circuit fuse RCS-6HPN4E-G Remote Control Unit Fan & Fan Motor Centrifugal fan Type 2…. Ø 160 / L 240 Q'ty ……. Dia. and lenght 3RGB-CO-45-30 5V/1….1 Fan motor model…Q'ty 4 …...
-
Page 8: Other Component Specifications
1-3 Other Component Specifications DSAV92R5TAA DSAV122R5TAA ATR-J105 Trasformer AC 230V, 50/60Hz Rating Primary 19V - 0.526A Secondary 10 VA Capacity Ω (at 21°C) Primary (WHT-WHT): 205 ± 10% Coil resistance Secondary (BRN-BRN): 2,0 ± 10% 150°C Thermal cut-off temp. PBC-41E-S14 Thermistor ( Coil sensor TH1) 0 °C 15,3 ±... -
Page 10: Dimensional Data
2. DIMENSIONAL DATA Units: mm... -
Page 11: Electrical Data
3. ELECTRICAL DATA 3-1 Electric Wiring Diagrams... -
Page 12: Function
4. FUNCTION 4-1. Room Temperature Control I Cooling G Room temperature control is obtained by cycling the compressor ON and OFF under control of the room temperature sensor in the remote control unit. G The room temperature (and other information) is transmitted every 5 minutes by the remote control unit to the controller in the indoor unit. - Page 13 I Heating G Room temperature control is obtained by cycling the compressor ON and OFF under control of the room temperature sensor in the remote control unit. G The room temperature (and other information) is transmitted every 5 minutes by the remote control unit to the controller in the indoor unit.
-
Page 14: Dry Operation (Dehumidification)
4-2. Dry Operation (Dehumidification) G Dry operation uses the ability of the cooling cycle to remove moisture from the air, but by running at low level to dehumidify without greatly reducing the room temperature. The air conditioner repeats the ON/OFF cycle automatically as shown in the chart below according to the room temperature. -
Page 15: Freeze Prevention (Cooling And Dry)
H1 (A) Compressor current (A) Trip Trip H2 (A) 6 sec. 8 sec. 7 sec. 1 sec. NOTE The compressor current shown as H1 and H2 in the chart differ by models. DSAV92R5TAA DSAV122R5TAA 16 A 22 A 10 A... -
Page 16: Overload Prevention (Heating)
H © H, M © M, L © M Indoor fan H or M or L Compressor NOTE The operation temperatures shown as A1, A2, A3 and A4 in the chart differs by models. DSAV92R5TAA DSAV122R5TAA 54°C 58°C 52°C 56°C 45°C... -
Page 17: Cold Draft Prevention (Heating)
G When the coil temperature rises above Tc°C, indoor fan operates in set speed. Max. 10minutes Indoor heat exch. coil temp. (°C) Indoor fan Set speed OFF or Standby lamp Release of cold draft prevention NOTE The operation temperature shown as Tc in the chart differ by models. DSAV92R5TAA DSAV122R5TAA 33°C 34°C... -
Page 18: Defrosting Operation (Heating)
3 hours temperature of indoor heat exchanger coil, immediately before thermo goes off, is below Td+5,6°C, etc NOTE: The values shown as Td differs according to the models DSAV92R5TAA DSAV122R5TAA 38°C 44°C Reverse-cycle defrosting operation compressor... -
Page 19: Drain Pump And Float Switch
I Defrosting Mode Timing Chart Release of defrosting Start of defrosting 60 seconds Max. 8 to 12 minutes 60 seconds Compressor Outdoor fan 4 or 8 seconds 2 seconds Solenoid coil (4 – way valve) Indoor fan Set speed Set speed Standby lamp Indoor heat exch. -
Page 20: Troubleshooting
6. TROUBLESHOOTING 5-1. 6-1. Check before and after troubleshooting WARNING Hazardous voltage can cause ELECTRIC SHOCK or DEATH. Disconnect power or turn off circuit breaker before you start checking or servicing. 5-1-1. 6-1-1. Check power supply wiring. G Check that power supply wires are correctly connected to terminals L and N on the terminal plate in the indoor unit. - Page 21 B. Circuit breaker trips in several minutes after turning the air conditioner on. G There is a possibility of short circuit. • Check capacity of circuit breaker. Replace with suitable one (larger capacity). Capacity of circuit breaker is suitable. In case of Heating operation : Measure resistance of outdoor fan •...
- Page 22 C. Check remote control unit. • Try to run with another remote control unit. First remote control unit is defective. • Check for residue buildup on Clean transmitter. transmitter of remote control unit. • Check for residue buildup on remote control receiver on front of indoor Clean receiver.
- Page 23 5-2-3. 6-2-3. Only outdoor unit does not run. A. Check setting temperature. COOL HEAT Is room temperature too low ? Is room temperature too high ? Try to lower setting temperature by Try to raise setting temperature by temperature setting button ( button).
-
Page 24: Some Part Of Air Conditioner Does Not Operate
5-3. Some part of air conditioner does not operate. 5-3-1. Only indoor fan does not run. • Check fan casing Remove foreign foreign matter on matter or repair. Fan cannot inside. be turned. • Check fan rotation. Turn fan gently once or twice by hand. - Page 25 5-3-3. Only compressor does not run Check compressor motor Overload relay is working capacitor C1 (either OLR T or OLR A) Measure resistance of Temperature of compressor compressor motor winding is abnormally high Refrigerant gas shortage Charge refrigerant gas Measure power supply voltage Rotor may be locked up The voltage is too low 5-3-4.
-
Page 26: Air Conditioner Operates, But Abnormalities Are Observed
5-4. Air conditioner operates, but abnormalities are observed 5-4-1. Operation does not switch from HEAT to COOL (or COOL to HEAT) Remote control unit Receiver in lamp ass'y may be defective may be defective Measure resistance of 4-way valve's winding (20S) COOL to HEAT Check voltage between terminals Outdoor PCB ass'y is defective... - Page 27 5-4-2. 6-4-2. Poor cooling or heating. • Check position of remote control unit. Change position of remote • Cool or warm air from air conditioner control unit. reaches position directly. • Wide and narrow tubes between Insulate both wide and narrow indoor unit and outdoor unit are tubes separately and then insulated.
-
Page 28: If A Sensor Is Defective
5-5. If a sensor is defective. 5-5-1. Thermistor (TH1 or TH2) is defective. • Operation lamp on front side of • Indoor coil thermistor (TH1 ) or room indoor unit is blinking. (*) air thermistor (TH2 ) is defective. • Replace the thermistor. Alarm Signal (*) NOTE Operation lamp on the front side of the indoor unit will blink when either indoor coil thermistor or room... -
Page 29: Checking Electrical Components
6. CHECKING ELECTRICAL COMPONENTS 6-1 Measurement of Insulation power plug (Local supply) Resistance Ground The insulation is in good condition if the resistance exceeds 2MΩ probe Insulation tester NOTE 6-1-1. Power supply wires The shape of the power plug may differ from that of the air conditioner which you are servicing. -
Page 30: Checking Continuity Of Fuse On Pcb Ass'y
6-2 Checking Continuity of Fuse on PCB Ass'y Fuse Remove the PCB Ass'y from the electrical component box. Then pull out the fuse from the PCB Ass'y. (fig.5) PCB Ass’y Check for continuity using a multimeter as shown in fig.6 Fig. -
Page 31: Maintenance
7. MAINTENANCE 7-1 Changing Address of Remote Control Unit in Indoor Unit If you are installing more than 1 indoor unit (up to 2) in the same room, it is necessary for you to assign each unit its own address, so each can be operated by its own separate remote control unit. You assign the addresses by matching the remocon address on the PCB of each indoor unit with the switch positions of its remote control unit. - Page 32 R.D. 28 Reyrieux BP 131 - 01601 Trévoux CEDEX France Tél. 04.74.00.92.92 - Fax 04.74.00.42.00 R.C.S. Bourg-en-Bresse B 759 200 728...
