MS-7037 M-ATX Mainboard
OnChip IDE Device

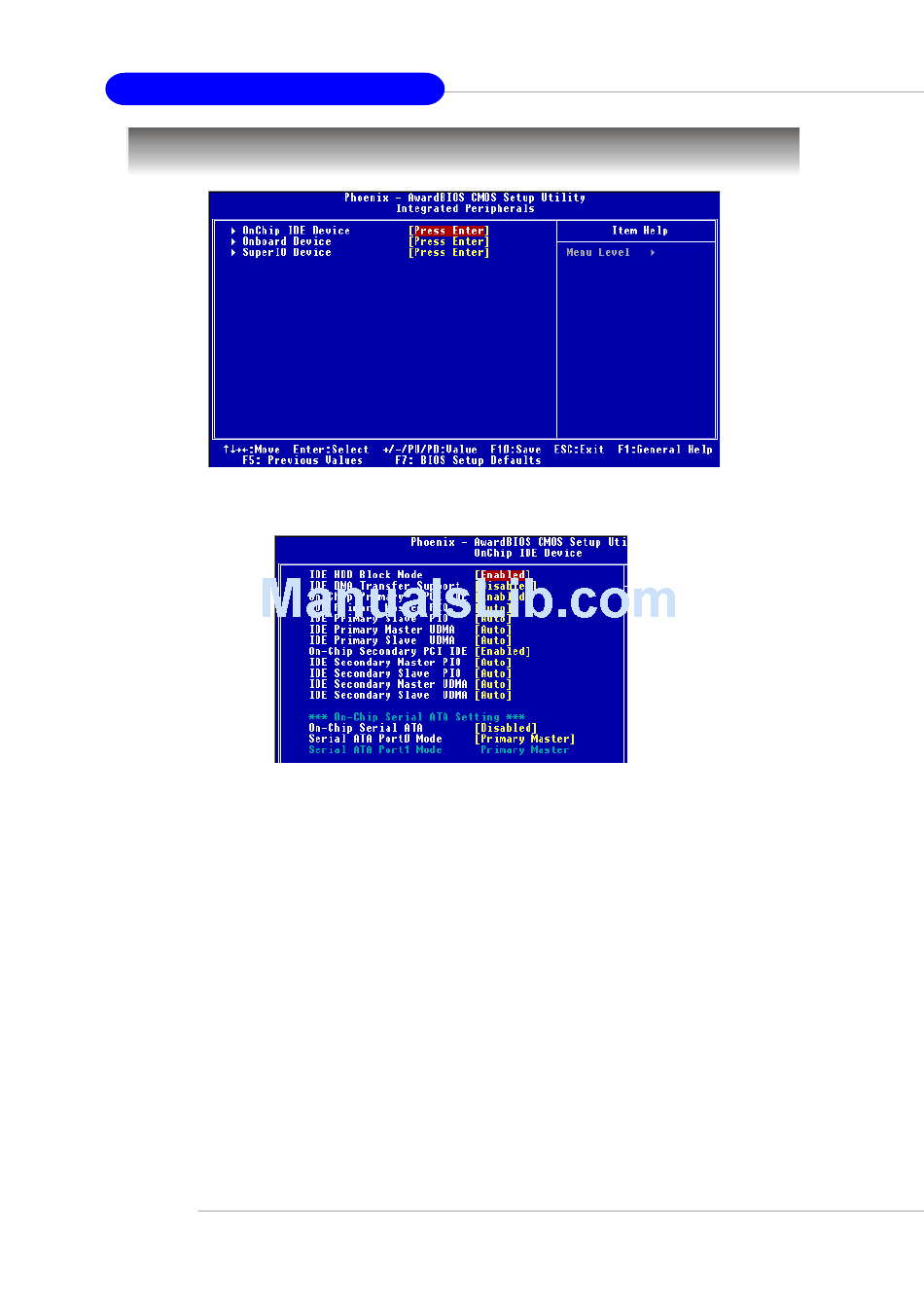

Press <Enter> to enter the sub-menu and the following screen appears:
IDE HDD Block Mode
Block mode is also called block transfer, multiple commands, or multiple sector
read/write. If your IDE hard drive supports block mode (most new drives do),
select [Enabled] for automatic detection of the optimal number of block read/
writes per sector the drive can support. Setting options: [Enabled], [Disabled].
IDE DMA Transfer Support
This item is used to enable or disable the DMA transfer function of the IDE Hard
Drive. Setting options: [Enabled], [Disabled].
On-Chip Primary/Secondary PCI IDE
The integrated peripheral controller contains an IDE interface with support for
two IDE channels. Choose [Enabled] to activate each channel separately.
Settings: [Enabled], [Disabled].
IDE Primary/Secondary Master/Slave PIO
The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4)
for each of the four IDE devices that the onboard IDE interface supports. [Modes
0] through [Mode 4] provide successively increased performance. In [Auto]
3-14
