Samsung SCZ-2370 - High Resolution 37x Zoom Camera Quick SetUp Guide

Overview

Overview

  1. Key Buttons:
    • Following buttons control zoom, focus and auto focus functions.
      • WIDE button: To widen the view. (ZOOM OUT)
      • TELE button: To close in on a far object. (ZOOM IN)
      • F-NEAR button: To see a near object clearly.
      • F-FAR button: To see a far object clearly.
    • Pressing the 'SET' button locks the zoom control function of these buttons and prompts the main setup menu.
    • Main setup menu can be navigated using these buttons.
      • SET: To access the main setup menu.
      • UP (TELE button): To move the arrow indicator to up.
      • DOWN (WIDE button): To move the arrow indicator to down.
      • LEFT (F-NEAR button): To move the arrow indicator to left.
      • RIGHT (F-FAR button): To move the arrow indicator to right.
  2. Power Input Terminal: Power supply terminal (DC Type: DC 12V ±10%/ DUAL Type: DC 12V±10%, AC 24V±10%).
  3. Power LED: Illuminates when power is supplied.
  4. Video Output Jack: Used to connect an external video monitor in jack.
  5. RJ-45 JACK: Terminals, such as RS-485 communications, MD OUT, ZOOM and FOCUS, EX_DN are included.
NO. Name Cable color Description
1 ZOOM ORANGE -
2 FOCUS WHITE/ORANGE
3 COM GREEN
4 MD OUT WHITE/GREEN
5 GND BLUE -
6 EX DN WHITE/BLUE External D/N
7 485+ BROWN RS-485 communication
8 485- WHITE/BROWN RS-485 communication

Setup

  1. Press the SET button for 2 seconds. (Short-pressing the button activates the AUTO FOCUS).
    • Main setup menu is displayed on the monitor screen.
  2. Select the desired feature using the UP or DOWN button.
    • Each pressing of the UP or DOWN button moves the indicator to the next or previous feature.
    • Move the arrow indicator to the desired feature item.
  3. Change the status of the selected feature using the LEFT or RIGHT button.
  4. When completed, move the arrow indicator to 'EXIT' and press the SET button.

Notes

  • Features marked with a right angled arrow have an accessible submenu.
  • Access the submenu by pressing the SET button.

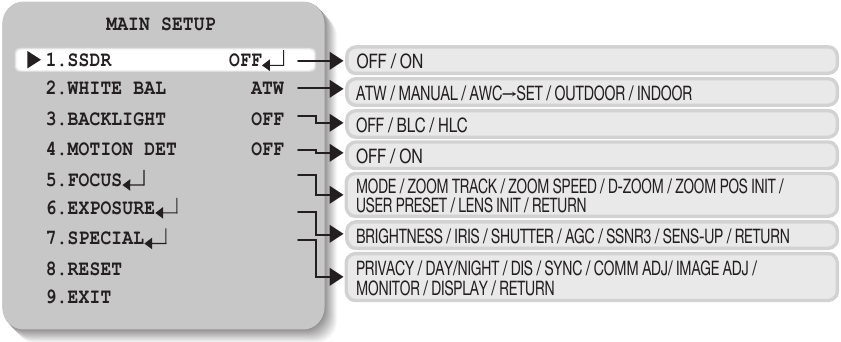

Main Setup
