Overview
![Samsung - Techwin SCB-5000 - Overview - Part 1 Overview - Part 1]()

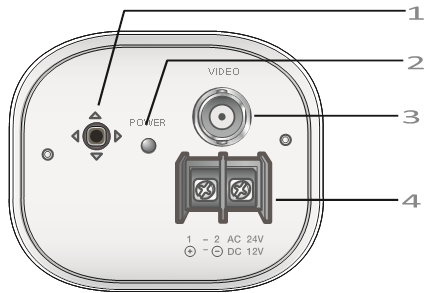

<SCB-5000 (AC24V/DC12V)>
![Samsung - Techwin SCB-5000 - Overview - Part 2 Overview - Part 2]()

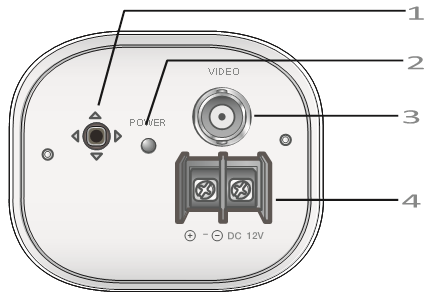

<SCB-5000D (DC12V)>
- Function Setup switch: Display the menu on the screen and move the cursor to four directions to confirm status or changing a selected item.
- Power LED: This lamp is lit when the camera is receiving power normally.
- Video OUT Terminal: Sends video signal and connects to the video input terminal of the monitor.
- Power input terminal: Connects to the power appropriate to each model.
Main Setup
![Samsung - Techwin SCB-5000 - Main setup Main setup]()
