Horizontal Tail Installation

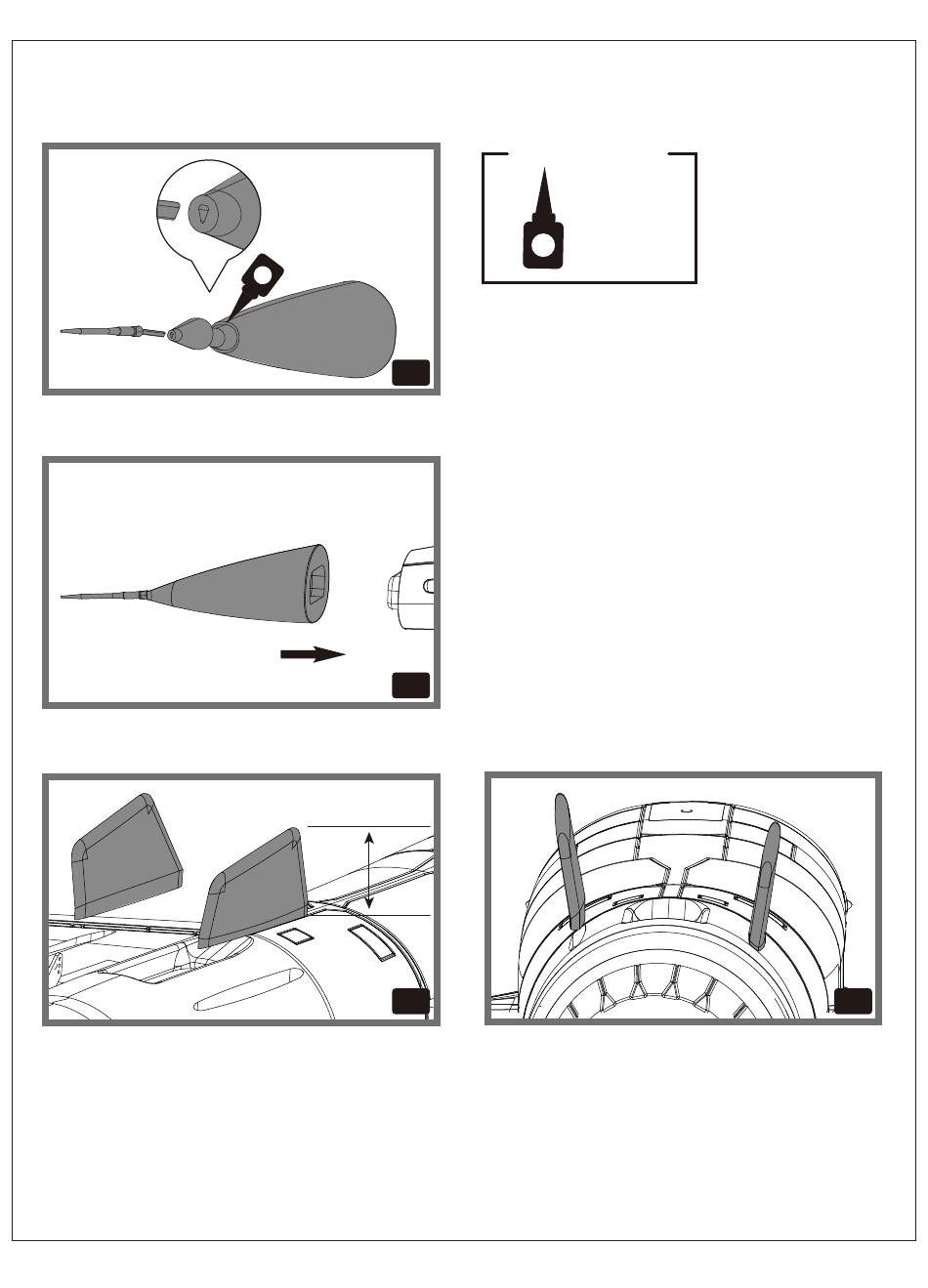

1. Glue the air speed head on the nose cone. Ensure the air speed head and nose cone are in perfect
alignment (fig1).
2. Apply the nose cone to the front fuselage as diagram shows. Ensure the nose cone is on the correct side
(fig2).
3. Install the fins into place with glue, the higher side towards the front of the plane (fig3).
Note: the fin will angle towards the outboard of the plane as picture shows (fig4).
fig1
fig2
fig2
HIGHER
fig3
5
Required Adhesives:
Medium CA
fig4
