- Page 1 SM-10 SM-20-A Sound Level Meters Users Manual For detailed specifications and ordering info go to www.TestEquipmentDepot.com...
- Page 2 SM-10 / SM-20-A Sound Level Meters Users Manual SM10_Rev002 © 2009 Amprobe Test Tools. All rights reserved.
- Page 3 Limited Warranty and Limitation of Liability Your Amprobe product will be free from defects in material and workmanship for 1 year from the date of purchase. This warranty does not cover fuses, disposable batteries or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.

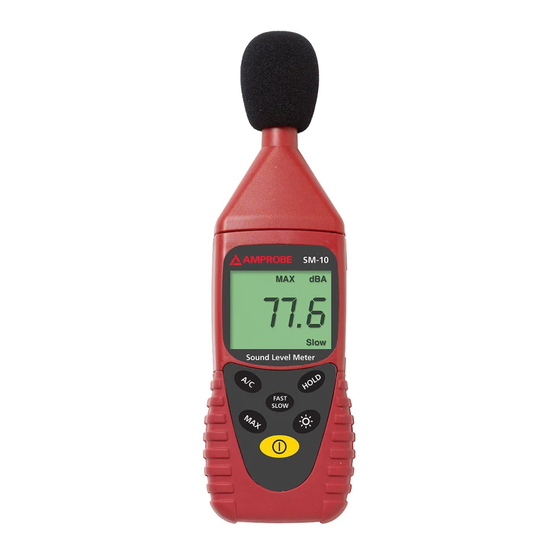

- Page 4 HOLD MAX dBA HOLD MAX dBA Fast Slow Fast Slow FAST FAST SLOW SLOW SM-10 SM-20-A ➊ windscreen ➋ Microphone ➌ LCd display ➍ frequency weighting select button ➎ Maximum/Minimum hold button ➏ power button ➐ Backlight button ➑ Time weighting select button ➒...
-
Page 5: Table Of Contents
SM-10 / SM-20-A Sound Level Meters CoNtENtS Symbols ......................... 5 Unpacking and inspection ................... 5 introduction ......................5 operation ......................5 MAx/Min ......................6 hoLd ....................... 6 Backlight ......................6 Record (SM-20-A only) ................... 6 Calibration procedures .................. 6 Specifications ......................7 Maintenance and Repair .................. -
Page 6: Symbols
SLow mode. UNPACkINg ANd INSPECtIoN Your shipping carton should include: SM-10 / 20-A sound level meter 9 volt battery download Suite Cd-RoM (SM-20-A) USB Cable (SM-20-A) -
Page 7: Max/Min
hold the instrument comfortably in hand or fix on tripod and point the microphone at the suspected noise source, the sound pressure level will be displayed. MAX/MIN The MAx Min feature reads and updates the display to show the maximum or minimum average value measured after you press the MAx Min button. -
Page 8: Specifications
when LCd blinked, release the A/C and the hoLd buttons. The sound level meter will display 94.0 dBA . The calibration is done. The 94 dB calibration process can be repeated until the meter reads 94.0 dB. Recalibration cycle: 1 year. SPECIfICAtIoNS general display:... -
Page 9: Maintenance And Repair
Turn off the meter and slide out the battery cover. Replace the battery with a nedA type 1604 or equivalent 9V alkaline battery. Replace the cover. Remove battery when the SM-10/SM-20-A is not used for extended period. OPEN Battery Replacement...
