This user's guide describes the characteristics, operation, and use of the evaluation module (EVM) for the
INA826. The EVM is designed to evaluate the performance of the device in both single and dual-supply
configurations. This document also includes the schematic, printed circuit board (PCB) layouts, and a
complete bill of materials (BOM). Throughout this document the terms evaluation board, evaluation
module, and EVM are synonymous with the INA826EVM.
1
...................................................................................................................
2
3
....................................................................................................................
4
5
6
1
INA826EVM Schematic Side
2

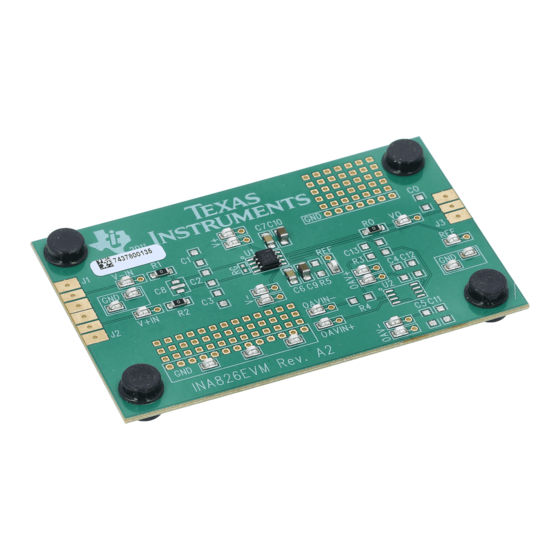

INA826EVM Component Side
3
INA826EVM: Dual-Supply Configuration
4
INA826EVM: Single-Supply Configuration, Direct REF Connection
5
INA826EVM: Single-Supply Configuration, Buffered REF Connection
6
INA826EVM Schematic
X2Y is a registered trademark of X2Y Attenuators, LLC.
All other trademarks are the property of their respective owners.
SBOU115C - August 2011 - Revised March 2012
Submit Documentation Feedback
.................................................................................................
...........................................................................................................
..............................................................................................................
List of Figures
..............................................................................................
.............................................................................................
.................................................................................
....................................................................................................
Copyright © 2011-2012, Texas Instruments Incorporated
SBOU115C - August 2011 - Revised March 2012
Contents
.......................................................................
.................................................
..............................................
User's Guide
INA826EVM
2
4
7
8
9
9
2
3
4
5
6
8
1
INA826EVM
Advertisement
Related Manuals for Texas Instruments INA826EVM
Summary of Contents for Texas Instruments INA826EVM
-
Page 1: Table Of Contents
INA826. The EVM is designed to evaluate the performance of the device in both single and dual-supply configurations. This document also includes the schematic, printed circuit board (PCB) layouts, and a complete bill of materials (BOM). Throughout this document the terms evaluation board, evaluation module, and EVM are synonymous with the INA826EVM. Contents .................... -
Page 2: Introduction And Overview
36 V and draws a maximum quiescent current of 250 µA. The device is available in MSOP-8, SO-8, and DFN-8 packages. INA826EVM The INA826EVM is intended to provide basic functional evaluation of the INA826. It provides the following features: •... - Page 3 Introduction and Overview www.ti.com Figure 2. INA826EVM Component Side SBOU115C – August 2011 – Revised March 2012 INA826EVM Submit Documentation Feedback Copyright © 2011–2012, Texas Instruments Incorporated...
-
Page 4: Quick Start
Quick Start www.ti.com Quick Start The procedures presented in this section describe how to quickly set up and use the INA826EVM for evaluation in dual-supply and single-supply configurations. Dual Supply Make the following connections to set up the INA826EVM for dual-supply operation. - Page 5 Quick Start www.ti.com Single Supply Make the following connections to set up the INA826EVM for single-supply operation with a direct connection for the reference voltage. 1. +5 V to V+ test point 2. GND to V– test point 3. +2.5 V to REF test point 4.
- Page 6 Quick Start www.ti.com Make the following connections to set up the INA826EVM for single-supply operation with a buffered reference voltage. This example uses an OPA376 as the buffer operational amplifier. Depending on the application, alternate single-supply buffer operational amplifiers include the OPA330 and OPA378.
-
Page 7: Evm Components
EVM Components www.ti.com EVM Components This section summarizes the INA826EVM components. Power Power is applied to the INA826 with test points V+ and V–. For the unpopulated device (U2), power is applied using test points OAV+ and OAV–. Inputs Inputs are applied to the INA826 using test points V+IN and V–IN. Alternately, they can be applied by populating the input SMA connectors (J1 and J2). -
Page 8: Schematic
U2. C8 is available for the use of an X2Y capacitor. ® Schematic Schematic Figure 6 shows the schematic for the INA826EVM PCB. 0.1 F 10 F V–IN INA826 –IN 0 Ω... -
Page 9: Bill Of Materials
The following documents provide information regarding Texas Instruments' integrated circuits and support tools for the INA826EVM. This user's guide is available from the TI web site under literature number SBOU115. Any letter appended to the literature number corresponds to the document revision that is current at the time of the writing of this document. - Page 10 Evaluation Board/Kit Important Notice Texas Instruments (TI) provides the enclosed product(s) under the following conditions: This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATION PURPOSES ONLY and is not considered by TI to be a finished end-product fit for general consumer use. Persons handling the product(s) must have electronics training and observe good engineering practice standards.
- Page 11 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete.
