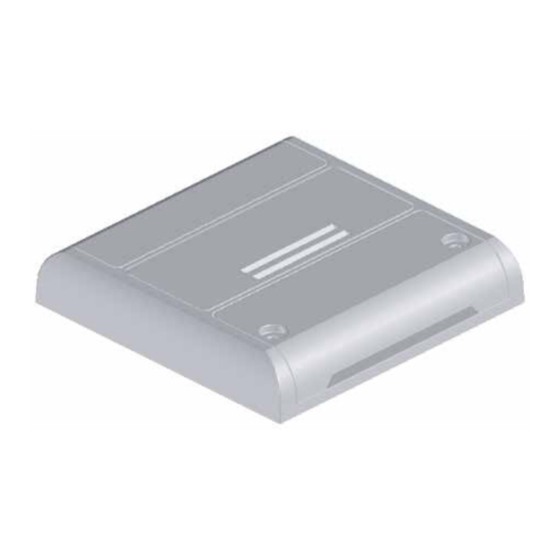

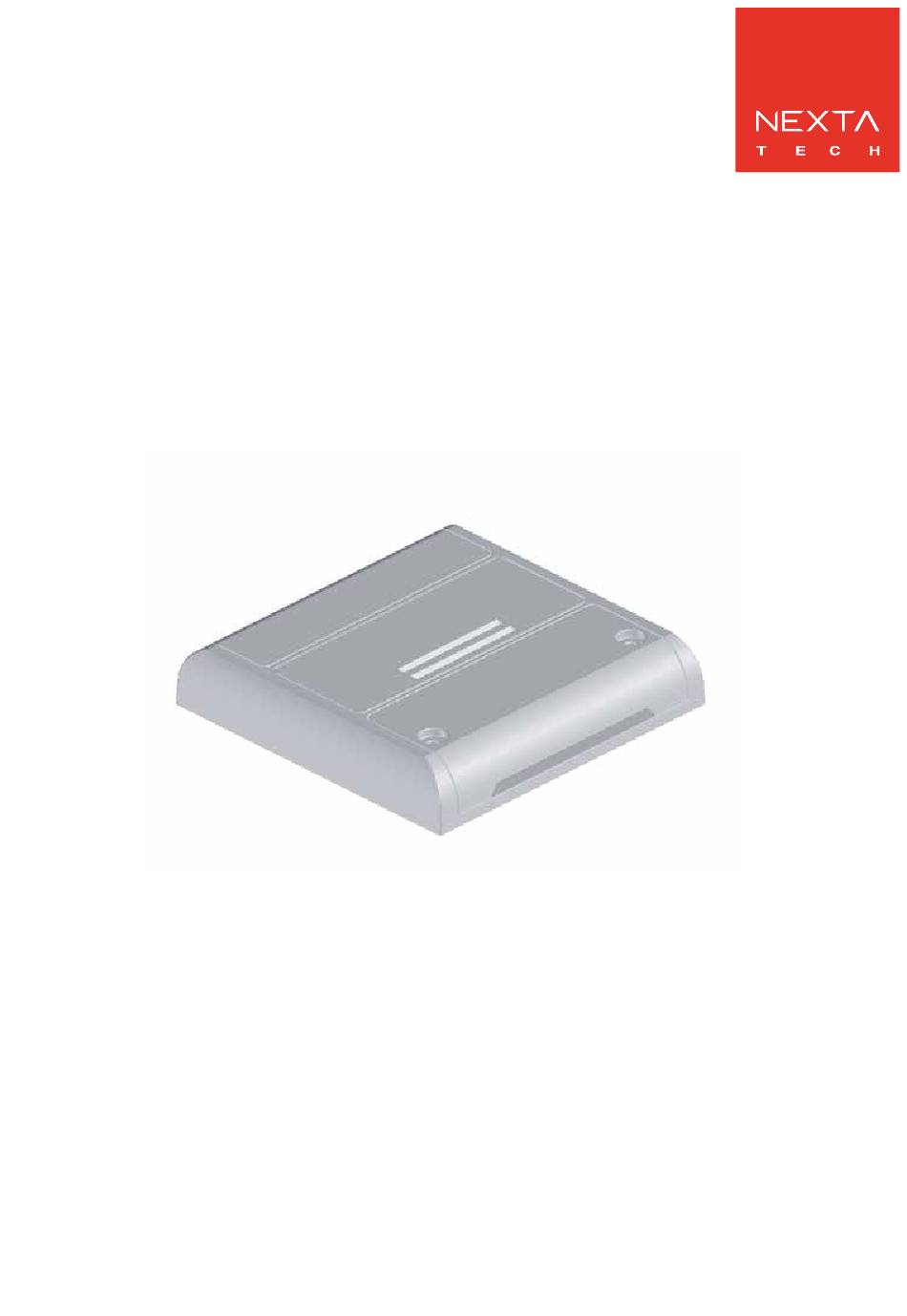

- Page 1 PLANO-V5/RGBW Control unit with dimmer function for single colour LEDs with voltage, 12-24 VDC, max 3A for channel (max 5A total). RX radio 433.92 MHz.
- Page 2 1 - PRODUCT FEATURES TECHNICAL DATA Power supply 12-24 Vdc Output Max load total 3A for channel. Max load total 5 A Type of load RGB or RGBW LED with constant voltage N° of programmable transmitters Radio frequency 433.920mhz ISM Protection rating IP20 Operating temperature...
- Page 3 2 - ELECTRICAL CONNECTIONS * if you connect RGBW led is necessary to make the “SETTING TYPE OF LOAD CONNECTED” procedure...
- Page 4 3 - RADIO PROGRAMMING This procedure lets you programme compatible multifunctional or generic transmitters. MULTIFUNCTIONAL TRANSMITTERS CODES: HB70-SLCT, HB70-SPCT, HB80-1C, HB80-1DIM, HB80-2L, HB80-30D, HB80-30RGBW, HB80-4C, HB80-4DIM, HB80-4L, HB90-6LT, ROUND-1SP, SENSA-M, SENSA-P, SENSA-R35M, SENSA-R35P, SENSA-R35T, SENSA-T, TOUCH-1, TOUCH-1CCT, TOUCH-1DIM, TOUCH-1SP, TOUCH-1L , TOUCH-1RGBW, TOUCH-3C, TOUCH-4DIM, TOUCH-CFU With multifunctional transmitters the transmitter control modes depend on the model used.
- Page 5 4 - DELETION OF RADIO These procedures let you delete from the memory transmitters that have already been programmed. PROCEDURE STEP 1 Hold the receiver button 1 down (about 8 seconds.) until LED FLASEHES the LED begins to flash. PROLONGED PRESS (about 5 seconds) DELETION OF DELETION OF ALL...
- Page 6 5 - SETTING THE TIMED ON This process is used to set the time for which the Leds stays on before an automatic switch off. NOTE: don’t use this process with HB70-SLCT, HB70-SPCT and TOUCH-1SP, the controller already has a procedure to setting the automatic switch off of the light.
- Page 7 6 - SELECTION OF TYPE OF LOAD CONNECTED Default: RGB mode This procedure is used to set up the type of control of load. The three types are: 1 - RGB: in this case to create white light the control unit will use the three output channels "R", “G” and “B” 2 - RGBW modo 1: in this case to create white light the control unit will use the output channel "W"...
- Page 8 Within 10 seconds, make a short press of MAKE A SHORT PRESS “hidden” button. The LED 1 flashes quickly and turns off. THE LED FLASH QUICLY Nexta Tech company brand of Team srl via G.Oberdan 90, 33074 Fontanafredda (PN) - Italy Ph. +39 0434 998682 Email: info@nexta-tech.com...
