Manual version: APW100-20220530
H3C LSXM1SEERBA2 High Performance Compute
1 Identifier
The card identifier LSXM1SEERBA2 is in the right of the front panel.
2 About the module
The LSXM1SEERBA2 is a high performance compute engine module preinstalled with a Linux
operating system. It is a high performance computing platform that is deeply converged with
networking features and provides high-performance CPUs as well as a large storage space. The
module can meet the requirements of small to medium-sized enterprises for lightweight deployment
of big data applications.

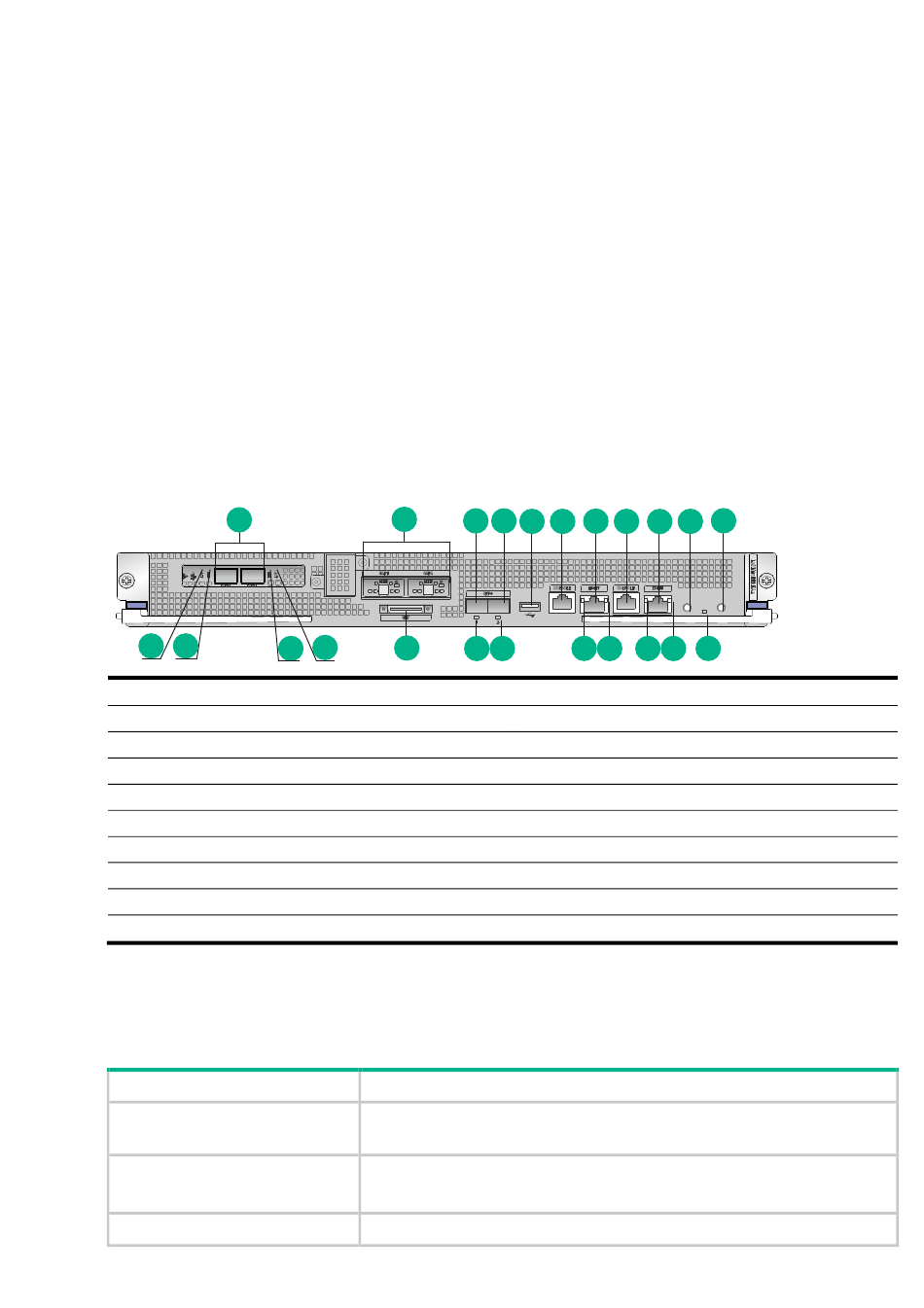

Figure 1 LSXM1SEERBA2 front panel
18
19
(1) SFP+ fiber ports (3 in total)
(3) HDM shared network port
(5) Console port
(7) HDM dedicated network port
(9) Power on/standby button and system power LED
(11) HDM dedicated network port LED (ACT)
(13) Management Ethernet port LED (ACT)
(15) HDM shared network port LED
(17) SUV port (using an SUV connector)
(19) SFP+ fiber port LEDs (LINK)
3 Specifications
Table 1 Module specifications
Item
Drive
Memory
Dimensions (H × W × D)
Engine Module
2
1
18
17
19
Specifications
•
2 × 960GB system solid-state drives (SSD)
•
2 × 1TB data SSDs
24 memory slots
Standard configuration: 256 GB (8 × 32 GB memory bars)
50 × 433 × 520 mm (1.97 × 17.05 × 20.47 in)
1
3
4
5
6
5
16
15
14
13
(2) Data drive ports (SSD0 and SSD1)
(4) USB 3.0 port
(6) Management Ethernet port
(8) UID button/LED
(10) Health LED
(12) HDM dedicated network port LED (LINK)
(14) Management Ethernet port LED (LINK)
(16) SFP+ fiber port LED
(18) SFP+ fiber port LEDs (ACT)
i
BOM: 3123A2AL
7
8
9
12
11
10
Advertisement
Table of Contents
Related Manuals for H3C LSXM1SEERBA2
Summary of Contents for H3C LSXM1SEERBA2
- Page 1 The card identifier LSXM1SEERBA2 is in the right of the front panel. 2 About the module The LSXM1SEERBA2 is a high performance compute engine module preinstalled with a Linux operating system. It is a high performance computing platform that is deeply converged with networking features and provides high-performance CPUs as well as a large storage space.
- Page 2 Manual version: APW100-20220530 BOM: 3123A2AL Item Specifications Power consumption 170 to 385 W SSD hot swapping Not supported • 3 × 10GBASE-R-SFP+ fiber ports • 1 × 10GBASE-R-SFP+ HDM shared network port (used for Ethernet connection or HDM access) • 2 ×...
- Page 3 Manual version: APW100-20220530 BOM: 3123A2AL 4 LEDs Table 3 LED description Status Description LINK A link is present on the port and the port is receiving or Steady on Flashing sending data. SFP+ fiber port LEDs (LINK and ACT) A link is present on the port but the port is not receiving Steady on or sending data.
- Page 4 Manual version: APW100-20220530 BOM: 3123A2AL 5 Installing and removing the module CAUTION: • Wear a reliably grounded ESD wrist strap or ESD gloves when installing and removing the module. • Do not touch the components on the module. Installing the module Wear an ESD wrist strap, and make sure it makes good skin contact and is reliably grounded.
- Page 5 6 Software upgrade For information about upgrading software, see the release notes for the module. Copyright © 2022 New H3C Technologies Co., Ltd. The information in this document is subject to change without notice.
