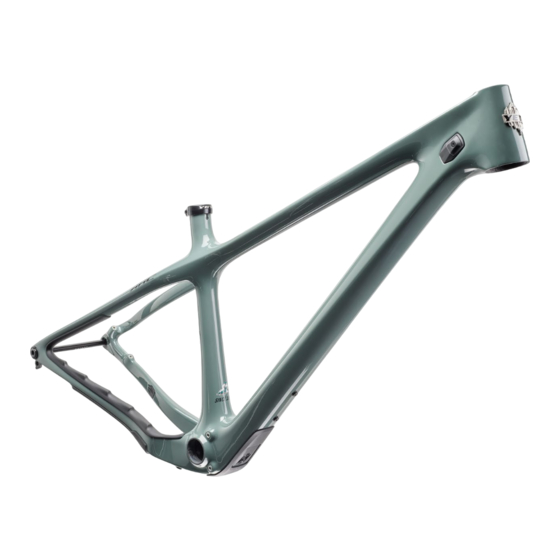

YETI ARC
OWNER'S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Yeti ARC

Summary of Contents for Yeti ARC

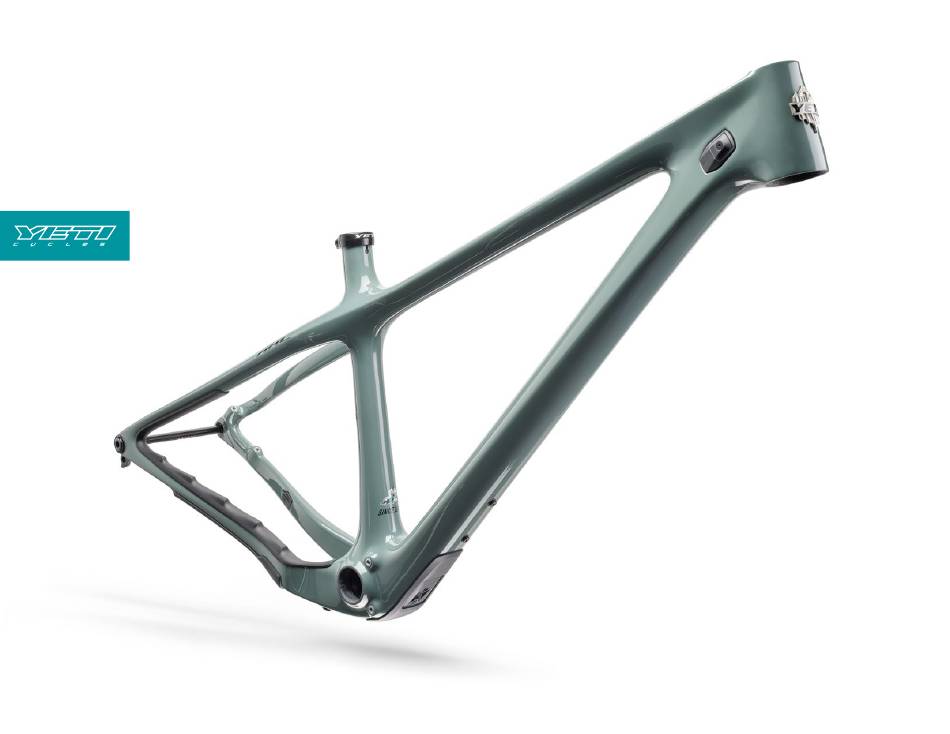

  • Page 1 YETI ARC OWNER’S MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS OWNER’S MANUAL OVERVIEW FRAME FEATURES ARC GEOMETRY FRAME STANDARDS MAINTENANCE FRAME ASSEMBLY DROPPER POST INSERTION GUIDE EXPLODED VIEW REBUILD KITS FREQUENTLY ASKED QUESTIONS LIFETIME WARRANTY CONTACT INFORMATION...

  • Page 3: Overview

    Whether you are a beginner cyclist, or a seasoned pro, your Yeti bicycle will provide endless hours of two-wheeled fun. This model specific manual is designed to be used in conjunction with the general Yeti Owner’s Manual and the manuals supplied by the suspension manufacturers. If you did not receive the Yeti Owner’s Manual or the manual provided by the suspension manufacturer,...

  • Page 4: Frame Features

    HIGH MODULUS CARBON FIBER MAIN FRAME The ARC does away with the front derailleur mount, making it a 1x drive specific frame. INTERNALLY MOLDED CARBON TUBES FOR HASSLE-FREE CABLE ROUTING AND A QUIET BIKE Configurable routing ports that provide a clean look to your frame when you ditch the INTEGRATED 2-BOLT ISCG-05 MOUNTS cables and go wireless.

  • Page 5: Arc Geometry

    GEOMETRY ARC OWNER’S MANUAL 1 3 0 M M F O R K S E AT T U B E L E N G T H E F F. T O P T U B E L E N G T H H E A D T U B E A N G L E ˚...

  • Page 6: Frame Standards

    FRAME STANDARDS OWNER’S MANUAL R E A R T R A V E L W H E E L S I Z E 29” F R A M E S I Z E SM, MD, LG, XL B O T T O M B R A C K E T PF92 R E A R W H E E L 148MM X 12MM (BOOST)

  • Page 7: Maintenance

    It is important to remember that service intervals can specifications for individual parts on the ARC are listed below, as well as in the step by step vary depending on climate, trail conditions and riding frequency. Servicing your bike requires assembly instructions later in the manual.

  • Page 8: Frame Assembly

    The instructions denote whether to use a Loctite compound or grease. Reference Exploded View for assembly part locations listed in parentheses. WARNING: Service on Yeti bicycles requires special knowledge and tools. Yeti Cycles recommends that all service and repairs be performed by an authorized Yeti Dealer.
  • Page 9 OWNER’S MANUAL Install the Down Tube Port Cover (2.14) into the Install the Chainstay Cable Port Cover (2.7) to Install Universal Hanger (2.4) into frame. Do not Note that different Port Clamps may be used for frame with a Flat Head M4 x 16L screw (2.16). the non-drive side chainstay port and secure use grease.

  • Page 10: Dropper Post Insertion Guide

    There is a possibility saddle height could fall outside of this range. A small percentage of customers might find they require a shorter or longer post given their saddle height. If you have any questions, please contact Yeti or your local bike shop. *Subtract 34mm for a cabled dropper to accommodate housing bend angle.

  • Page 11: Exploded View

    EXPLODED VIEW OWNER’S MANUAL 3.29 3.34 EXTRA ITEMS SUPPLIED IN KIT 3.24 3.28 3.36 3.30 3.37 3.24 3.22 3.15 3.29 3.16 3.13 3.20 3.19 3.19 3.20 3.21 3.33 3.14 3.18 3.21 3.17 3.25 3.31 3.24 3.26 3.35 3.27 3.27 3.27 3.31 3.25 3.23...
  • Page 12 HARDTAIL ASSEMBLY PARTS 300030148 WASHER 5.1 X 8.9 X 1.0 MM 300030010 SHCS, M5 X 0.8, 16L 300060078 ASSEMBLY, YETI SEAT CLAMP, BOLT ON, 31.6 300060080 SRAM UNIVERSAL HANGER 300030173 SCREW, FH, M4 X 0.7, 10L 300040518 COVER-CABLE PORT, SINGLE, RIGHT EXIT...

  • Page 13: Rebuild Kits

    REBUILD KITS OWNER’S MANUAL PART # DESCRIPTION 200020368 ARC MASTER REBUILD KIT 300030173 CAP SCREW, FH, M4 x 0.7, 10L 300030174 CAP SCREW, FH, M4 x 0.7, 16L 300030177 CAP SCREW, FH, M4 x 0.7, 25L 300040514 CLAMP, DT CABLE PORT...

  • Page 14: Frequently Asked Questions

    HOW BIG OF A TIRE CAN I FIT ON THE ARC? Confused? Ask your local dealer or call us 303.278.6909. The short answer is the ARC can accept up to a 2.6” tire. There is great tire clearance on the ARC DOES THE ARC HAVE ISCG MOUNTS? but tire sizes vary widely by manufacturers, so it is hard to give a number that works for all brands.

  • Page 15: Lifetime Warranty

    Yeti Cycles is not responsible for any damages to you or others arising from riding, transporting or other use of your bicycle. In the event that your frame breaks or malfunctions, YETI Cycles shall have no liability or obligation beyond the repair or replacement of your frame pursuant to the terms outlined in the warranty.
