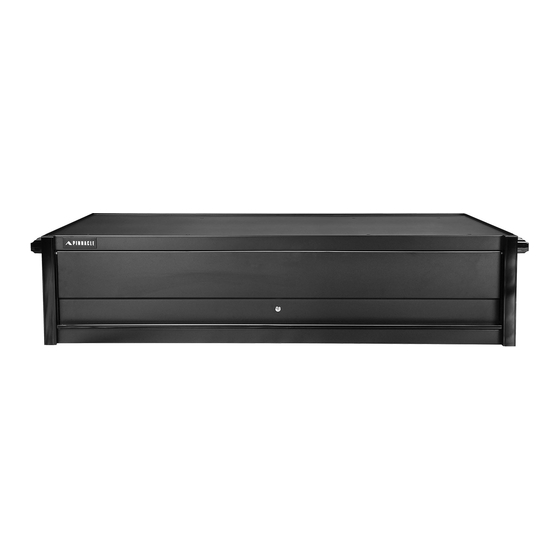

- Page 1 73” WORKCENTRE USER INSTRUCTIONS: Model Number: GOS206 HEIGHT WIDTH DEPTH 615mm 1855mm 635mm 10,400 SQUARE CM 594,000 CUBIC CM SURFACE STORAGE AREA CAPACITY 1.5mm 2 X POWER DOUBLE WALL KEY LOCKABLE METAL HANDLES STEEL FRAME ENTRY HOLES *Must be used with 76” Stainless Steel Top (GOS205)
-
Page 2: Important Safety Instructions
14. To reduce the risk of injury, never overload the drawers. Refer to loading instructions. 15. To reduce the risk of electric shock or fire, never overload receptacles. Refer to markings for the proper load on receptacles. CONNECT WITH US! PINNACLE.NET.AU... -
Page 3: Parts List
PARTS LIST: Handle M8-10 x 40mm Screw M8 x 65mm Handle Bolt Lock Bar Protector Trim End Cap M8-10 x 10mm Screw Pinnacle Badge Lock Bar Protector Door Trim M6 x 16mm Bolt Lock Gas Strut Bolt Lock Bar Shaf Ring... -
Page 4: Maintenance And Servicing
ASSEMBLY INSTRUCTIONS: 1. Bolt handles to each end of the housing using the two M8 handle bolts for each handle. MAINTENANCE AND SERVICING: To prevent serious injury from tool failure: Do not use damaged equipment. If any part becomes damaged, have the problem corrected before further use. To prevent serious injury from electric shock: Disconnect the power cord from the cabinet before maintenance and servicing. -
Page 5: Warranty Conditions
The warranty covers domestic use only and does not apply to commercial applications. This warranty is given by Pinnacle Hardware, ABN 87 614 496 196, 45-49 Whitfield Boulevard, Cranbourne West VIC 3977, 1800 349 776, Email: support@pinnacle.net.au.
