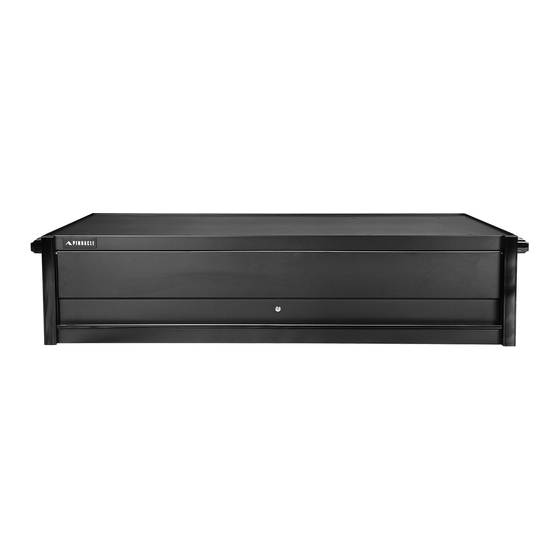

- Page 1 73” OVERHEAD CABINET USER INSTRUCTIONS: Model Number: GOS207 HEIGHT WIDTH DEPTH 460mm 1855mm 635mm 2 X GAS STRUTS 394,700 CUBIC CM STORAGE CAPACITY 1.5mm 2 X POWER DOUBLE WALL KEY LOCKABLE METAL HANDLES ENTRY HOLES STEEL FRAME...
- Page 2 14. To reduce the risk of injury, never overload the drawers. Refer to loading instructions. 15. To reduce the risk of electric shock or fire, never overload receptacles. Refer to markings for the proper load on receptacles. CONNECT WITH US! PINNACLE.NET.AU...
- Page 3 PARTS LIST: Handle Lock M8 x 65mm Handle Bolt Lock Bar Trim End Cap Cushion Rubber Pinnacle Badge Gas Strut M8 x 20mm Bolt Gas Strut Bolt Vertical Trim Gas Strut Bolt Door Wiring Grommet Door Trim ASSEMBLY INSTRUCTIONS: 1. Bolt handles to each end of the housing using the two M8 handle bolts for each handle.
- Page 4 The warranty covers domestic use only and does not apply to commercial applications. This warranty is given by Pinnacle Hardware, ABN 87 614 496 196, 45-49 Whitfield Boulevard, Cranbourne West VIC 3977, 1800 349 776, Email: support@pinnacle.net.au.
