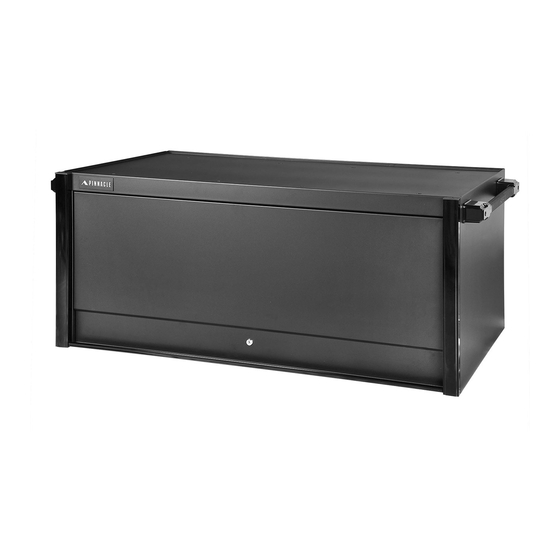

- Page 1 56” WORKCENTRE USER INSTRUCTIONS: Model Number: GOS202 HEIGHT WIDTH DEPTH 615mm 1420mm 635mm 7800 SQUARE CM 414,000 CUBIC CM SURFACE STORAGE AREA CAPACITY 1.5mm 2 X POWER DOUBLE WALL KEY LOCKABLE METAL HANDLES STEEL FRAME ENTRY HOLES *Must be used with 56” Stainless Steel Top (GOS201)
-
Page 2: Important Safety Instructions
14. To reduce the risk of injury, never overload the drawers. Refer to loading instructions. 15. To reduce the risk of electric shock or fire, never overload receptacles. Refer to markings for the proper load on receptacles. CONNECT WITH US! PINNACLE.NET.AU... -
Page 3: Parts List
PARTS LIST: Handle M8-10 x 10mm Screw M8 x 65mm Handle Bolt Lock Bar Protector Trim End Cap M6 x 16mm Bolt Pinnacle Badge Gas Strut Bolt Door Trim Shaf Ring Plastic Washer Lock Slide Sleeve 1 Gas Strut Bolt... -
Page 4: Maintenance And Servicing
ASSEMBLY INSTRUCTIONS: 1. Bolt handles to each end of the housing using the two M8 handle bolts for each handle. MAINTENANCE AND SERVICING: To prevent serious injury from tool failure: Do not use damaged equipment. If any part becomes damaged, have the problem corrected before further use. To prevent serious injury from electric shock: Disconnect the power cord from the cabinet before maintenance and servicing. -
Page 5: Warranty Conditions
The warranty covers domestic use only and does not apply to commercial applications. This warranty is given by Pinnacle Hardware, ABN 87 614 496 196, 45-49 Whitfield Boulevard, Cranbourne West VIC 3977, 1800 349 776, Email: support@pinnacle.net.au.
