Summary of Contents for Pinnacle PRO Series

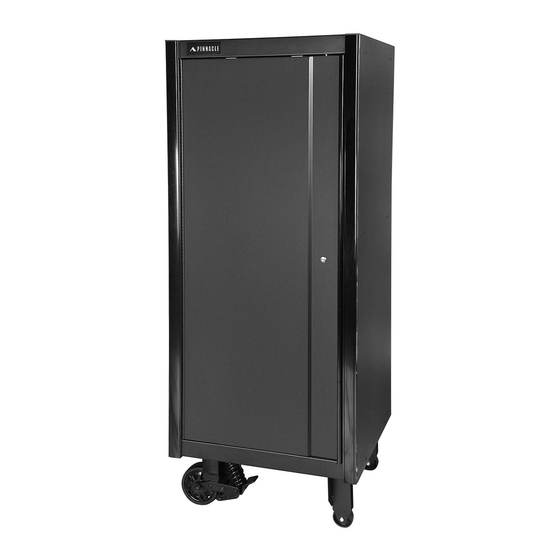

- Page 1 4 DRAWER TALL CABINET USER INSTRUCTIONS: Model Number: GOS209 HEIGHT WIDTH DEPTH 1795mm 710mm 635mm 4 DRAWERS / 3 SHELVES 431,000 CUBIC CM STORAGE CAPACITY 1.5mm VENTILATED 2 X POWER DOUBLE WALL KEY LOCKABLE BACK PANEL ENTRY HOLES STEEL FRAME...
- Page 2 14. To reduce the risk of injury, never overload the drawers. Refer to loading instructions. 15. To reduce the risk of electric shock or fire, never overload receptacles. Refer to markings for the proper load on receptacles. CONNECT WITH US! PINNACLE.NET.AU...
- Page 3 PARTS LIST: Trim End Cap Lock Bar Pinnacle Badge Pegboard Screwdriver Holder Locking Swivel Castor Drawer M10 x 30mm Castor Bolt Set Drawer Liner Drawer Slider Drawer Handle 4 pairs M8 x 25mm Bolt Top/Middle Shelf Lock Top/Middle Lef Drawer Slider...
- Page 4 RECONFIGURING DRAWERS: 1. Drawers of the same height and width can be 3. After removing the drawers, check where the rearranged. slides are positioned on them. All sliders on each drawer must be fully supported by drawer sliders. WARNING! To prevent serious injury or death 4.
- Page 5 The warranty covers domestic use only and does not apply to commercial applications. This warranty is given by Pinnacle Hardware, ABN 87 614 496 196, 45-49 Whitfield Boulevard, Cranbourne West VIC 3977, 1800 349 776, Email: support@pinnacle.net.au.
