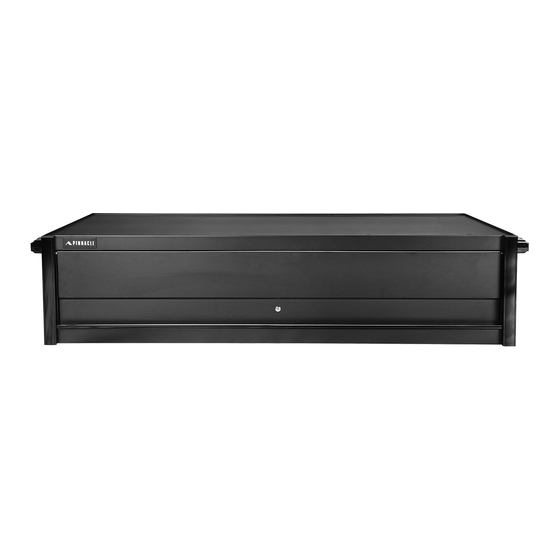

- Page 1 56” OVERHEAD CABINET USER INSTRUCTIONS: Model Number: GOS203 HEIGHT WIDTH DEPTH 460mm 1420mm 635mm 2 X GAS STRUTS 297,400 CUBIC CM STORAGE CAPACITY 1.5mm 2 X POWER DOUBLE WALL KEY LOCKABLE METAL HANDLES ENTRY HOLES STEEL FRAME...
- Page 2 14. To reduce the risk of injury, never overload the drawers. Refer to loading instructions. 15. To reduce the risk of electric shock or fire, never overload receptacles. Refer to markings for the proper load on receptacles. CONNECT WITH US! PINNACLE.NET.AU...
- Page 3 PARTS LIST: Handle Cushion Rubber M8 x 65mm Handle Bolt Gas Strut Bolt Trim End Cap Gas Strut Bolt Pinnacle Badge Wiring Grommet Door Trim Door M8 x 20mm Bolt Lock Bar Vertical Trim Gas Strut Lock ASSEMBLY INSTRUCTIONS: 1. Bolt handles to each end of the housing using the two M8 handle bolts for each handle.
- Page 4 The warranty covers domestic use only and does not apply to commercial applications. This warranty is given by Pinnacle Hardware, ABN 87 614 496 196, 45-49 Whitfield Boulevard, Cranbourne West VIC 3977, 1800 349 776, Email: support@pinnacle.net.au.
