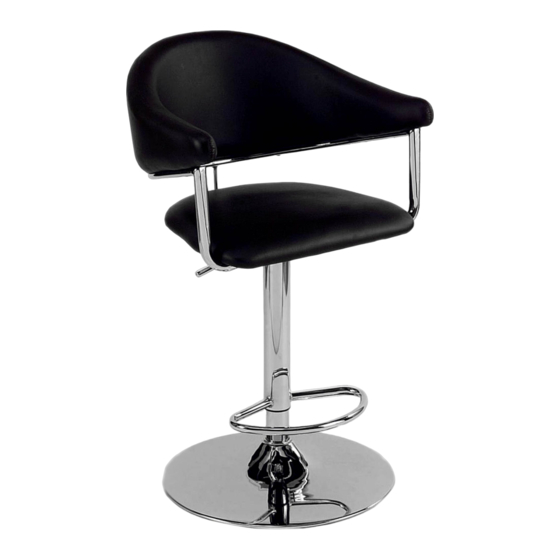

Bar Stool
Black
Brown
White
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Page 1
LOT NUMBER:
DATE PURCHASED: /
/
Advertisement
Table of Contents
Related Manuals for Whalen Furniture Airstream MAL-70BK
Summary of Contents for Whalen Furniture Airstream MAL-70BK
- Page 1 LOT NUMBER: DATE PURCHASED: / Bar Stool Black Brown White ADULT ASSEMBLY REQUIRED If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where it was purchased. Please call our toll-free customer service number and have your instructions and parts list ready to provide the model name, part name or factory number: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
- Page 2 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Seat (1) B- Pole with Footrest (1) C- Gas Lift (1) D- Base (1) (1) 5/8” Bolt (4+1 extra) 5 mm Allen Wrench (1) Tools required: Allen Wrench (provided).
- Page 3 Assembly Instructions 1. Remove all the parts from carton and divide them into part groups as indicated in the parts list. 2. Pick up the Gas Lift (C) and insert the thick end into the center hole of the Base (D). Remove the top cover from the Gas Lift for the following step.
- Page 4 Assembly Instructions 3. Position the Seat (A) upside down on the carton or other support surface with the threaded inserts facing up. Align the top plate of the Pole with Footrest (B) with the threaded inserts on the Seat (A). Ensure the Footrest is pointing towards the front of the Seat.
- Page 5 Assembly Instructions 4. Slide the Pole with Footrest (B) onto the top of Gas Lift (C) and press down until the stool locks in place. Page 5...
- Page 6 INFORMATION FOR USE 1. This is one type of tool for commercial or home use. Please use it only on smooth, even flooring. 2. The height of the seat can be raised up or down by adjusting the right side handle of the mechanism. 3.
- Page 7 IF YOU NEED TO ORDER ANY REPLACEMENT PARTS, PLEASE USE THE LIST BELOW Bar Stool Seat Pole with Footrest Gas Lift Base Protective Liner (underneath the base) Complete Hardware 1-5/8B 5/8" Bolt 2-AW Allen Wrench Seat Pole with Footrest Gas Lift Base Protective Liner (underneath the base) Complete Hardware...
