Summary of Contents for MPMan MP-F72

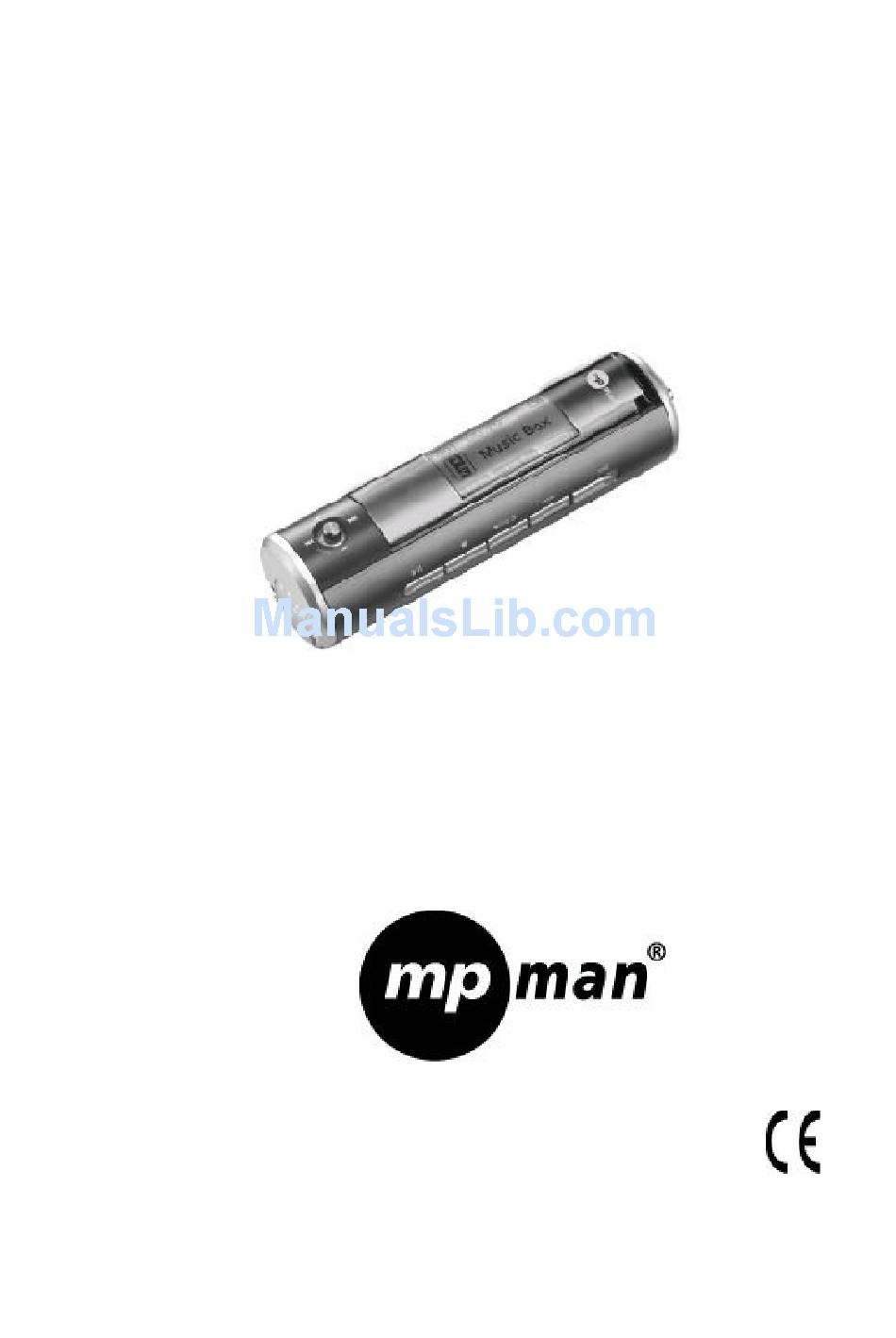

- Page 1 MP-F72 Instruction manual...
-
Page 2: Table Of Contents
Table of Contents Key Features Position Function Keys III. LCD Windows Operation Installing the "DIGITAL AUDIO PLAYER" CD software Getting Started III. To Begin Listening Listening 1. MUSIC PLAYER 2. NAVIGATION 3. FM RADIO 4. VOICE RECORDER Useful Features Safe Removal Procedure VII. -
Page 3: Key Features
Key Features Digital Audio Player - Supports MP3 and WMA. - Supports WAV format (ADPCM Encoding) USB interface for upload and download files (USB 1.1) Firmware Upgradeable - Provides the latest updated features via free downloads from our website and upgradeable to other digital music format if available. lFull Graphic LCD for displaying information with blue backlight. -
Page 4: Function Keys
Key Features Part I Position NAVI Button Control Keys Part II Function Keys Play / Pause button < Stop button Increase volume / move up button. Decrease volume / move down button Backward / Rewind button Forward / Next button HOLD Hold button NAVI... -
Page 5: Operation
Operation Part I. Installing the "DIGITAL AUDIO PLAYER" CD software in your computer For Windows 98SE: The USB mass storage function will not be activated without driver installation. To activate the USB mass storage function, please use the installation CD-Rom to install the driver. For Windows ME, Windows 2000 or Windows XP: Windows can detect Audio player without installing the CD software automatically after... - Page 6 Follow the on screen instruction to install the player driver. Install the player driver under the preset directory. Warning: DO NOT change the preset installation path. Otherwise, the player driver cannot run properly. When installation is completed, to the folder of programs. the new program will be added...
-
Page 7: To Begin Listening
Part III. To begin listening Insert the earphone plug into earphone jack of player and press button. Press MODE button once and MAIN MENU (MUSIC PLAYER, NAVIGATION, FM RADIO, VOICE RECORDER ) on the LCD screen You can press : or 9 button to scroll different modes of "MUSIC PLAYER"... - Page 8 EQ button Press and hold EQ button while playing music to display the current EQ, the current [EQ] icon will change the background color. Then press EQ button again to select the six EQ modes [NORM, ROCK, UBASS, JAZZ, CLASS, POP ] icon. The program will quit the EQ mode if no consecutive key pressed Repeat Button Press the...
-
Page 9: Navigation
2. NAVIGATION You may search file, delete file and program the playlist in "NAVIGATION" mode. Press MODE button to select the "NAVIGATION" and press NAVI button to confirm. Alternatively, you can simply press NAVI button to enter function of "NAVIGATION" during "MUSIC PLAYER" mode The LCD displays the music files in folders and files Scroll up + to move up in the list and scroll down - to move down in the list... -
Page 10: Fm Radio
3. FM RADIO You may set the whole FM radio band, listen to the radio or record file of FM radio program; please go to FM Radio mode. Press MODE button to select the FM RADIO and press NAVI button to confirm. - Page 11 Manual preset FM band If the [PRESET] icon is on, then press PRESET button to remove it. Push : to increase FM frequency. The unit will start Fast Forward Scan function if you push and hold : for a longer time. The unit will stop when next FM station is detected Push 9 to decrease FM frequency.
-
Page 12: Voice Recorder
4.VOICE RECORDER You may record and listen the voice file in VOICE RECORDER mode. Press MODE button to select the VOICE RECORDER mode and press NAVI button to confirm Voice recording - Press the /EQ/ -Press the button to stop recording. -The recorded file is saved as WAV format in the VOICE folder. -
Page 13: Useful Features
Part V. Useful Features Setting Mode Press and hold the MODE button, the Setting Mode Menu will be shown on LCD. Push 9 or : to select different setting options (PLAYLIST, REC RESOLUTION, CONTRAST, EQUALIZER, PLAY TIMER, LIGHT TIMER) Press NAVI b utton to confirm. Scroll up + or scroll down - to change the setting, except for CONTRAST which needs to push : or 9 to change the setting. -
Page 14: Safe Removal Procedure
Part VI. Safe Removal Procedure Double click the "Safe Removal" icon; the "Unplug or Eject Hardware" window will pop up. You can select the device you want to remove. Then, click the "Stop" button. Press OK to confirm devices to be stopped. Then unplug the USB cable on the Digital Audio Player. -
Page 15: Additional Information
Part VII. Additional Information Installing Battery Slide and open the battery compartment door Insert the battery with correct polarity. Close the battery compartment door Remarks: To avoid battery leakage or corrosion, remove the battery from the player if the player is not to be used for a long time. Remove dead battery from the player immediately to avoid damaging the player. -
Page 16: Precautions
Precautions Copyright Distributing copies of MP3 tracks without permission is a violation of the international copyright laws. Safety Vibration experienced during walking or exercising will not affect the player. However, dropping the player or dropping a heavy object on the player may result in damage or sound distortion. -
Page 17: Troubleshooting
4. Trouble Shooting Should any problem persist after you have checked these symptoms. Symptom Possible Reason No Power Check whether the battery is exhausted. Check whether the battery had been inserted properly. No Sound from Check whether the jack is earphones detached from the unit Check whether VOLUME is... -
Page 18: Technical Specifications
III. Technical Specifications Category Item Audio File Support FM Tuner FM Frequency range Firmware Upgradeable Yes (Except Win98SE) Operating Temperature -5 ℃ ∼ 40 ℃ Specification Frequency Range 20Hz - 20KHz Headphone Output 20mW, 16ohm (Max.Vol) S/N Ratio 85dB (MP3) File Type MPEG 1/2/2.5 Layer 3, WMA, Bit Rate... -
Page 19: Care And Maintenance
6. Care and Maintenance Your Digital Audio Player is a precision electronic device, and should not be subjected to rough handling or exposed to extreme temperatures or moisture. Do not use chemical agents or liquids to clean the unit, as they may damage the plastic.
