D
DCN20371
C
DCN-643
O
EDN-506
NO
EDN/DCN
106-03-003
取 扱 説 明 書
INSTRUCTION MANUAL
5861

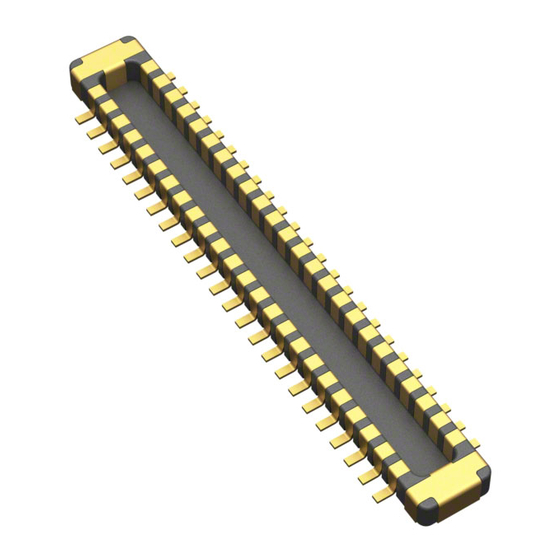

0.35mm Pitch Board-to-Board Connector
2020/04/07
K. Azuma
2017/06/29
K. Shiobara
2015/10/27
K. Hirata
DATE
PREPARED by
�� 2020 KYOCERA Corporation
Series
H. Watanabe
CHECKED by
No. : 205-03-300
A. Tsunemura
K. Yamane
K. Yamane
APPROVED by
Advertisement
Table of Contents
Related Manuals for Kyocera 5861 Series
Summary of Contents for Kyocera 5861 Series
- Page 1 INSTRUCTION MANUAL 5861 Series 0.35mm Pitch Board-to-Board Connector DCN20371 2020/04/07 K. Azuma H. Watanabe A. Tsunemura DCN-643 2017/06/29 K. Shiobara K. Yamane EDN-506 2015/10/27 K. Hirata K. Yamane EDN/DCN DATE PREPARED by CHECKED by APPROVED by �� 2020 KYOCERA Corporation 106-03-003...
-
Page 2: Table Of Contents
3-7. プリント基板およびメタルマスク開口部推奨寸法に関して PCB AND RECOMMENDED DIMENSIONS OF THE OPENING AREA IN THE METAL MASK ·· 10 3-8. 推奨吸着ノズル寸法に関して RECOMMENDED DIMENSIONS OF THE PICK-UP NOZZLE ······························ 13 5861 SERIES INSTRUCTION MANUAL No. 205-03-300 �� 2020 KYOCERA Corporatio n 106-03-004 PAGE 1/13... -
Page 3: 概要 Outline
2-1. 部品名称 PART NAMES (1) プラグ Plug インシュレータ Insulator アンカープレート Anchor Plate コンタクト コンタクト Contact Contact (2) リセプタクル Receptacle インシュレータ Insulator アンカープレート Anchor Plate コンタクト Contact 5861 SERIES INSTRUCTION MANUAL No. 205-03-300 �� 2020 KYOCERA Corporatio n 106-03-004 PAGE 2/13... -
Page 4: 型番 Model Numbers
Rec. : 24 5861 XXX 004 829 + 24 : Rec. シリーズ番号 Series Number 極数 Number of Pos. バリエーション Variation めっきコード Plating Code 鉛フリー Lead Free 5861 SERIES INSTRUCTION MANUAL No. 205-03-300 �� 2020 KYOCERA Corporatio n 106-03-004 PAGE 3/13... -
Page 5: 取り扱い上の注意 Precautions In Handling
押さえ Retaining Force スペーサー Spacer 5861 SERIES INSTRUCTION MANUAL No. 205-03-300 �� 2020 KYOCERA Corporatio n 106-03-004 PAGE 4/13... -
Page 6: 基板対Ｆｐｃ嵌合での使用に関して Using For Board-To-Fpc Connection
When such possibility as the product may fall，receive any impact or reaction force from being thrashed is expected，and then it is recommended to fix them in the direction of engagement． 5861 SERIES INSTRUCTION MANUAL No. 205-03-300 �� 2020 KYOCERA Corporatio n... -
Page 7: 実装に関して Mounting
When the mounting condition differs from those of our profile in any way，please make sure that you do not observe any deformity nor color change with the mounted connector beforehand． 5861 SERIES INSTRUCTION MANUAL No. 205-03-300 �� 2020 KYOCERA Corporatio n... - Page 8 (9) 実装後、テール上面にはんだ濡れ広がりのない場合がありますが、製品性能に影響はありません。 There is no influence in the product performance though the tail surface doesn't get wet with solder after mounting. 5861 SERIES INSTRUCTION MANUAL No. 205-03-300 �� 2020 KYOCERA Corporatio n 106-03-004 PAGE 7/13...
-
Page 9: 嵌合に関して Engagement
PCB/FPC thickness. Please make sure beforehand when you apply the uneven pressure to the long side of the connector. 長手方向 （△） 短手方向 （×） 5861 SERIES INSTRUCTION MANUAL No. 205-03-300 �� 2020 KYOCERA Corporatio n 106-03-004... -
Page 10: チェッカーに関して Checker
Please contact us when you request our specified plug or receptacle for the checker. 3-6. 活線挿抜関して HOT SWAP 本製品に電流を流した状態での挿抜は、なさらないよう御願い致します。 Insertion and separation under live current shall not be done. 5861 SERIES INSTRUCTION MANUAL No. 205-03-300 �� 2020 KYOCERA Corporatio n 106-03-004 PAGE 9/13... -
Page 11: プリント基板およびメタルマスク開口部推奨寸法に関して
As dimensions shown in the drawings are our recommendations. Please feel free to contact us if you have any questions and／or concerns about these dimensions. 5861 SERIES INSTRUCTION MANUAL No. 205-03-300 �� 2020 KYOCERA Corporatio n... - Page 12 Recommended Pad & Stencil size （SIGNAL CONTACT） PLUG REC. 0.18mm 0.18mm Stencil 0.18mm 0.18mm ｔ＝0.12mm 0.18mm Stencil 0.18mm ｔ＝0.1mm 5861 SERIES INSTRUCTION MANUAL No. 205-03-300 �� 2020 KYOCERA Corporatio n 106-03-004 PAGE 11/13...
- Page 13 Recommended Pad & Stencil size （ANCHOR PLATE） PLUG REC.(SPAN) REC.(PITCH) 0.3mm 0.35m 0.3mm 0.35mm 0.3mm Stencil 0.35mm 0.21mm ｔ＝0.12mm 0.315mm 0.4mm(15.8mil) 0.25mm 0.3mm 0.35mm Stencil ｔ＝0.1mm 0.35mm SIGNAL REC. MOUNTING LAYOUT PITCH 5861 SERIES INSTRUCTION MANUAL No. 205-03-300 �� 2020 KYOCERA Corporatio n 106-03-004 PAGE 12/13...
-
Page 14: 推奨吸着ノズル寸法に関して
RECOMMENDED DIMENSIONS OF THE PICK-UP NOZZLE 推奨吸着ノズル寸法は以下の通りです。 The following is the recommended dimensions of the pick-up nozzle. コネクタが基板上に有る際の最大加圧荷重 ： 20N Maximum pressure when the connector is placed on a PCB: 20N 5861 SERIES INSTRUCTION MANUAL No. 205-03-300 �� 2020 KYOCERA Corporatio n 106-03-004 PAGE 13/13...
