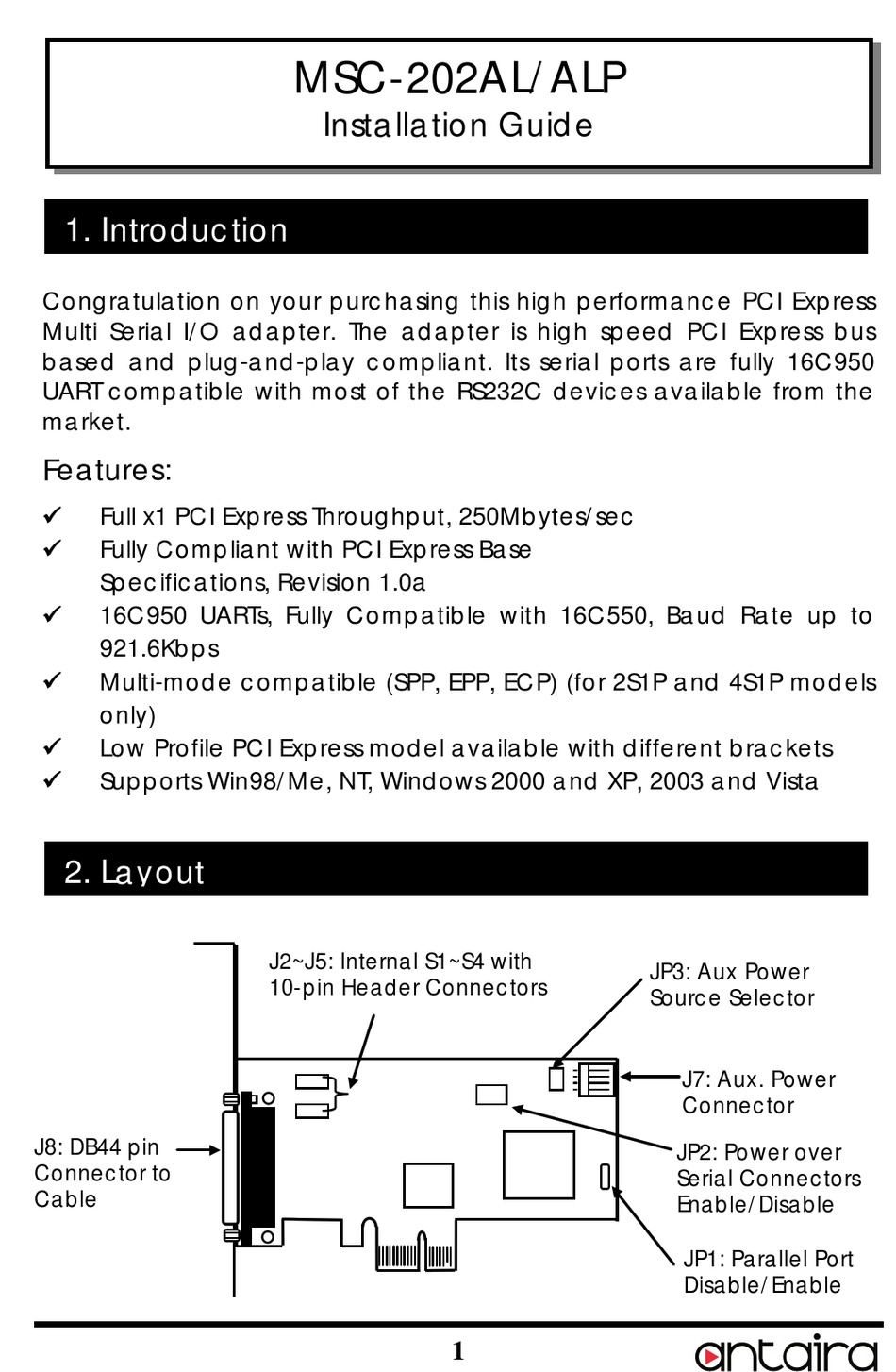

1. Introduction
Congratulation on your purchasing this high performance PCI Express
Multi Serial I/O adapter. The adapter is high speed PCI Express bus
based and plug-and-play compliant. Its serial ports are fully 16C950
UART compatible with most of the RS232C devices available from the
market.
Features:
Full x1 PCI Express Throughput, 250Mbytes/sec
Fully Compliant with PCI Express Base
Specifications, Revision 1.0a
16C950 UARTs, Fully Compatible with 16C550, Baud Rate up to
921.6Kbps
Multi-mode compatible (SPP, EPP, ECP) (for 2S1P and 4S1P models
only)
Low Profile PCI Express model available with different brackets
Supports Win98/Me, NT, Windows 2000 and XP, 2003 and Vista
2. Layout
J8: DB44 pin
Connector to
Cable
MSC-202AL/ALP
Installation Guide
J2~J5: Internal S1~S4 with
10-pin Header Connectors
1
JP3: Aux Power
Source Selector
J7: Aux. Power
Connector
JP2: Power over
Serial Connectors
Enable/Disable
JP1: Parallel Port
Disable/Enable
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ANTAIRA MSC-202ALP
Summary of Contents for ANTAIRA MSC-202ALP
- Page 1 MSC-202AL/ALP Installation Guide 1. Introduction Congratulation on your purchasing this high performance PCI Express Multi Serial I/O adapter. The adapter is high speed PCI Express bus based and plug-and-play compliant. Its serial ports are fully 16C950 UART compatible with most of the RS232C devices available from the market.
- Page 2 PCI Express Multi Serial I/O Card JP3 External Power Selector (Pin 9) Settings Power source is +5VDC, from J7 AUX power connector. AUX5V AUX12V PCI12V Power source is +12VDC, from J7 AUX power connector. AUX5V AUX12V PCI12V Power source is +12VDC, from PCI Express golden finger (motherboard’s AUX5V AUX12V...
- Page 3 PCI Express Multi Serial I/O Adapter 3. Installing the PCI Express I/O Card Turn the system power OFF before installation! Use static electricity discharge precautions. Remove the chassis cover from your computer Locate an unused PCI Express slot (typically white and smaller) and remove the corresponding slot cover from computer chassis.
- Page 4 PCI Express Multi Serial I/O Card When the PCI Card was inserted, it will invoke Windows’ New Hardware Wizard. Click〝 Next 〞to continue, select〝 Install from a list or specific location（Advanced） 〞and click〝 Next 〞. Select 〝 Include this location in the search 〞 then click 〝 Browse 〞 to specify the driver’s location (e.g.
