FIBERME Communications LLC.

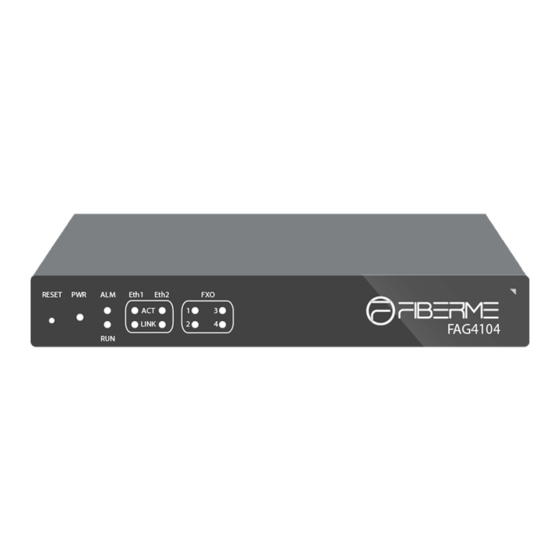

Configuring FAG410X with Yeastar P-Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FAG410X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fiberme FAG410X

Summary of Contents for Fiberme FAG410X

  • Page 1 FIBERME Communications LLC. Configuring FAG410X with Yeastar P-Series...

  • Page 2: Table Of Contents

    REGISTER FAG410X ON P550 AS AN EXTENSION ............11 Create SIP Extension on P550 ..........................11 Configure FAG410X SIP Account as a Registered Extension on P550 ............11 FAG410X CALL Routing ..................... 13 Configure IP to Tel on FAG410X .......................... 13 Configure TEL to IP on FAG410X .......................
  • Page 3 Figure 3: Configure Outbound Rule on P550 ......................6 Figure 4: Configure Inbound Rule on P550 ....................... 7 Figure 5: Connect FAG410X with P550: Registrar IP Address ................8 Figure 6: Connect FAG410X with P550: Register Gateway ................... 9 Figure 7: Configure FXO Port on FAG410X: Modify Port ..................9 Figure 8: Configure FXO Port on FAG410X: Port Configurations .................

  • Page 4: Overview

    FAG4104 as well. This is typically applied to the scenario where users would like to add a FAG410X not only as a remote extension but also as an external PSTN trunk. There are two ways to set up the P550 IP PBX with the FAG410X.

  • Page 5: Connect P550 To Fag410X Using Peer Sip Trunk

    CONNECT P550 TO FAG410X USING PEER SIP TRUNK Create IVR On P550 On the P550 web GUI, create an IVR extension under Call Features->IVR. In IVR settings, if "Dial Extensions" is enabled, the calls dialing into the P550 IVR will be able to reach the internal extensions registered to the P550.

  • Page 6: Create Peer Sip Trunk On P550

    Create Peer SIP TRUNK On P550 On the P550 web GUI, create a peer SIP trunk under Extension and Trunk ->Trunk. In this example, the FAG410X IP address is 192.168.99.239. Figure 2: Create Peer SIP Trunk on P550 Configure Outbound Rule on P550 On the P550web GUI, go to Call Control ->Outbound Route to create a new outbound rule.

  • Page 7: Configure Inbound Rule On P550

    On the P550 web GUI, go to Call Control -> Inbound Route to create a new inbound rule. In this example, we create the DID as 20000, which will be used in the FAG410X call forward setting. P a g e 6...

  • Page 8: Figure 4: Configure Inbound Rule On P550

    Figure 4: Configure Inbound Rule on P550 The default destination is configured to IVR. Ensure to select the proper extension for the IVR. P a g e 7...

  • Page 9: Connect Fag410X With P550

    Connect FAG410X with P550 1. On the FAG410X web GUI, go to the VoIP->SIP page and enter the IP address of the P550 that you are peering with. Figure 5: Connect FAG410X with P550: Registrar IP Address 2. Please make sure the Register Gateway option under VoIP-> SIP is set to No. In the following example, P550 has IP address 192.168.99.11.

  • Page 10: Configure Fxo Port On Fag410X

    Configure FXO Port on FAG410X 1. Connect the PSTN line to the FAG410X FXO port. On the FAG410X web GUI, go to the Port->FXO page and press Modify on the FXO port you will use. Figure 7: Configure FXO Port on FAG410X: Modify Port 20000 3.

  • Page 11: Create Port Group On Fag410X

    Create Port Group on FAG410X 1. On the FAG410X web GUI, go to the Port->Port Group page and press “Add New”. Figure 9: Create Port Group on FAG410X: Add New 2. Select the FXO port you will use. Figure 10: Create Port Group on FAG410X: Group Configurations...

  • Page 12: Register Fag410X On P550 As An Extension

    Configure FAG410X SIP Account as a Registered Extension on P550 Under FAG410X web GUI->VoIP->SIP, please set Register Gateway to Yes, then enter SIP Extension information created earlier in the P550. In this example, extension 1002 is used in order to register FAG410X as an extension user on P550.

  • Page 13: Figure 13: Fag410X Registrar Ip Address

    The blue icon indicates that FAG410X is registered on P550. Figure 14: P550 - SIP Extension Status Now FAG410X is registered at P550 as an extension device. Please refer to method 1 in the previous section to configure FXO Port settings on FAG410X.

  • Page 14: Fag410X Call Routing

    FAG410X CALL Routing Configure IP to Tel on FAG410X 1. On the FAG410X web GUI, go to the Route-> IP→TEL page, Press “Add New”. Figure 15: FAG410X – IP to TEL 2. Enter the P550 IP address in “Source IP” and select the Port Group you will use from “Call Destination”.

  • Page 15: Configure Tel To Ip On Fag410X

    Configure TEL to IP on FAG410X 1. On the FAG410X web GUI, go to the Route-> TEL→IP page, Press “Add New”. Figure 17: FAG410X – TEL to IP Select the Port Group you will use from “Source Port Group” and enter the P550 IP address in “Destination Address”.
