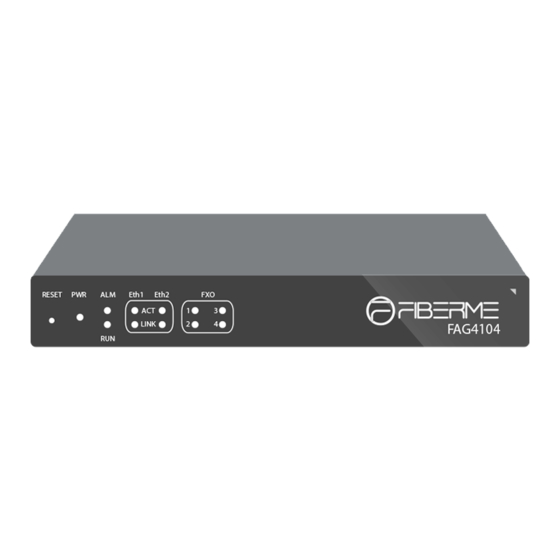

  • Page 1 FIBERME Communications LLC. Configuring FAG410X with Grandstream UCM630X...

  • Page 2: Table Of Contents

    REGISTER FAG410X ON UCM630X AS AN EXTENSION ..........10 Create SIP Extension on UCM630X ........................10 Configure FAG410X SIP Account as a Registered Extension on UCM630X ..........10 FAG410X CALL Routing ..................... 12 Configure IP to Tel on FAG410X .......................... 12 Configure TEL to IP on FAG410X .......................
  • Page 3 Figure 3: Configure Outbound Rule on the UCM630X .................... 6 Figure 4: Configure Inbound Rule on UCM630X ...................... 7 Figure 5: Connect FAG410X with UCM630X: Registrar IP Address ..............7 Figure 6: Connect FAG410X with UCM630X: Register Gateway ................8 Figure 7: Configure FXO Port on FAG410X: Modify Port ..................

  • Page 4: Overview

    FAG4108 as an example. The following methodology can be used for the FAG4104 as well. This is typically applied to the scenario where users would like to add a FAG410X not only as a remote extension but also as an external PSTN trunk.

  • Page 5: Connect Ucm630X To Fag410X Using Peer Sip Trunk

    CONNECT UCM630X TO FAG410X USING PEER SIP TRUNK Create IVR On UCM630X On the UCM630X web GUI, create an IVR extension under Call Features->IVR. In IVR settings, if "Dial Other Extensions" is enabled, the calls dialing into the UCM630X IVR will be able to reach the internal extensions registered to the UCM630X.

  • Page 6: Create Peer Sip Trunk On Ucm630X

    Create Peer SIP TRUNK On UCM630X On the UCM630X web GUI, create a peer SIP trunk under Extension/Trunk ->VOIP Trunks. In this example, the FAG410X IP address is 192.168.99.239. Figure 2: Create Peer SIP Trunk on the UCM630X Configure Outbound Rule on UCM630X On the UCM630X web GUI, go to Extension/Trunk ->Outbound Routes to create a new outbound rule.

  • Page 7: Configure Inbound Rule On Ucm630X

    On the UCM630X web GUI, go to Extension/Trunk -> Inbound Rules to create a new inbound rule. In this example, we create the DID as 20000, which will be used in the FAG410X call forward setting. P a g e 6...

  • Page 8: Connect Fag410X With Ucm630X

    The default destination is configured to IVR. Ensure to select the proper extension for the IVR. Connect FAG410X with UCM630X 1. On the FAG410X web GUI, go to the VoIP->SIP page and enter the IP address of the UCM630X that you are peering with.

  • Page 9: Configure Fxo Port On Fag410X

    Configure FXO Port on FAG410X 1. Connect the PSTN line to the FAG410X FXO port. On the FAG410X web GUI, go to the Port->FXO page and press Modify on the FXO port you will use. Figure 7: Configure FXO Port on FAG410X: Modify Port 20000 3.

  • Page 10: Create Port Group On Fag410X

    Create Port Group on FAG410X 1. On the FAG410X web GUI, go to the Port->Port Group page and press “Add New”. Figure 9: Create Port Group on FAG410X: Add New 2. Select the FXO port you will use. Figure 10: Create Port Group on FAG410X: Group Configurations...

  • Page 11: Register Fag410X On Ucm630X As An Extension

    Configure FAG410X SIP Account as a Registered Extension on UCM630X Under FAG410X web GUI->VoIP->SIP, please set Register Gateway to Yes, then enter SIP Extension information created earlier in the UCM630X. In this example, extension 1002 is used in order to register FAG410X as an extension user on UCM630X.

  • Page 12: Figure 13: Fag410X Registrar Ip Address

    The green icon indicates that FAG410X is registered on UCM630X. Figure 14: UCM630X - SIP Extension Status Now FAG410X is registered at UCM630X as an extension device. Please refer to method 1 in the previous section to configure FXO Port settings on FAG410X.

  • Page 13: Fag410X Call Routing

    FAG410X CALL Routing Configure IP to Tel on FAG410X 1. On the FAG410X web GUI, go to the Route-> IP→TEL page, Press “Add New”. Figure 15: FAG410X – IP to TEL 2. Enter the UCM630X IP address in “Source IP” and select the Port Group you will use from “Call Destination”.

  • Page 14: Configure Tel To Ip On Fag410X

    Configure TEL to IP on FAG410X 1. On the FAG410X web GUI, go to the Route-> TEL→IP page, Press “Add New”. Figure 17: FAG410X – TEL to IP Select the Port Group you will use from “Source Port Group” and enter the UCM630X IP address in “Destination Address”.
