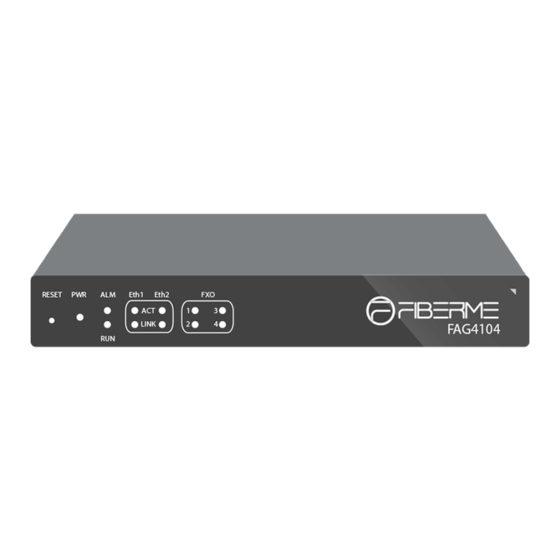

Fiberme FAG410X Manual
  1. Manuals
  2. Brands
  3. Fiberme Manuals
  4. Gateway
  5. FAG410X
  6. Manual

Fiberme FAG410X Manual

Hide thumbs Also See for FAG410X:
Table of Contents

Advertisement

Quick Links

Download this manual
FIBERME Communications LLC.
Configuring FAG410X with Elastix

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FAG410X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fiberme FAG410X

Summary of Contents for Fiberme FAG410X

  • Page 1 FIBERME Communications LLC. Configuring FAG410X with Elastix...

  • Page 2: Table Of Contents

    REGISTER FAG410X ON Elastix AS AN EXTENSION ............. 10 Create SIP Extension on Elastix ..........................10 Configure FAG410X SIP Account as a Registered Extension on Elastix............10 FAG410X CALL Routing ..................... 12 Configure IP to Tel on FAG410X .......................... 12 Configure TEL to IP on FAG410X .......................
  • Page 3 Figure 3: Configure Outbound Rule on Elastix ......................6 Figure 4: Configure Inbound Rule on Elastix ......................7 Figure 5: Connect FAG410X with Elastix: Registrar IP Address ................7 Figure 6: Connect FAG410X with Elastix: Register Gateway ................8 Figure 7: Configure FXO Port on FAG410X: Modify Port ..................8 Figure 8: Configure FXO Port on FAG410X: Port Configurations .................

  • Page 4: Overview

    FAG4108 as an example. The following methodology can be used for the FAG4104 as well. This is typically applied to the scenario where users would like to add a FAG410X not only as a remote extension but also as an external PSTN trunk.

  • Page 5: Connect Elastix To Fag410X Using Peer Sip Trunk

    CONNECT Elastix TO FAG410X USING PEER SIP TRUNK Create IVR On Elastix On the Elastix web GUI, create an IVR extension under PBX->PBX Configuration->IVR. In IVR settings, if "Direct Dial" is enabled, the calls dialing into the Elastix IVR will be able to reach the internal extensions registered to Elastix.

  • Page 6: Create Peer Sip Trunk On Elastix

    Create Peer SIP TRUNK On Elastix On the Elastix web GUI, create a peer SIP trunk under PBX->PBX Configuration->Trunks . In this example, the FAG4108 IP address is 192.168.99.239. Figure 2: Create Peer SIP Trunk on Elastix Configure Outbound Rule on Elastix On Elastix web GUI, go to PBX->PBX Configuration->Outbound Routes to create a new outbound rule.

  • Page 7: Configure Inbound Rule On Elastix

    On Elastix web GUI, go to PBX->PBX Configuration->Inbound Routes to create a new inbound rule. In this example, we set the DID Number as 20000, which will be used in the FAG410X call forward setting. P a g e 6...

  • Page 8: Connect Fag410X With Elastix

    The default destination is configured to IVR. Ensure to select the proper IVR. Connect FAG410X with Elastix 1. On the FAG410X web GUI, go to the VoIP->SIP page and enter the IP address of the Elastix that you are peering with.

  • Page 9: Configure Fxo Port On Fag410X

    Configure FXO Port on FAG410X 1. Connect the PSTN line to the FAG410X FXO port. On the FAG410X web GUI, go to the Port->FXO page and press Modify on the FXO port you will use. Figure 7: Configure FXO Port on FAG410X: Modify Port 20000 3.

  • Page 10: Create Port Group On Fag410X

    Create Port Group on FAG410X 1. On the FAG410X web GUI, go to the Port->Port Group page and press “Add New”. Figure 9: Create Port Group on FAG410X: Add New 2. Select the FXO port you will use. Figure 10: Create Port Group on FAG410X: Group Configurations...

  • Page 11: Register Fag410X On Elastix As An Extension

    Configure FAG410X SIP Account as a Registered Extension on Elastix Under FAG410X web GUI->VoIP->SIP, please set Register Gateway to Yes, then enter SIP Extension information created earlier in Elastix. In this example, extension 1002 is used in order to register FAG410X as an extension user on Elastix.

  • Page 12: Figure 13: Fag410X Registrar Ip Address

    Execute. “OK” under Status means that the extension is registered successfully as below screenshot. Figure 14: Elastix - SIP Extension Status Now FAG410X is registered at Elastix as an extension device. Please refer to method 1 in the previous section to configure FXO Port settings on FAG410X.

  • Page 13: Fag410X Call Routing

    FAG410X CALL Routing Configure IP to Tel on FAG410X 1. On the FAG410X web GUI, go to the Route-> IP→TEL page, Press “Add New”. Figure 15: FAG410X – IP to TEL 2. Enter the Elastix Server IP address in “Source IP” and select the Port Group you will use from “Call Destination”.

  • Page 14: Configure Tel To Ip On Fag410X

    Configure TEL to IP on FAG410X 1. On the FAG410X web GUI, go to the Route-> TEL→IP page, Press “Add New”. Figure 17: FAG410X – TEL to IP Select the Port Group you will use from “Source Port Group” and enter the Elastix Server IP address in “Destination Address”.
