  • Page 1 FIBERME Communications LLC. Configuring FAG410X with FreePBX...

  • Page 2: Table Of Contents

    REGISTER FAG410X ON FreePBX AS AN EXTENSION ..........10 Create SIP Extension on FreePBX ........................10 Configure FAG410X SIP Account as a Registered Extension on FreePBX ........... 10 FAG410X CALL Routing ..................... 12 Configure IP to Tel on FAG410X .......................... 12 Configure TEL to IP on FAG410X .......................
  • Page 3 Figure 3: Configure Outbound Rule on FreePBX ..................... 6 Figure 4: Configure Inbound Rule on FreePBX ......................6 Figure 5: Connect FAG410X with FreePBX: Registrar IP Address ............... 7 Figure 6: Connect FAG410X with FreePBX: Register Gateway ................8 Figure 7: Configure FXO Port on FAG410X: Modify Port ..................8 Figure 8: Configure FXO Port on FAG410X: Port Configurations .................

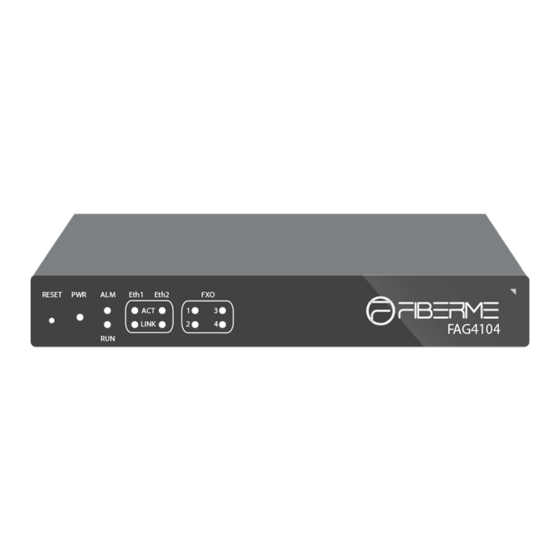

  • Page 4: Overview

    FAG4108 as an example. The following methodology can be used for the FAG4104 as well. This is typically applied to the scenario where users would like to add a FAG410X not only as a remote extension but also as an external PSTN trunk.

  • Page 5: Connect Freepbx To Fag410X Using Peer Sip Trunk

    CONNECT FreePBX TO FAG410X USING PEER SIP TRUNK Create IVR On FreePBX FreePBX On the web GUI, create an IVR extension under Applications ->IVR ->Add IVR. In IVR settings, if "Direct Dial" is enabled, the calls dialing into the FreePBX IVR will be able to reach the internal extensions registered to FreePBX.

  • Page 6: Create Peer Sip Trunk On Freepbx

    Create Peer SIP TRUNK On FreePBX On the FreePBX web GUI, create a peer SIP trunk under Connectivity ->Trunks ->Add SIP (Chan_pjsip) Trunk . In this example, the FAG4108 IP address is 192.168.99.239. Figure 2: Create Peer SIP Trunk on FreePBX Configure Outbound Rule on FreePBX On FreePBX web GUI, go to Connectivity ->Outbound Routes ->Add Outbound Route to create a new outbound rule.

  • Page 7: Configure Inbound Rule On Freepbx

    Configure Inbound Rule on FreePBX On FreePBX web GUI, go to Connectivity ->Inbound Routes ->Add Inbound Route to create a new inbound rule. In this example, we set the DID Number as 20000, which will be used in the FAG410X call forward setting.

  • Page 8: Connect Fag410X With Freepbx

    Connect FAG410X with FreePBX 1. On the FAG410X web GUI, go to the VoIP->SIP page and enter the IP address of the FreePBX that you are peering with. Figure 5: Connect FAG410X with FreePBX: Registrar IP Address 2. Please make sure the Register Gateway option under VoIP-> SIP is set to No. In the following example, FreePBX Server has IP address 192.168.99.127.

  • Page 9: Configure Fxo Port On Fag410X

    Configure FXO Port on FAG410X 1. Connect the PSTN line to the FAG410X FXO port. On the FAG410X web GUI, go to the Port->FXO page and press Modify on the FXO port you will use. Figure 7: Configure FXO Port on FAG410X: Modify Port 20000 3.

  • Page 10: Create Port Group On Fag410X

    Create Port Group on FAG410X 1. On the FAG410X web GUI, go to the Port->Port Group page and press “Add New”. Figure 9: Create Port Group on FAG410X: Add New 2. Select the FXO port you will use. Figure 10: Create Port Group on FAG410X: Group Configurations...

  • Page 11: Register Fag410X On Freepbx As An Extension

    Configure FAG410X SIP Account as a Registered Extension on FreePBX Under FAG410X web GUI->VoIP->SIP, please set Register Gateway to Yes, then enter SIP Extension information created earlier in FreePBX. In this example, extension 1002 is used in order to register FAG410X as an extension user on FreePBX.

  • Page 12: Figure 13: Fag410X Registrar Ip Address

    Send Command. “Avail” under Status means that the extension is registered successfully as below screenshot. Figure 14: FreePBX - SIP Extension Status Now FAG410X is registered at FreePBX as an extension device. Please refer to method 1 in the previous section to configure FXO Port settings on FAG410X. P a g e 11...

  • Page 13: Fag410X Call Routing

    FAG410X CALL Routing Configure IP to Tel on FAG410X 1. On the FAG410X web GUI, go to the Route-> IP→TEL page, Press “Add New”. Figure 15: FAG410X – IP to TEL 2. Enter the FreePBX Server IP address in “Source IP” and select the Port Group you will use from “Call Destination”.

  • Page 14: Configure Tel To Ip On Fag410X

    Configure TEL to IP on FAG410X 1. On the FAG410X web GUI, go to the Route-> TEL→IP page, Press “Add New”. Figure 17: FAG410X – TEL to IP Select the Port Group you will use from “Source Port Group” and enter the FreePBX Server IP address in “Destination Address”.
