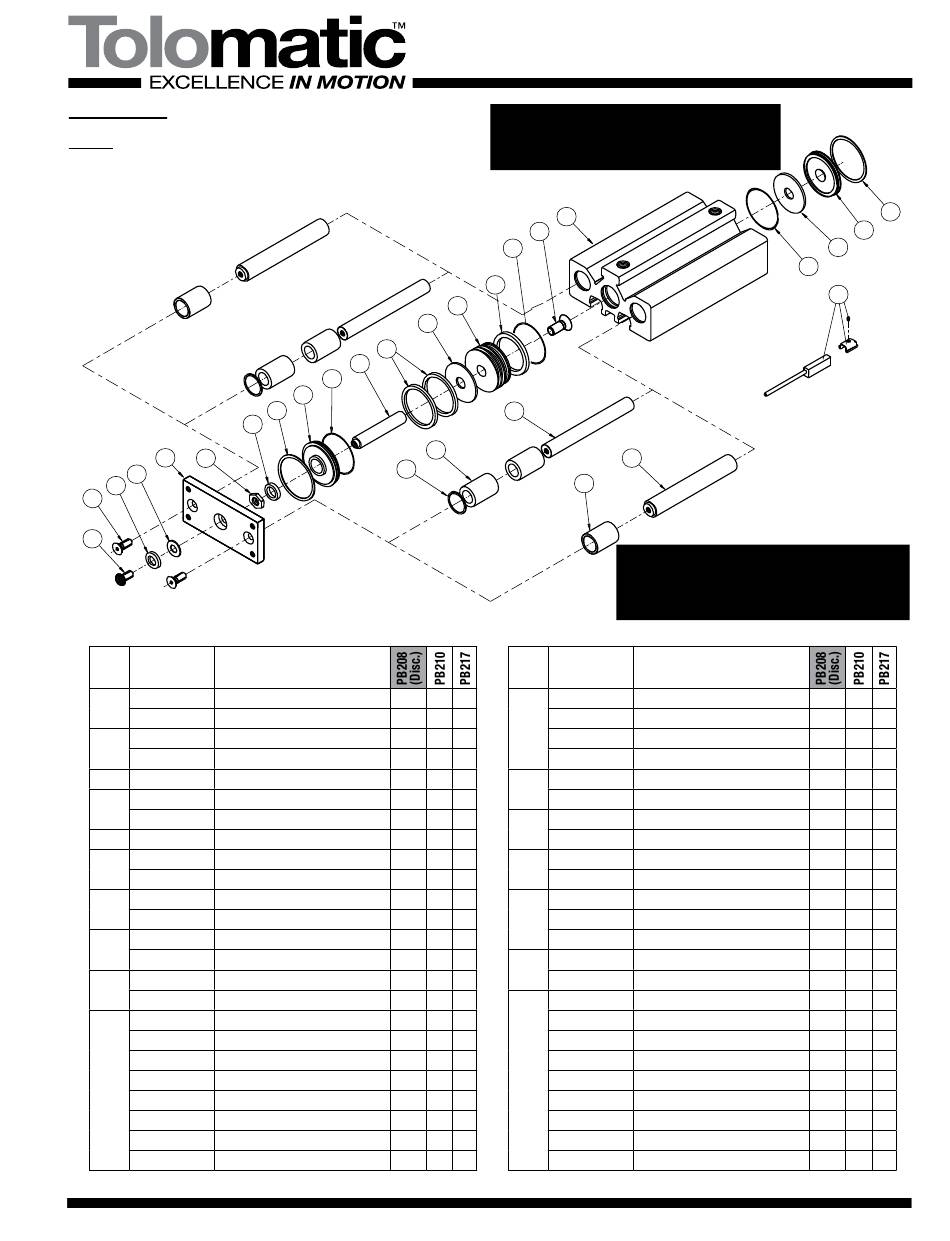

PB208, PB210, and PB217
1/2", 5/8" and 1-1/16" Bore
4
5
3
26
1
2
List of Parts
PART NO. OR
ITEM
CONFIG. CODE
0920-1024
SFHCS
1.
2517-1078
SHCS, SHLD
2309-1060
Nut Shoulder
2.
2517-1126
SHS, BTN
3.
2520-1079
Spring, bel.
2510-1068
Tooling Plate
4.
2517-1068
Tooling Plate
5.
2307-1007
Nut, Hex, 10-32
2506-1020
Q-Ring, Buna-n
6.
2520-1080
Q-Ring, Buna-n
2510-1029
Ret. Ring
7.
2517-1029
Ret. Ring
2510-1058
Head
8.
2517-1058
Head
0728-1005
O-Ring, Buna-N
9.
2317-1035
O-Ring, Buna-N
2510-1051
Piston Shaft, 1/2" Stroke
2510-1052
Piston Shaft, 1" Stroke
2510-1053
Piston Shaft, 1-1/2" Stroke
2510-1054
Piston Shaft, 2" Stroke
10.
2510-1055
Piston Shaft, 3" Stroke
2510-1056
Piston Shaft, 4" Stroke
2517-1051
Piston Shaft, 1" Stroke
2517-1052
Piston Shaft, 2" Stroke
Tolomatic • URL: http://www.tolomatic.com • Email: help@tolomatic.com • Fax: (763) 478-8080 • Toll Free: 1-800-328-2174
12
11
10
9
8
7
6
19
DESCRIPTION
(12-26-2019) PB208 IS A DISCONTINUED
PRODUCT SIZE. PARTS SHEET IS FOR
REPAIR INSTRUCTIONS ONLY.
16
15
27
14
13
21
20
22
PART NO. OR
ITEM
CONFIG. CODE
2
2517-1053
2
2517-1054
10.
1
2517-1055
1
2517-1056
1
0915-1009
11.
1
2517-1061
1
2510-1022
12.
1
2520-1102
1
2510-1059
13.
1
2517-1059
2
2402-1013
2
14.
2510-1069
1
2517-1069
1
2510-1038
15.
2
6000-1731
2
2510-1071
1
2510-1072
1
2510-1073
1
2510-1074
1
16.
2510-1075
1
2510-1076
1
2517-1071
1
2517-1072
1
2517-1073
Parts Sheet
2500-4012_07_PB208
23
PB208 Parts listing is for reference only.
All parts listed are limited to stock on hand.
Contact Tolomatic regarding availability.
DESCRIPTION
Piston Shaft, 3" Stroke
Piston Shaft, 4" Stroke
Piston Shaft, 5" Stroke
Piston Shaft, 6" Stroke
U-Cup, Buna-N
U-Cup, Buna-N
Bumper
Bumper
Piston
Piston
Mag, Reed/Triac Switches
Magnet, Hall Effect Switch
Magnet
Nut, Shoulder
SFHCS
Base 1/2" Stroke PB210
Base 1" Stroke PB210
Base 1-1/2" Stroke PB210
Base 2" Stroke PB210
Base 3" Stroke PB210
Base 4" Stroke PB210
Base 1" Stroke PB217
Base 2" Stroke PB217
Base 3" Stroke PB217
7
18
17
9
25
1
1
1
1
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
