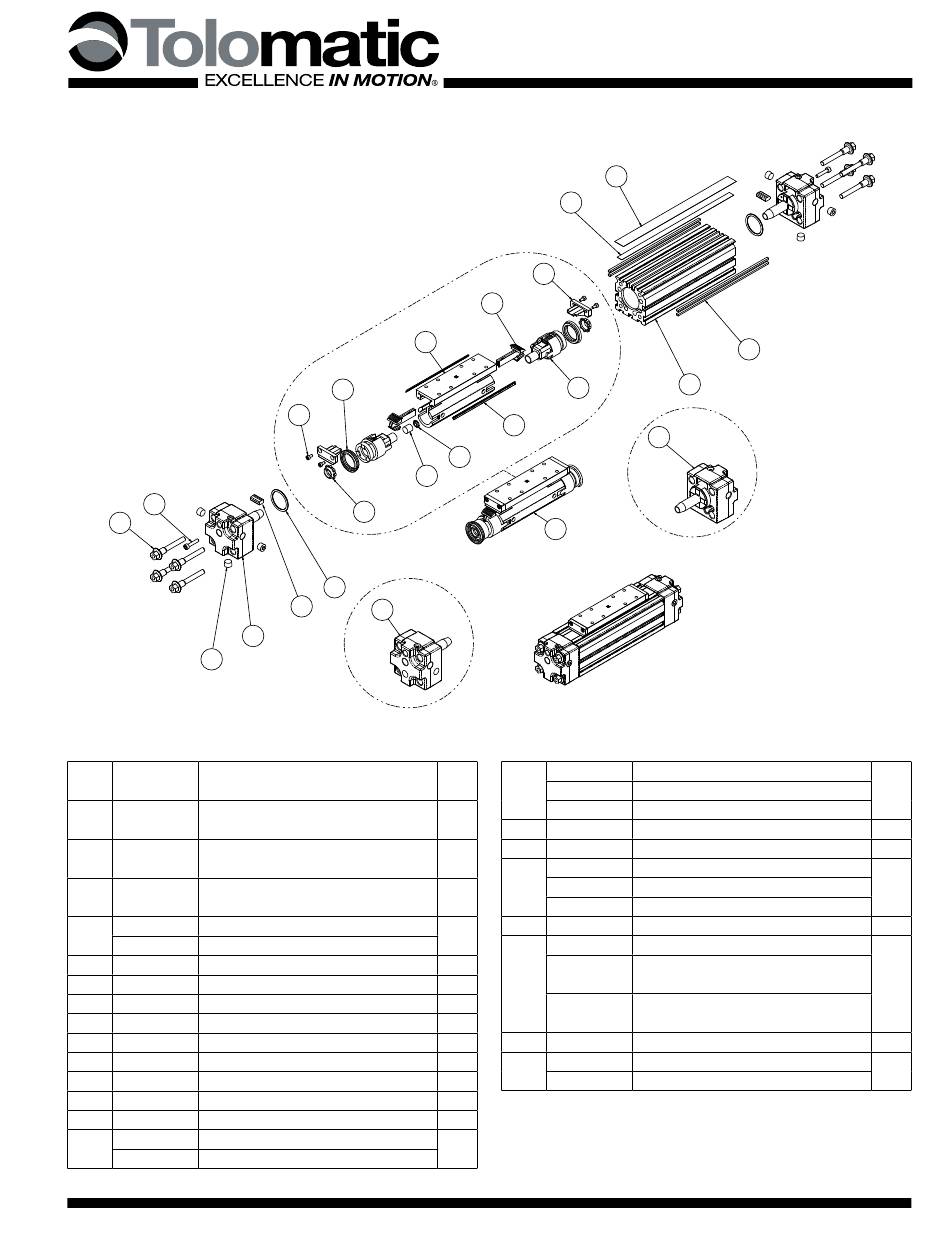

Tolomatic MXP32N Series Repair Parts Sheet

MXP32N Internal Bearing
Models: MXP32NTP MXP32NGP
MXP32NST MXP32NSG
Both Metric and Inch models
18
15
16
19
List of Parts
PART NO. or
ITEM CONFIG. CODE DESCRIPTION
Replacement Tube (8132-1010) Specify
1 RTBMXP32N
Stroke
Replacement Magnet Band (8132-1019)
2 NMBMXP32N
Specify Stroke
Replacement Dust Band (8132-1018)
1
3 NDBMXP32N
Specify Stroke
Replacement Seal Band (8132-1017)
4 1 NSBMXP32N
Specify Stroke
8132-1012 Piston Bracket (metric)
5
8132-1512 Piston Bracket (inch)
6 8132-1005 Piston
1
7 8132-1006 End Cap
8 1 8132-1059 Wiper
9 1 8132-1007 Band Ramp
10 0601-1038 Socket Head Cap Screw
11 8125-1058 Magnet
12 8125-1072 Lock Washer
1
13 0912-1009 U-Cup
14 1 0912-1006 Cushion Seal
4512-1011 Head Screw (metric)
15
0512-1011 Head Screw (inch)
Tolomatic • URL: http://www.tolomatic.com • Email: help@tolomatic.com • Fax: (763) 478-8080 • Toll Free: 1-800-328-2174
32mm (1-1/4 inch) Bore
MXP32NNP
MXP32NSN
5
13
10
12
11
14
Piston / Bracket Assembly
20
17
21
Single-End Porting Head
QTY.
A/R
4 A/R
A/R
A/R
1
2
2
2
2
4
1
1
2
2
8
3
4
7
9
6
8
22
23
Return Single-End Porting Head
PART NO. or
ITEM CONFIG. CODE DESCRIPTION
8132-9001 Head Assy, NPT
16 8132-9006 Head Assy, BSPT Metric Taper
8132-9007 Head Assy, ISO Metric Parallel
17 2 8132-1039 Band Clamp
2
18 2212-1094 Screw
1014-1065 Pipe Fitting Plug, 1/8-27 NPTF
19 2 4910-1002 Pipe Fitting Plug, 1/8-28
5910-1006 Pipe Fitting Plug, G 1/8
20 1,2 8132-1079 O-Ring
8132-9002 Head Assy, NPT Single-end Porting
Head Assy, BSPT Metric Taper, Single-
8132-9008
21 3 end Porting
Head Assy, ISO Metric Parallel, Single-
8132-9009
end Porting
22 3 8132-9003 Head Assy, Return Single-end Porting
8132-9000 Piston Bracket Assembly (metric)
23
8132-9500 Piston Bracket Assembly (inch)
1 Parts included in Repair Kits RKMXP32NSK (inch) & RKMXP32NSM (metric).
2 Parts included in Head Assemblies (16).
3 Part exclusive to single-end porting option.
Parts Sheet
8100-4101_08_MXP3
2
1
QTY.
2
2
2
6
2
1
1
1
