Tolomatic TC15 Instructions

Track Cable Cylinder
TC15 1-1/2" Bore
Part Numbers noted for Repair Kits and Cable
Assem blies are for standard cylinders only. Always
make reference to the complete configuration
number and stroke length of your cylinder when
ordering replacement items.

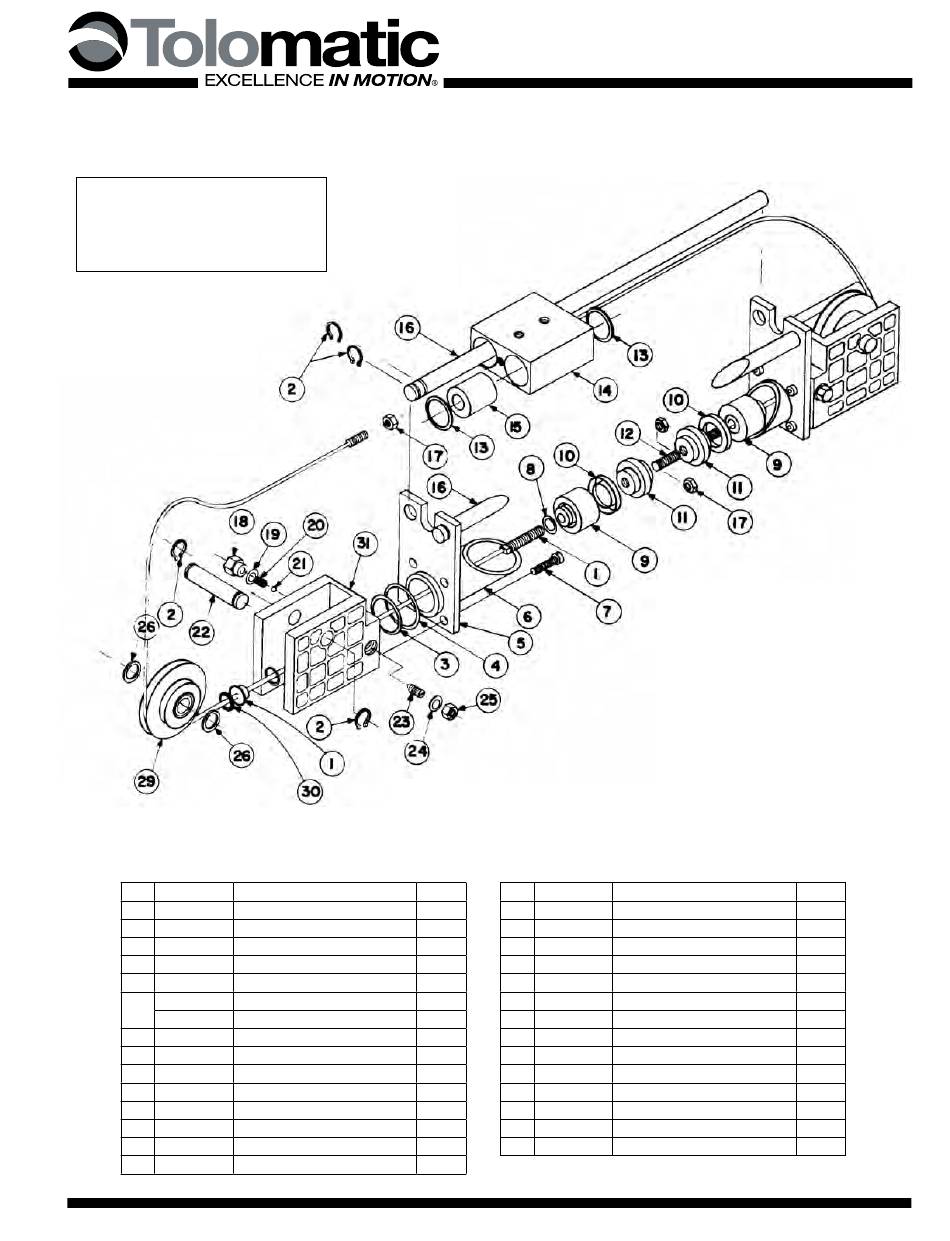

Parts Listing
PART NO. or
ITEM CONFIG. CODE DESCRIPTION
RKTC15 Repair Kit (specify stroke)
*1. CATC15 Cable Assembly (specify stroke)
2. 1004-1056 External Retaining Ring
*3. 1004-1037 O-Ring Seal
4. 1004-1036 External Retaining Ring
5. 1004-1327 Clamp Plate
6. 1004-1329 Steel Tube, specify stroke
1004-1328 Aluminum Tube, specify stroke
7. 1004-1064 Socket Head Cap Screw
*8. 1004-1022 Quad Ring Cushion
9. 1004-1041 Piston Skirt
*10. 1004-1020 Piston U-Cup
11. 1004-1040 Piston
12. 1004-1334 Piston Spacer
13. 1004-1333 Internal Retaining Ring
14. 1004-1326 Bearing Block
Tolomatic • URL: http://www.tolomatic.com • Email: help@tolomatic.com • Fax: (763) 478-8080 • Toll Free: 1-800-328-2174
PART NO. or
Quantity ITEM CONFIG. CODE DESCRIPTION
1 15. 1004-1332 Linear Bearing
2 16. NGSTC15
8 17. 0740-1022 Jam Nut
2 18. 1004-1045 Check Valve Screw
2 19. 1004-1048 Seal Washer
2 20. 1004-1046 Check Valve Spring
1 21. 1004-1047 Check Valve Ball
1 22. 1004-1052 Pulley Shaft
8 23. 1004-1212 Needle Cushion
2 24. 1004-1067 Seal Washer
2 25. 1004-1050 Jam Nut
2 26. 1004-1410 Pulley Spacer Washer
2 29. 1004-9005 Pulley Assembly
1 30. 1004-1278
4 31. 1004-1279
1 *Available only as part of Repair Kit 1075-9013.
Parts Sheet
1001-0233_05_TC15p
Guide Shaft (specify stroke)
Internal Retaining Ring
Cylinder Head, single port
MODEL: TC15
Quantity
4
2
4
2
2
2
2
2
2
2
2
4
2
2
2
