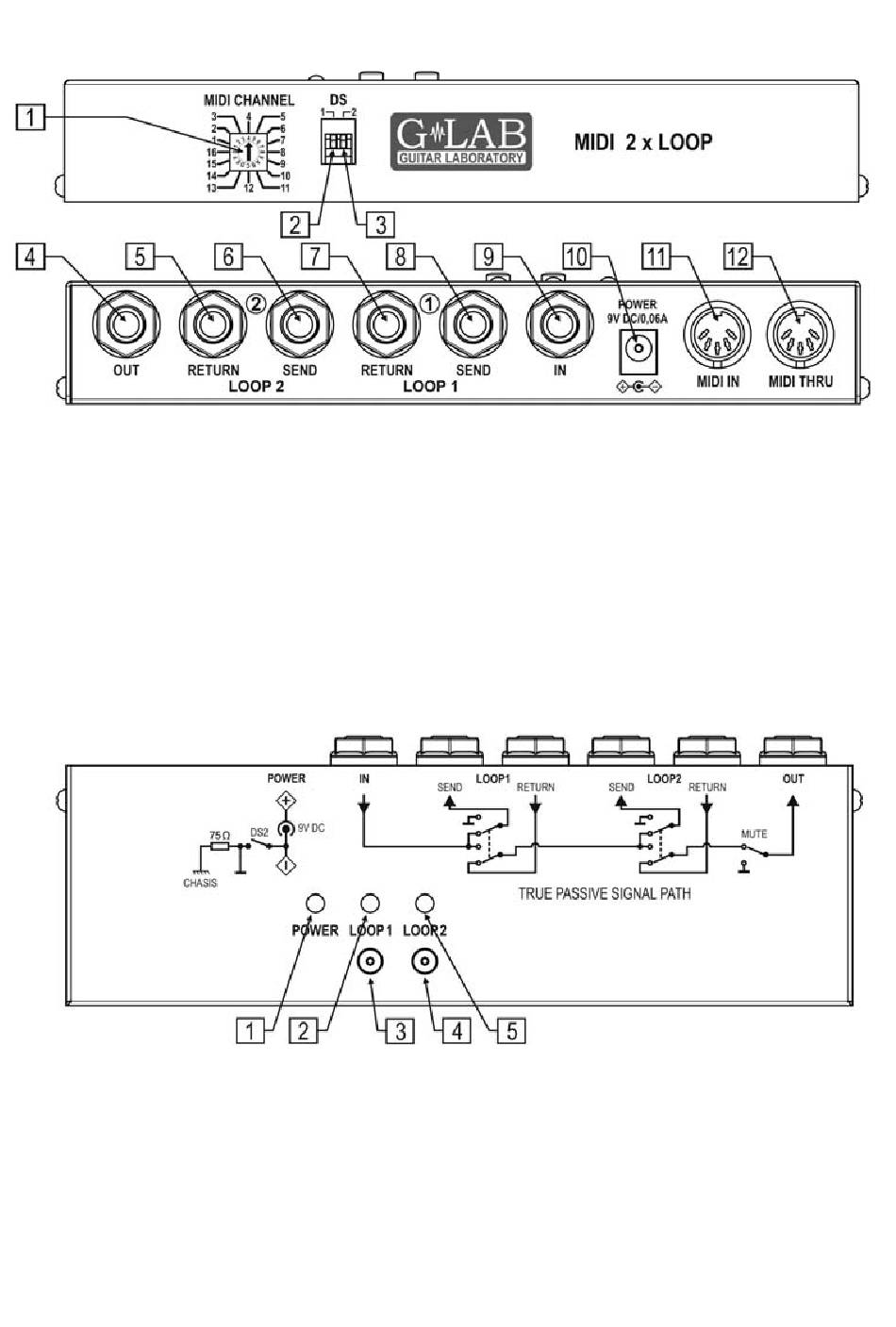

Structure

1 - MIDI channel settings switcher

2 - DS1 micro switch

3 - DS2 micro switch

4 - Signal output connector

5 - LOOP 2 signal input (RETURN)

6 - LOOP 2 signal output (SEND)

1 - Power supply indicator

2 - Loop 1 status indicator

3 - Loop 1 on/off button

4 - Loop 2 on/off button

5 - Loop 2 status indicator

7 - LOOP 1 signal input (RETURN)

8 - LOOP 1 signal output (SEND)

9 - Signal input connector

10 - Power supply connector

11 - MIDI input

12 - MIDI copy (THRU)
