Summary of Contents for G-Lab WOWEE-WAH
-
Page 3: Table Of Contents
Version 1.1 Table of contents Structure ___________________________________________________ 4 Switches’ functions __________________________________________ 5 Basic ideas of the tone switches’ settings _______________________ 6 Power supply _______________________________________________ 7 Connecting to a gear _________________________________________ 7 MIDI channel setting _________________________________________ 8 Controlling via MIDI commands ________________________________ 8 Regulation of the resistance to motion force ____________________ 10 Technical parameters _______________________________________ 10 EMC/EMI &... - Page 5 Dear Customer! Thank you for choosing our product. MIDI WOWEE WAH MWW-1 is a classic analog wah-wah effect enabling to set the tones and featuring new and comfortable switching mode. MIDI interface enables fast switching of the tones by using any MIDI controller (e.g.
-
Page 6: Structure

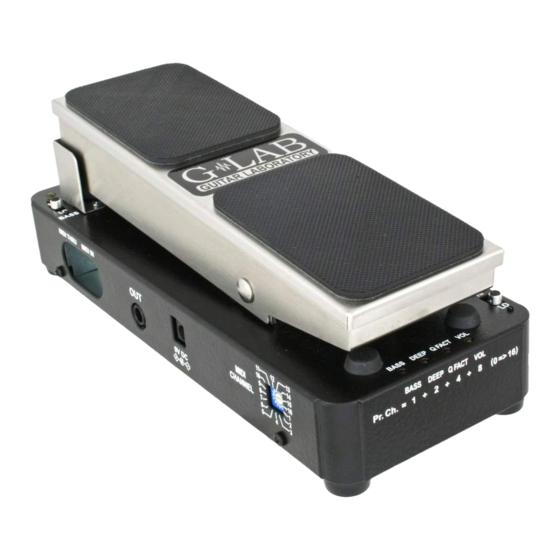

Structure 1 - BASS HI/LOW switch 2 - MIDI IN and MIDI THRU connectors 3 - OUT connector 4 - 9V DC power supply connector 5 - MIDI IN channel switch 6 - Functions indicators 7 - VOLUME HI/LOW switch 8 - ON/OFF mode switch 9 - IN connector 10 - Q FACTOR HI/LOW switch... -
Page 7: Switches' Functions
Switches’ functions BASS – Switch LOW – bass attenuation like in a classic wah-wah, HIGH – without bass attenuation, DEEP – Switch changing the effect intensity, HIGH position – decreases the signal level of the frequencies behind the resonance what increases effect intensity in all range of pedal regulation, a side effect is attenuation of the signal (it is recommended to set VOL switch on HIGH position),... -
Page 8: Basic Ideas Of The Tone Switches' Settings
ON/OFF MODE – Switching mode switch: SWITCH position – classic mode by using of the switch located in front of the pedal, TOUCH position – pressure activated mode by placing the foot on the wah-wah Basic ideas of the tone switches’ settings sound view description... -
Page 9: Power Supply
Power supply It is recommended to supply the WOWEE-WAH from 9V DC regulated adapter with a capacity of 30 mA or more. Before plugging the adapter please check the pin polarization „CTR –” (center negative). -
Page 10: Midi Channel Setting
MIDI channel setting To set a MIDI channel on which the MWW-1 receives the commands serves MIDI CHANNEL rotatable switch. To change the channel use a small screw and turn it a little right or left. The arrow-head indicates set channel (A, B, C, D, E, F letters correspond with 10, 11, 12, 13, 14, 15 channels numbers and “0”... - Page 11 BASS DEEP Q FACT. VOLUME PROGRAM The table below shows numbers and functions of Control Change commands. Controllers from 104 to 107 serve to control individually each function and controller number 86 functions similarly to the Program Change command. Controler’s Function Value Number...
-
Page 12: Regulation Of The Resistance To Motion Force
Regulation of the resistance to motion force MIDI WOWEE-WAH posses the ability to adjust the resistance to motion force by using the spring set screw. For regulation it is needed to use the 7 mm open ended spanner. Screwing in of the screw increases the resistance... -
Page 13: Emc/Emi & Certificate Of Conformity
Certificate of Conformity ELZAB S.A., ul. Kruczkowskiego 39, 41-813 Zabrze, Poland, hereby declares on own responsibility that the following product: MIDI WOWEE-WAH (G LAB MWW-1) that is covered by this certificate and marked with CE 07 label conforms with following standards:... - Page 14 DO NOT PLACE THIS PRODUCT INTO THE WASTE CONTAINER ! This device is marked with a cross-lined waste container symbol according to 2002/96/EU Directive on Waste Electric and Electronic Equipment. Such marking informs that after usage equipment can not be trashed together with other household waste.
