Summary of Contents for G-Lab 6 x LOOP EXTENSION

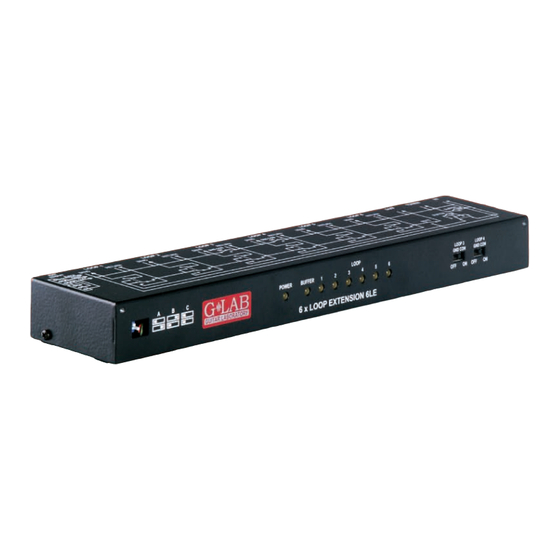

- Page 3 Edition 1.0 Dear Customer! Thank you for choosing our product. The 6 x LOOP EXTENSION (6LE) module is the effects loop switcher (looper) for the GSC controllers (e.g. GSC-5) equipped with EXTENSION OUTPUTS (EXT OUT). Basic features: - passive signal path...
- Page 5 Connecting the 6LE module to the controller The 12V power supply and the controlling signal comes from the EXT OUT connector of the GSC-5 controller. The EXT IN/OUT connector of the 6LE module should be connected with EXT OUT output of the GSC-5 foot controller or of the MPM-1 power supply module or with EXT IN/OUT connector of already connected the 6LE module.
- Page 6 The LOOP3 and LOOP4 GROUND CONNECTION switches The 6LE module can be connected between guitar and an amp input (“at the front”) or on amp serial effect loop (FX LOOP). In this cases the LOOP 3 GND and LOOP 4 GND switches should be set to ON position. The 6LE enables to connect 2 (or 3) effects “at the front”...
- Page 7 The table below shows the quantity of the loops “at the front” and on the FX LOOP depending on the quantity of used 6LE modules connected to the GSC-5. Quantity Effects Effects Quantity Effects Effects of 6LE „at the on the of 6LE „at the on the...
- Page 8 Mounting In case of mounting inside the foot controller or to the pedalboard use the velcro fasteners supplied with the device. The module should be mounted in the proper place to avoid accidental ground connection of JACK connectors or 6LE housing to other conducting elements. It could lead to the ground loops occurring provoking the hums in speakers.
- Page 9 Declaration of Conformity ELZAB S.A., ul. Kruczkowskiego 39, 41-813 Zabrze, Poland, declare under sole responsibility, that the following product: G LAB/6 x LOOP EXTENSION (G LAB 6LE) conforms with requirements of the EC Council Directives: ● 2006/95/EEC Low Voltage Directive, ●...
- Page 10 DO NOT PLACE THIS PRODUCT INTO THE WASTE CONTAINER ! This device is marked with a cross-lined waste container symbol according to 2002/96/EU Directive on Waste Electric and Electronic Equipment. Such marking informs that after usage equipment can not be trashed together with other household waste.
