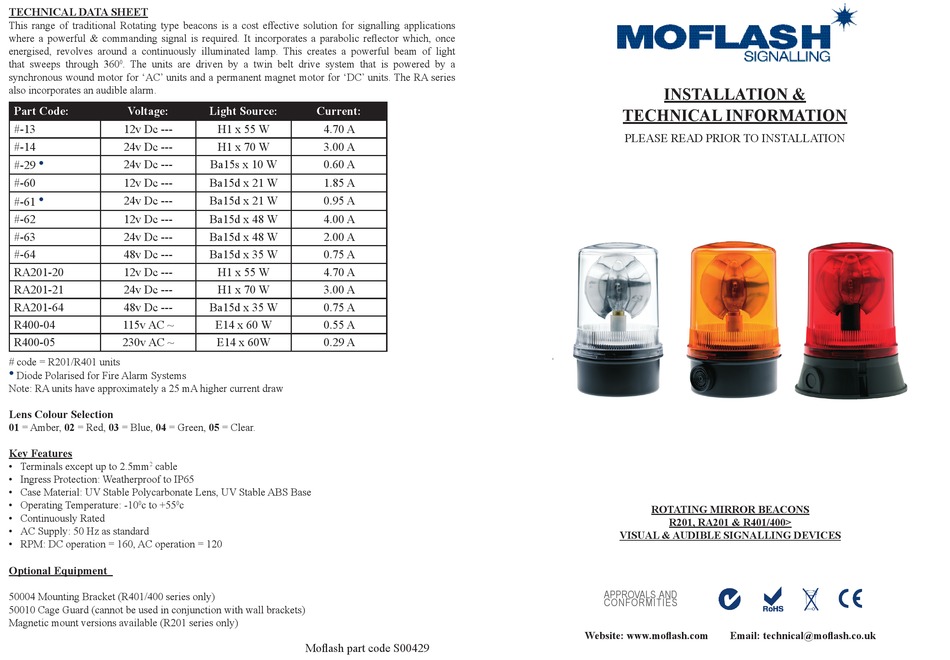

TECHNICAL DATA SHEET
This range of traditional Rotating type beacons is a cost effective solution for signalling applications
where a powerful & commanding signal is required. It incorporates a parabolic reflector which, once
energised, revolves around a continuously illuminated lamp. This creates a powerful beam of light
that sweeps through 360
. The units are driven by a twin belt drive system that is powered by a
0
synchronous wound motor for 'AC' units and a permanent magnet motor for 'DC' units. The RA series
also incorporates an audible alarm.
Part Code:
Voltage:
#-13
12v Dc ---
#-14
24v Dc ---
24v Dc ---
#-29
l
#-60
12v Dc ---
24v Dc ---
#-61
l
#-62
12v Dc ---
#-63
24v Dc ---
#-64
48v Dc ---
RA201-20
12v Dc ---
RA201-21
24v Dc ---
RA201-64
48v Dc ---
R400-04
115v AC ~
R400-05
230v AC ~
# code = R201/R401 units
Diode Polarised for Fire Alarm Systems
l
Note: RA units have approximately a 25 mA higher current draw
Lens Colour Selection
01 = Amber, 02 = Red, 03 = Blue, 04 = Green, 05 = Clear.
Key Features
• Terminals except up to 2.5mm
cable
2
• Ingress Protection: Weatherproof to IP65
• Case Material: UV Stable Polycarbonate Lens, UV Stable ABS Base
• Operating Temperature: -10
c to +55
c
0
0
• Continuously Rated
• AC Supply: 50 Hz as standard
• RPM: DC operation = 160, AC operation = 120
Optional Equipment
50004 Mounting Bracket (R401/400 series only)
50010 Cage Guard (cannot be used in conjunction with wall brackets)
Magnetic mount versions available (R201 series only)
Light Source:
Current:
H1 x 55 W
4.70 A
H1 x 70 W
3.00 A
Ba15s x 10 W
0.60 A
Ba15d x 21 W
1.85 A
Ba15d x 21 W
0.95 A
Ba15d x 48 W
4.00 A
Ba15d x 48 W
2.00 A
Ba15d x 35 W
0.75 A
H1 x 55 W
4.70 A
H1 x 70 W
3.00 A
Ba15d x 35 W
0.75 A
E14 x 60 W
0.55 A
E14 x 60W
0.29 A
Moflash part code S00429
INSTALLATION &
TECHNICAL INFORMATION
PLEASE READ PRIOR TO INSTALLATION
ROTATING MIRROR BEACONS
