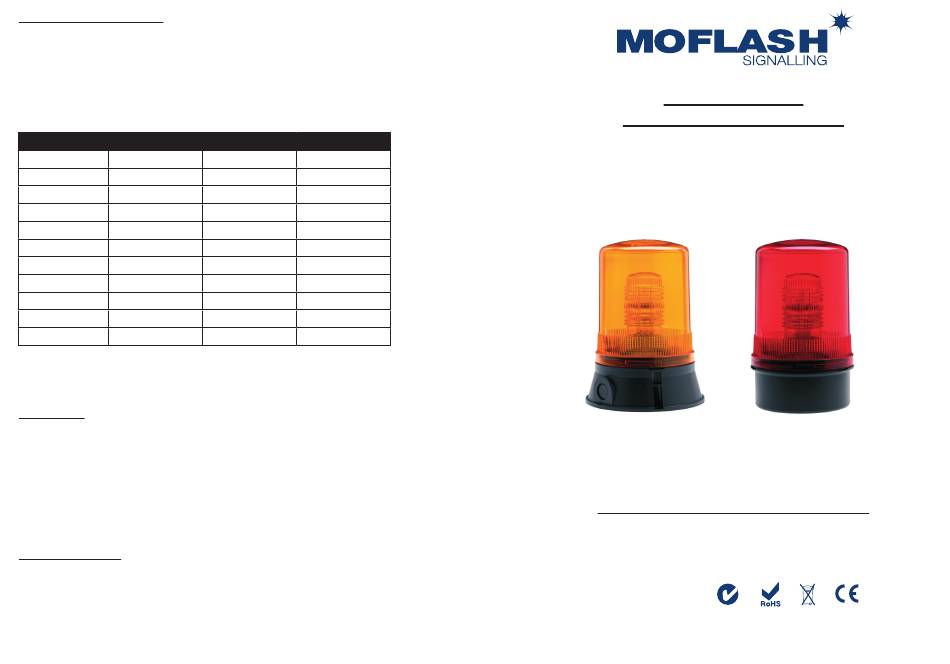

TECHNICAL DATA SHEET
This range of Xenon beacons are suitable for either internal or external use where a more
powerful warning signal is required. They produce 10 Joules of flash energy at 60 FPM
& when the double flash option is chosen the beacon produces 10 Joules first flash and
7.5 Joules on the second flash. The light is emitted through 360
and 180
above the horizontal axis. The 201/200 series can be conduit box mounted.
0
All models can be surface or wall mounted (see accessories) as standard.
Part Code:
Voltage:
X201-18
12/24v Dc ---
X201-19
12/24v Dc ---
X200-88
24v Ac ~
X200-21
115v Ac ~
X200-22
230v Ac ~
X401-18
12/24v Dc ---
X401-19
12/24v Dc ---
X400-88
24v Ac ~
X400-89
48v Ac ~
X400-21
115v Ac ~
X400-22
230v Ac ~
Lens Colour Selection
01 = Amber, 02 = Red, 03 = Blue, 04 = Green, 05 = Clear.
Key Features
• Terminals except up to 1.5mm
with wire protectors
2
• Ingress Protection: Weatherproof to IP65
• Case Material: UV Stable Polycarbonate Lens, UV Stable ABS Base
• Operating Temperature Range: -25
c to +55
0
• Continuously Rated
• AC Supply = 50/60 Hz
• Dual Voltage DC Option
• Multiple Flash Rate Available
Optional Equipment
• 50001 Mounting Bracket (X201/200 series only)
• 50004 Mounting Bracket (X401/400 series only)
• 50010 Cage Guard (cannot be used in conjunction with wall brackets)
• 50158 IP66 Weatherproof Band (X201/200 series only)
• 50080 Anti Vibration Mount (X201/200 series only)
around the vertical axis
0
Light Source:
Current:
Xenon 10J / 7.5J
1.45 / 0.7 A
Xenon 10J / 7.5J
1.45 / 0.7 A
Xenon 10J / 7.5J
0.72 A
Xenon 10J / 7.5J
0.10 A
Xenon 10J / 7.5J
0.06 A
Xenon 10J / 7.5J
1.45 / 0.7 A
Xenon 10J / 7.5J
1.45 / 0.7 A
Xenon 10J / 7.5J
0.72 A
Xenon 7J / 5J
0.37 A
Xenon 10J / 7.5J
0.10 A
Xenon 10J / 7.5J
0.06 A
c
0
Moflash part code S00572
INSTALLATION &
TECHNICAL INFORMATION
PLEASE READ PRIOR TO INSTALLATION
X201/200 & X401/400 Series - (Xenon/Strobe)
