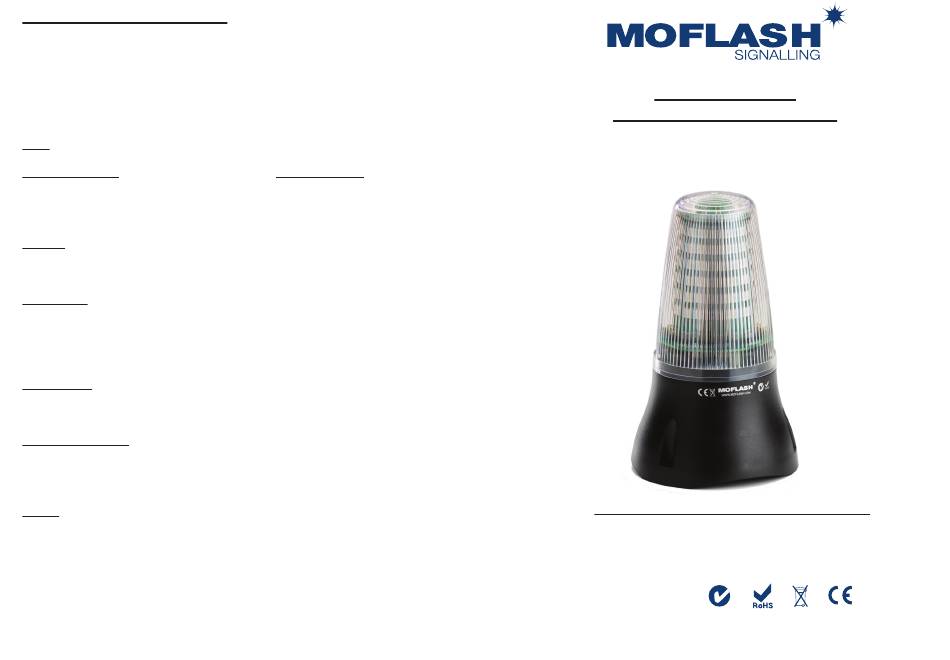

TECHNICAL DATA SHEET

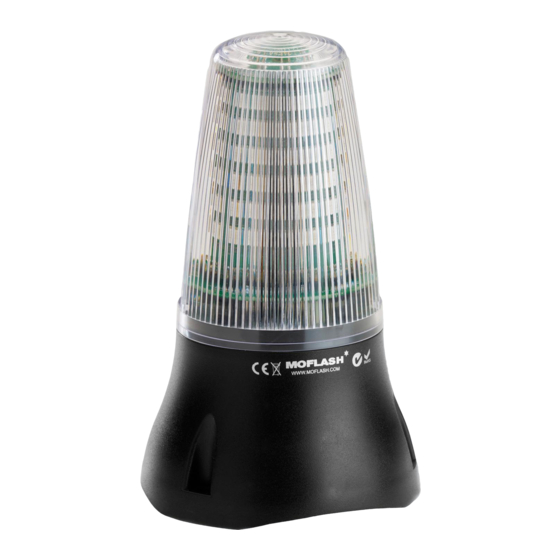

This Beacon incorporates 48 extra bright, long life, tri-colour LED's with 360°
visibility, housed alongside two Piezo buzzers in one compact unit. It is available for 24vDC
operation only.
The audible/visual modes may be used independently or combined in any required
combination via PLC control or relays.
Note: The LEDs/Buzzers are only 'ON' when the Signal is HIGH.
Light Source LEDs
GREEN
11.2
Effective Candela
AMBER
8.0
Effective Candela
RED
6.4
Effective Candela
Sounder
Frequency 3.1kHz +/- 500Hz
Audibility 90 dBA +/- 3 @ 1metre
Information:
Operational Temperature Range: -20 to +55
Enclosure Materials: UV stable Polycarbonate Lens. UV stable ABS Plastic Base
Suitable Applications: Industrial
Boxed Weight (including lens): 0.33kg
Cable Details
7mm maximum cable diameter.
Maximum 1.5mm
(14 to 22 AWG) stranded core with 4mm cut back.
2
Optional Equipment
50007 Right Angled Wall Bracket: Use diameter 4mm fixings (not supplied).
50003 Cage Guard: Use diameter 5mm fixings (supplied).
Note: This guard cannot be used when the Beacon is fitted on the Right Angled Wall Bracket.
Spares
50022 - Spare Clear Lens Cover.
There are no other user serviceable parts in this unit.
Running Current
250mA
250mA
250mA
30mA
c
0
Moflash part code S00618
INSTALLATION &
TECHNICAL INFORMATION
PLEASE READ PRIOR TO INSTALLATION
LEDA125-01 Series - (LED Tri-Colour Beacon)
VISUAL & AUDIBLE COMBINATION SIGNALLING DEVICES
APPROVED
AND
CONFORMITIES
Website: www.moflash.com
Email: technical@moflash.co.uk
Advertisement
Table of Contents
Related Manuals for MOFLASH SIGNALLING LEDA125-01 Series
Summary of Contents for MOFLASH SIGNALLING LEDA125-01 Series
- Page 1 50007 Right Angled Wall Bracket: Use diameter 4mm fixings (not supplied). 50003 Cage Guard: Use diameter 5mm fixings (supplied). Note: This guard cannot be used when the Beacon is fitted on the Right Angled Wall Bracket. LEDA125-01 Series - (LED Tri-Colour Beacon) Spares 50022 - Spare Clear Lens Cover.
- Page 2 INSTALLATION DATA SHEET Remove the 3 x M3 screws and the base plate away from the body of the Beacon. Pierce the cable grommet. Insert supply/signal cable (maximum 7mm diameter) through the grommet, Lens pull back slightly (10mm) to allow the grommet to form a weatherproof seal over the cable. SIDE VIEW Loop signal/power cable/s through the hole on the PCB as this will act as the strain relief, OF BEACON...
