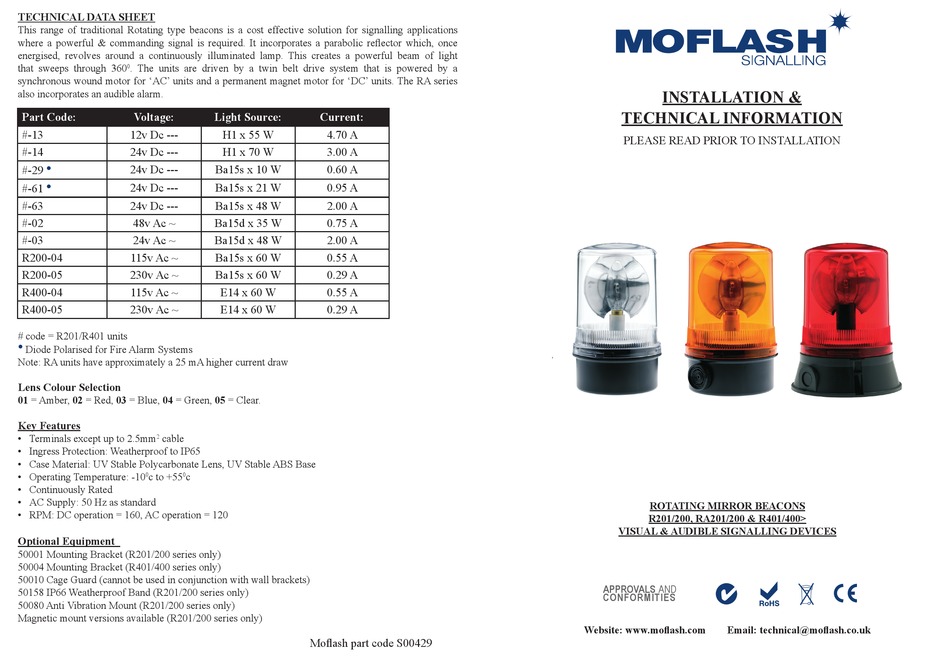

MOFLASH SIGNALLING R201 Series Installation And Technical Information

TECHNICAL DATA SHEET
This range of traditional Rotating type beacons is a cost effective solution for signalling applications
where a powerful & commanding signal is required. It incorporates a parabolic reflector which, once
energised, revolves around a continuously illuminated lamp. This creates a powerful beam of light
that sweeps through 360 . The units are driven by a twin belt drive system that is powered by a
0
synchronous wound motor for 'AC' units and a permanent magnet motor for 'DC' units. The RA series
also incorporates an audible alarm.
Part Code: Voltage:
#-13 12v Dc ---
#-14 24v Dc ---
24v Dc ---
#-29
l
24v Dc ---
#-61
l
#-63 24v Dc ---
#-02 48v Ac ~
#-03 24v Ac ~
R200-04 115v Ac ~
R200-05 230v Ac ~
R400-04 115v Ac ~
R400-05 230v Ac ~
# code = R201/R401 units
Diode Polarised for Fire Alarm Systems
l
Note: RA units have approximately a 25 mA higher current draw
Lens Colour Selection
01 = Amber, 02 = Red, 03 = Blue, 04 = Green, 05 = Clear.
Key Features
• Terminals except up to 2.5mm cable
2
• Ingress Protection: Weatherproof to IP65
• Case Material: UV Stable Polycarbonate Lens, UV Stable ABS Base
• Operating Temperature: -10 c to +55 c
0 0
• Continuously Rated
• AC Supply: 50 Hz as standard
• RPM: DC operation = 160, AC operation = 120
Optional Equipment
50001 Mounting Bracket (R201/200 series only)
50004 Mounting Bracket (R401/400 series only)
50010 Cage Guard (cannot be used in conjunction with wall brackets)
50158 IP66 Weatherproof Band (R201/200 series only)
50080 Anti Vibration Mount (R201/200 series only)
Magnetic mount versions available (R201/200 series only)
Light Source: Current:
H1 x 55 W 4.70 A
H1 x 70 W 3.00 A
Ba15s x 10 W 0.60 A
Ba15s x 21 W 0.95 A
Ba15s x 48 W 2.00 A
Ba15d x 35 W 0.75 A
Ba15d x 48 W 2.00 A
Ba15s x 60 W 0.55 A
Ba15s x 60 W 0.29 A
E14 x 60 W 0.55 A
E14 x 60 W 0.29 A
Moflash part code S00429
