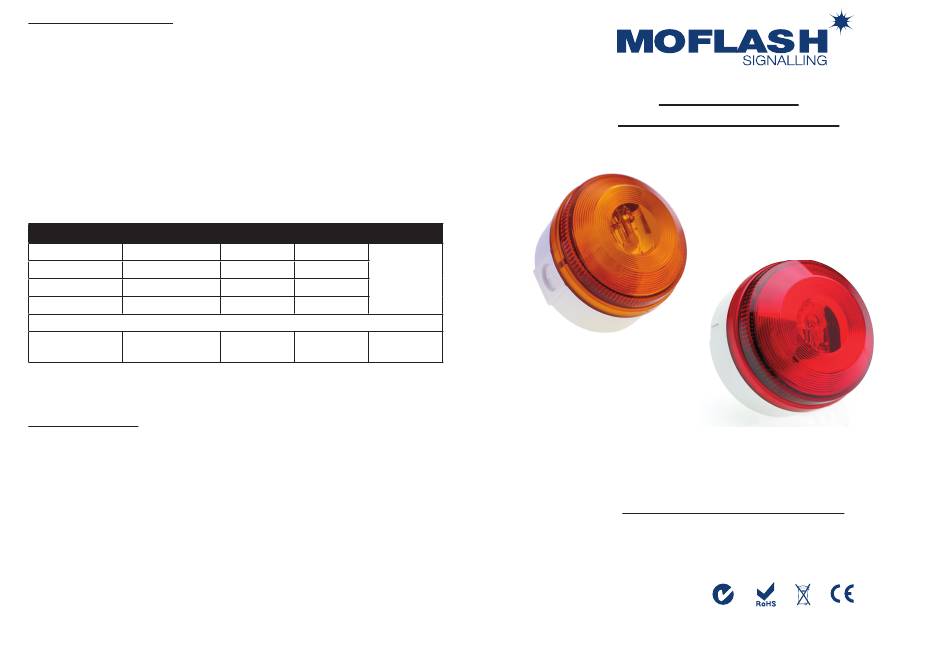

MOFLASH SIGNALLING X195 Series Installation & Technical Manual

TECHNICAL DATA SHEET

The X195 and X197 are suitable for security, process control & general
industrial signalling applications.
These beacons are of the Flashing mode type (single stage alarm) Xenon beacons
(sometimes called strobes) are controlled via a PCB and put out a very brief but bright flash
of white light by ionizing and then discharging a large current through the xenon gas.
The design allows for termination inside the enclosure.
The X197 high power version only allows for internal connection via the M20 rear knockout.
The unit has provision for a Synchronous Mode of operation. This requires a third wire
connection & a remote synchronising module (not supplied).
Code No: Voltage:
---
X195-02WH-SB- 15-28v Ac/Dc ~
---
X195-02WH-
15-28v Ac/Dc ~
X195-05WH-SB-
180-240v Ac ~
X195-05WH- 180-240v Ac ~
X197-02WH 24v Dc ---
For Lens colours add: 01 Amber, 02 Red, 03 Blue, 04 Green and 05 Clear
Key Features Include:
• Terminal block excepts up to 2.5mm cable incorporating rising
clamp protectors (1.5mm X197)
2
• Suitable for conduit box or wall mounting
• 120 prime light output above the vertical axis
0
• Ingress Protection: Weatherproof to IP65
• Flash Rate: X195 - 60 Flashes / minute Nominal
• Flash Rate: X197 - 55 Flashes / minute Nominal
• Operating Temperature Range: -25 + 55
• Enclosure Materials: UV Stable Polycarbonate Lens
UV Stable ABS Bases
• AC Supply: 50/60 Hz
Rating:
Light Source: Current:
Xenon 5.0 J 310mA
Xenon 5.0 J 310mA
Continuous
Xenon 5.0 J 110mA
Xenon 5.0 J 110mA
Xenon 10.0 J 650mA 'ON' 2 hours
in any 6
c
0
Moflash part code S00408 Issue 2
INSTALLATION &

TECHNICAL INFORMATION

PLEASE READ PRIOR TO INSTALLATION
X195 & X197
Deep Base Option
X195 & X197 Series - (Xenon/Strobe)
VISUAL SIGNALLING DEVICES
APPROVED
AND
CONFORMITIES
