MOFLASH SIGNALLING X198-02WH-02-05 Installation & Technical Information

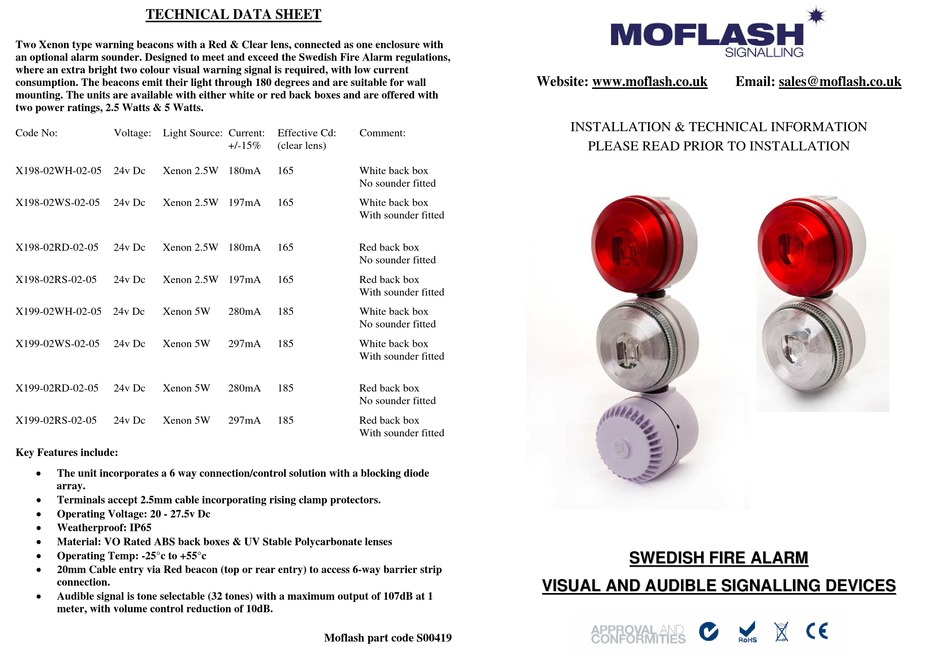

TECHNICAL DATA SHEET

Two Xenon type warning beacons with a Red & Clear lens, connected as one enclosure with
an optional alarm sounder. Designed to meet and exceed the Swedish Fire Alarm regulations,
where an extra bright two colour visual warning signal is required, with low current
consumption. The beacons emit their light through 180 degrees and are suitable for wall
mounting. The units are available with either white or red back boxes and are offered with
two power ratings, 2.5 Watts & 5 Watts.
Code No: Voltage: Light Source: Current:
X198-02WH-02-05 24v Dc Xenon 2.5W 180mA
X198-02WS-02-05 24v Dc Xenon 2.5W 197mA
X198-02RD-02-05 24v Dc Xenon 2.5W 180mA
X198-02RS-02-05 24v Dc Xenon 2.5W 197mA
X199-02WH-02-05 24v Dc Xenon 5W
X199-02WS-02-05 24v Dc Xenon 5W
X199-02RD-02-05 24v Dc Xenon 5W
X199-02RS-02-05 24v Dc Xenon 5W
Key Features include:

The unit incorporates a 6 way connection/control solution with a blocking diode
array.

Terminals accept 2.5mm cable incorporating rising clamp protectors.

Operating Voltage: 20 - 27.5v Dc

Weatherproof: IP65

Material: VO Rated ABS back boxes & UV Stable Polycarbonate lenses

Operating Temp: -25°c to +55°c

20mm Cable entry via Red beacon (top or rear entry) to access 6-way barrier strip
connection.

Audible signal is tone selectable (32 tones) with a maximum output of 107dB at 1
meter, with volume control reduction of 10dB.
Effective Cd: Comment:
+/-15% (clear lens)
165 White back box
No sounder fitted
165 White back box
With sounder fitted
165 Red back box
No sounder fitted
165 Red back box
With sounder fitted
280mA 185 White back box
No sounder fitted
297mA 185 White back box
With sounder fitted
280mA 185 Red back box
No sounder fitted
297mA 185 Red back box
With sounder fitted
Moflash part code S00419
