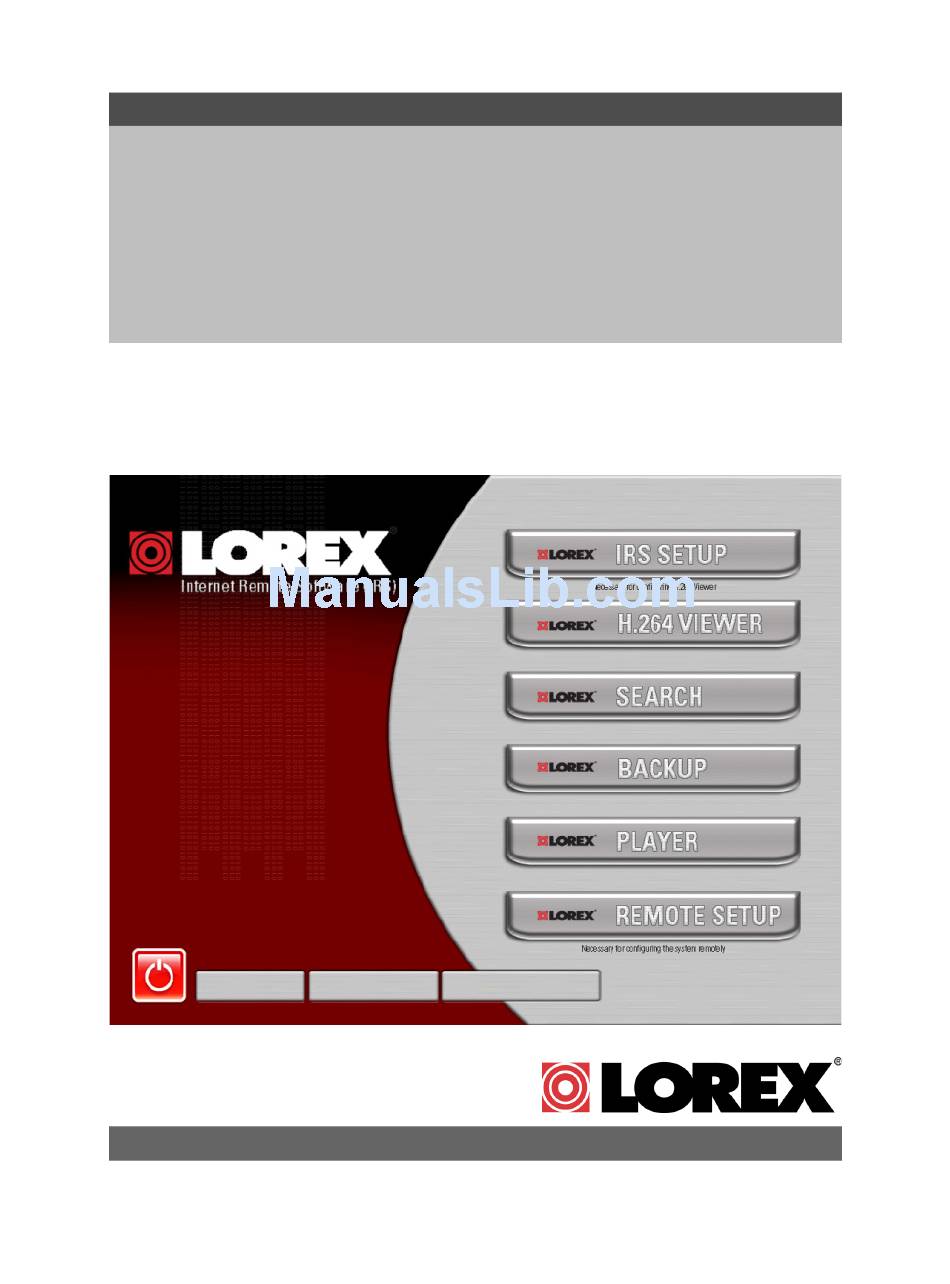

LOREX CLIENT 2.2
Integrated Remote
Agent Software
Instruction Manual
English Version 1.0
MODEL:
L15LD420 / L17LD420 Series
www.lorexcctv.com
©
Copyright
2008 LOREX Technology Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L15LD420 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lorex L15LD420 Series

Summary of Contents for Lorex L15LD420 Series

  • Page 1 LOREX CLIENT 2.2 Integrated Remote Agent Software Instruction Manual English Version 1.0 MODEL: L15LD420 / L17LD420 Series www.lorexcctv.com © Copyright 2008 LOREX Technology Inc.

  • Page 2: Table Of Contents

    Table of Contents Table of Contents System Requirements ... 3 Lorex Integrated Remote Agent Software Installation ... 4 Integrated Remote Agent Software - Main Screen ... 6 1. IRS Setup ... 7 2. The H.264 Viewer ... 9 3. Search ... 11 4.

  • Page 3: System Requirements

    Audio and PTZ functions over the Internet (WAN). Please refer to the Lorex Client 2.2 Software User Guide included with your Observation System for further details. Visit the Lorex support website at http://www.lorexcctv.com for information on Windows XP Home Edition...

  • Page 4: Lorex Integrated Remote Agent Software Installation

    • Double Click the CD-ROM DRIVE (Drive Letter will vary depending on the number of drives in your computer) • Double Click the LOREXCLIENT.EXE file (may appear as LOREX CLIENT with no file extension, depending on your system settings. The Installation Process will begin.

  • Page 5: Program Shortcuts

    NOTE: Make sure to close all open programs and save any open files before rebooting the system. Program Shortcuts • Start Menu - Programs - Lorex Client 2.2 Lorex Internet Remote Software • Desktop Shortcut for: Lorex Internet Remote Software...

  • Page 6: Integrated Remote Agent Software - Main Screen

    Integrated Remote Agent Software - Main Screen Integrated Remote Agent Software - Main Screen The Lorex Client allows you to remotely connect to your system, and view live images. 1. IRS Setup 4. Backup 7. Exit 1. IRS Setup - Used to configure the System Remote Access Settings. A remote location must be configured, and a connection made to the system prior to using the H.264 Viewer, Search,...

  • Page 7: Irs Setup

    1. IRS Setup The IRS Setup is Used to configure the System Remote Access Settings. A remote location must be configured, and a connection made to the system prior to using the H.264 Viewer, Search, Backup or Remote Setup options. 1.
  • Page 8 1. IRS Setup Registering a Site IP SETUP / CONNECTION: 1. ADDRESS - Enter the IP address or DDNS Address for the System: • Internal IP Address - If using the software within the same network, enter Internal Address 192.168.1.104) •...

  • Page 9: The H.264 Viewer

    2. The H.264 Viewer The H.264 viewer is used to remotely monitor the system using H.264 video compression. The IRS Setup must be configured and connected prior to using the H.264 Viewer. 1. Main Screen View 4. Status Window 1. Main Screen Camera View - Displays the cameras in live view. 2.
  • Page 10 2. The H.264 Viewer 1. Main Screen View 4. Status Window 3. Connection Information - The Connection Information will automatically be populated once it has been entered into the IRS Setup (and a connection to the System has successfully been established).

  • Page 11: Search

    3. Search The Search window is used to search through previously recorded data on the Remote System. The IRS Setup must be configured and connected prior to using the Search Player. 1. Main Screen View 4. Screen Views 7. Control Buttons 1.
  • Page 12 3. Search 1. Main Screen View 4. Screen Views 7. Control Buttons 7. Control Buttons - Used to connect or disconnect from a configured System, configure the data transfer settings and display the list of searchable Events. • Connect - Click the Connect Button to establish a connection to the Remote System (must be configured in the IRS Setup first).

  • Page 13: Backup

    4. Backup The Backup window is used to create a local backup of the System date to the PC. The IRS Setup must be configured and connected prior to using the Backup Application. 1. Connection Information 4. Backup Status 1. Connection Information - Enter the System Connection information, including: •...

  • Page 14: Backup Procedure

    4. Backup 1. Backup Information 4. Backup Status 3. DVR Server Information - Displays the information from the Remote System: • Recorded Start Time: Displays the recorded start time. • Recorded End Time: Displays the recorded end time. • Update Button: Update the recorded time. 4.

  • Page 15: Player

    5. Player The Player allows you to playback data on your PC which was previously retrieved from your System, or backed up to USB Thumbdrive or removable hard drive. You do not need a connection through the IRMS Setup to use this application. 1.
  • Page 16 5. Player 1. Main Screen Camera View 4. Current Time Display 7. Control / File Buttons 7. Control / FIle Buttons - Use the control buttons to Open a file, edit the image, save the video to an AVI format, or close the program: •...
  • Page 17 Using the Edit Tool Note: Select a single channel to use the Edit functions - this will not work in QUAD View. 1. CONTRAST • Increase contrast. • Decrease contrast. 2. BRIGHTNESS • Increase brightness. • Decrease brightness. 3. SHARPNESS •...

  • Page 18: Remote Setup

    6. Remote Setup 6. Remote Setup The Remote Setup is used to change the settings on the Remote System. The IRS Setup must be configured and connected prior to using the Remote Setup Application. 1.Configuration Display Window - Displays the System Settings (once a connection to the Remote System has been established).
  • Page 19 Configuration / Buzzer: Configure the Buzzer options for the System. • Key Tone: Turns the System keypad beeping ON or OFF. • Video Loss: Turns the buzzer on when a Video Loss is detected. • Alarm Active: Turns the buzzer on when an Alarm is detected.
  • Page 20 6. Remote Setup Record / Record Configuration: Configures the recording settings for all channels. • Quality: Set the quality to Normal, High or Highest. • Framerate: Set the Frame Rate to 1, 2, 3, 5, 7, 10, 15 or 30 FPS. •...
  • Page 21 External / Audio: Configures the audio settings for the System. Audio Setup: Select a channel with Audio: • Input Volume: Set the Audio Input volume for the Selected channel. • Output Volume: Set the output volume for the System. Click the Update button to change the Remote Settings.

  • Page 22: Appendix #1 - Setting Up Remote Viewing

    (for remote viewing outside your network) Network Setup / Remote Access Overview The System can be remotely controlled using your existing network and the Lorex Client 2.2 soft- ware or Internet Explorer. 1. Connect the System to the Router using the supplied Ethernet Cable. Power the System on.

  • Page 23: Network Checklist

    Network Checklist The following checklist is provided to assist you in confirming that all steps have been successfully performed during Network Setup. Use this checklist in conjunction with the steps outlined on the following pages. 1. I have the following: •...
  • Page 24 Appendix #1 - Setting up Remote Viewing 5. I have enabled PORT FORWARDING on my Router for: • Port 80 • Port 50000 NOTE: Each Router is different, therefore the port forwarding settings will vary by model. Please visit us on the web at http://www.lorexcctv.com/support common router types.

  • Page 25: Ip & Mac Address

    IP & MAC Address 1. Access the Main Menu Setup screens, and navigate to the SYSTEM MENU - EXTERNAL DEVICE - TCP/IP SETUP - IP SETUP option. 2. Record the MAC Address of your system. This information is NECESSARY for the DDNS Setup process.

  • Page 26: Network - Router Port Forwarding

    Appendix #1 - Setting up Remote Viewing Network - Router Port Forwarding You will need to enable port forwarding on your Router to allow for external communications with your System for ports: • TCP/IP PORT 50000 • WEB PORT 80 Computers, Systems, and other devices inside your network can only communicate directly with each other within the internal network.

  • Page 27: Network - Setting Up Your Ddns Account

    Network - Setting Up Your DDNS Account Lorex offers a free DDNS service for use with your System. A DDNS account allows you to set up a web site address that points back to your Local Network. The following outlines how to set up your free DNS account.
  • Page 28 6. Your Account information will be sent to you at the E-mail Address you used in Step 3. DDNS Server Name: Domain Name: User ID: Password: You will need this information for remote access to your System. Remember to record YOUR information before clicking on the Create New Account link. LOREX myurl tomsmith1 (your password)
  • Page 29 Dear A, Thank you for activating your free Dynamic DNS account for your Lorex DVR Combo. Once you have set up your Lorex device and configured your network, you will be able to view your video images from anywhere in the world using the URL shown at the end of this message.
  • Page 30 Appendix #1 - Setting up Remote Viewing 2. Log into the Lorex DDNS Website at http://www.lorexddns.net and enter your Username and Password. Click the ACTION button located on the console to display a copy of the Configuration email:...

  • Page 31: Ddns Setup

    Once the DDNS settings have been configured online, the information must be entered on the Observation System to allow for remote connection via the Lorex Client 2.2 Software (or through Internet Explorer): 1. Access the Main Menu Setup screens, and...

  • Page 32: Appendix #2 - Remote Viewing With Internet Explorer

    INSTALL button to complete the setup process. NOTE: Many factors impact the performance of your web browser such as security settings, popup blockers, firewall settings, routers, and other network conditions that are specific to the end user. Lorex recommends using the included Lorex Client software.

  • Page 33: Web Player Interface Screen

    Web Player Interface Screen The Web Player functions in the same way as the H.264 Viewer. Please refer to the H.264 Player section of this manual for details. 1. Main Screen View 4. Status Window 1. Main Screen Camera View - Displays the cameras during video playback. 2.
  • Page 34 It’s all on the web Product Information User Manuals Quick Start Guides VISIT www.lorexcctv.com LOREX Technology Inc. Specification Sheets Software Upgrades Firmware Upgrades www.lorexcctv.com...
