Summary of Contents for Sleipner GW-1

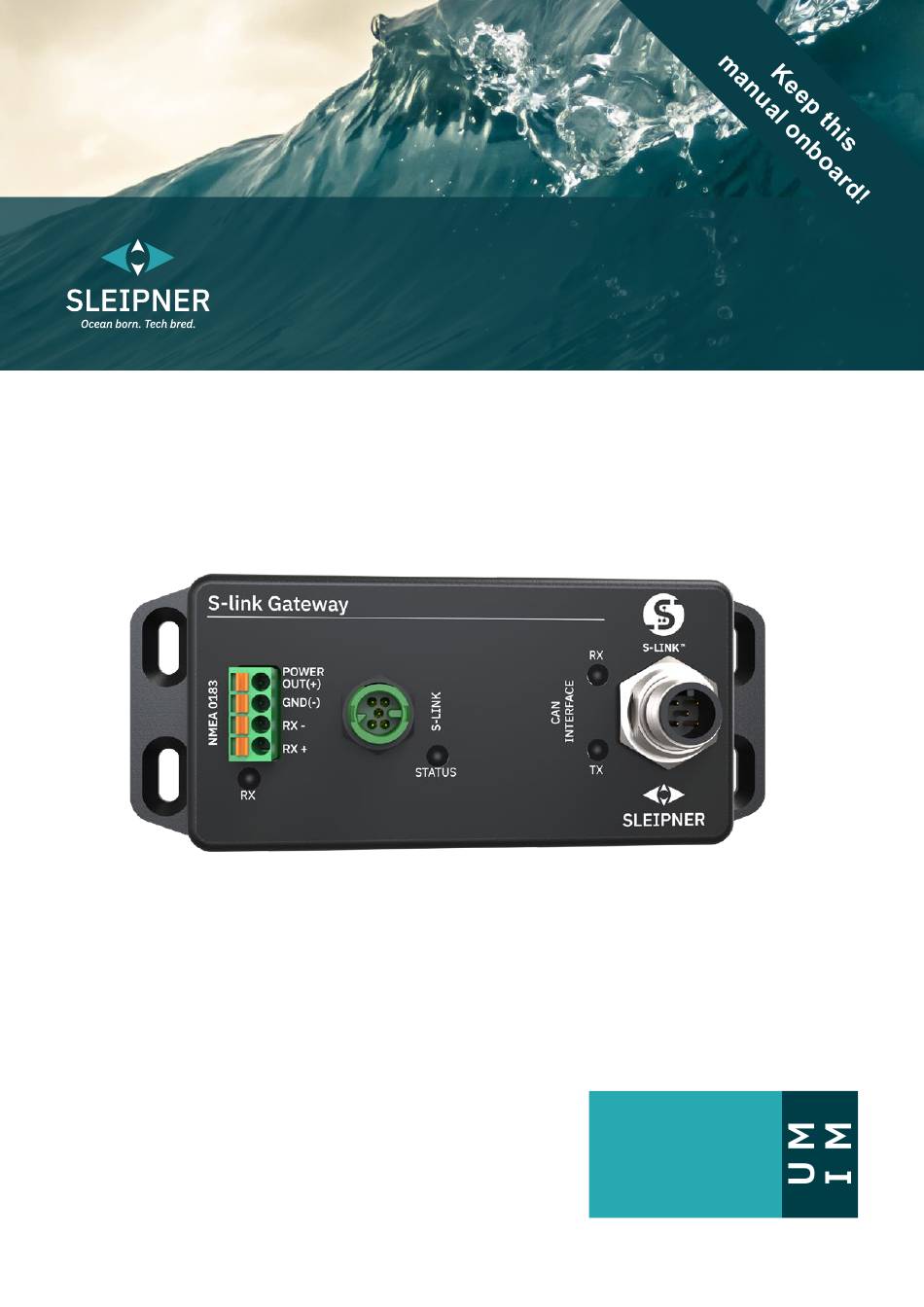

- Page 1 User Manual Including Installation For S-Link Gateway GW-1 DOCUMENT ID: SLEIPNER GROUP 3057 REVISION: P.O. Box 519 DATE: N-1612 Fredrikstad 2022 Norway LANGUAGE: www.sleipnergroup.com To download your language go to www.sleipnergroup.com...
-
Page 2: Table Of Contents
NMEA0183 Interface ....................................6 Installation Guide Responsibility of the Installer ..................................7 S-Link Gateway Installation ..................................8 GW-1 Gateway Measurements .................................. 9 Technical Specifications ..................................... 9 Typically NMEA2000 Connection Diagram .............................. 10 Service and Support ................................11 Product Spare Parts and Additional Resources ........................11 Warranty Statement ................................ -
Page 3: Installation Manual Warning
Failure to follow the considerations and precautions can cause serious injury, damage and will render all warranties given by Sleipner Motor as VOID. MC_0411 Gateway S-Link 3057 2022... -
Page 4: Introduction

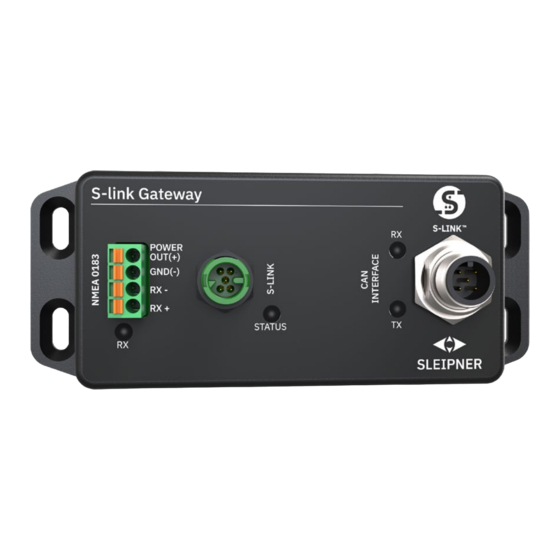

! Please refer to the graphic for special considerations relating to your model ! S-Link gateway GW-1 is a device for connecting NMEA2000 CAN bus equipment to the S-Link bus. Connect an S-Link spur cable from the gateway to S-Link backbone, and non S-Link equipment to the CAN Interface M12 male connector or NMEA0183 GPS antenna to the NMEA0183 connector. -
Page 5: Can Interface
Connection The GW-1 does not feed any power to the CAN-bus and connected devices has to be power feed from elsewhere. The GW-1 does not include any termination resistor on the M12 male connector output, so terminating resistors is required on the CAN-bus. CAN-L & CAN-H are galvanic isolated. Use standard NMEA 2000 micro cable to connect to the CAN interface connector. -
Page 6: Nmea0183 Interface
GW-1 will only forward one of the NMEA2000 GPS antenna signal to S-link if more than one antennas is present on the NMEA2000 bus. If more than one GW-1 have GNSS signal(s) then GW-1’s will prioritize on antenna type from the list above and only one GW-1 will broadcast GNSS signals on the S-link bus. -
Page 7: Installation Guide
Sleipner products. If you are interfacing the S-Link™ bus by agreement with Sleipner through a designated Sleipner supplied interface, you are still required to install at least one original Sleipner control panel to enable efficient troubleshooting if necessary. -
Page 8: S-Link Gateway Installation
S-Link Gateway Installation MC_0432 Place the PHC-3 unit on the welded frame of the hydraulic system and attach using 4 M5x16 screws Attach the required cables to the PHC-3 MG_0486 Gateway S-Link 3057 2022... -
Page 9: Gw-1 Gateway Measurements
GW-1 Gateway Measurements MC_0367 GW-1 Measurement Measurement description code mm inch Total Gateway Height Gateway Height 25.5 Gateway Width Total Gateway Length 126.5 Gateway Length MG_0427 Technical Specifi cations MC_0368 Supply Voltage 8-31VDC, Powered from S-Link Power Consumption CAN INTERFACE M12 male connector CAN 2.0B, baud rate 250Kb... -
Page 10: Typically Nmea2000 Connection Diagram
Typically NMEA2000 Connection Diagram MG_0426 Gateway S-Link 3057 2022... -
Page 11: Service And Support
11. This warranty gives you specific legal rights, and you may also have other rights which vary from country to country. Patents MC_0024 At Sleipner we continually reinvest to develop and offer the latest technology in marine advancements. To see the many unique designs we have patented visit our website www.sleipnergroup.com/patents Gateway S-Link... - Page 12 © Sleipner Group, All rights reserved The information given in the document was right at the time it was published. However, Sleipner Group cannot accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifi cations without notice.
