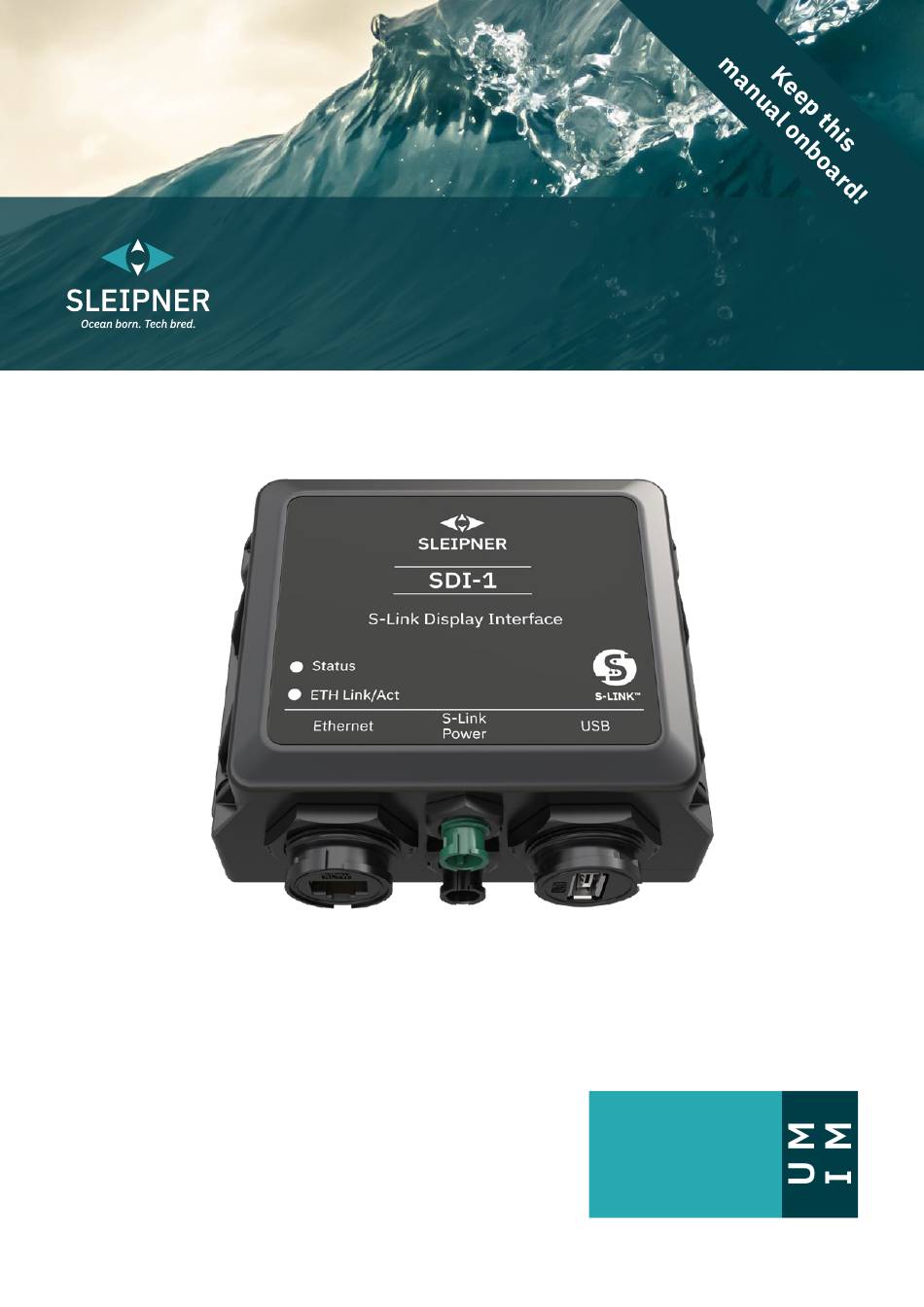

User Manual Including Installation Guide for S-Link Display Interface, SDI-1 DOCUMENT ID: SLEIPNER GROUP 7231 REVISION: P.O. Box 519 DATE: N-1612 Fredrikstad 2023 Norway LANGUAGE: www.sleipnergroup.com To download your language go to www.sleipnergroup.com...

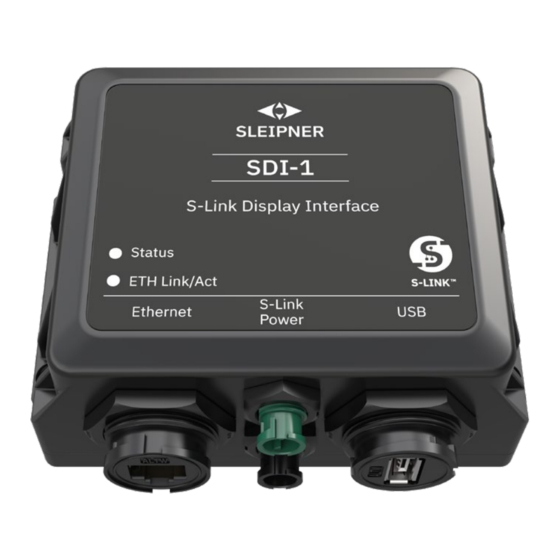

Product Description MC_0543 S-Link Display Interface (SDI-1) can be used to display status and operational information from Sleipner products on Multi-Function Displays (MFD). All Sleipner S-Link compliant thrusters and stabilizer systems are supported by SDI-1. Compatibility SDI-1 supports MFDs from the following manufacturers: •...
SDI-1 Sleipner App MC_0628 After correct installation and powering up SDI-1 the Sleipner app will appear on MFDs compatible with SDI-1. See MFD user manual for information on how to start third party apps and confi guring screen layout. The Sleipner app offers two dashboards, displaying either thruster or stabilizer information.
Retractable Thruster Deployment and retracting of retractable thrusters is controlled by turning a control panel ON or OFF. When the control panel is turned ON, retracta- ble thrusters are deployed. The Deploy symbol is displayed in the dashboard view until the thruster is fully deployed. Turning OFF the panel will fully retract the thruster and the Retract symbol is displayed in the dashboard view until the thruster is fully retracted.
If a device connected to the S-Link bus enters an alarm state, an alarm message is broadcasted on the S-Link bus. If an alarm message is detected by SDI-1 a notifi cation will appear on the MFD and additional alarm information will be available. The Sleipner app must be running on the MFD to enable alarm notifi cations.
SDI-1 Settings Menu Confi guration settings for stabilizer are available from the Settings Menu. In addition SDI-1 FW version, HW version and serial number can be found in the About section of the Setting Menu. SDI-1 Firmware Upgrade MC_0547 The USB port on SDI-1 can be used for fi rmware upgrade by following the steps below: Download the latest fi rmware to a USB flash drive.
Please see the user manual of your S-Link compliant control panel for more information on how to access Fault Code information in case of an alarm situation. All Sleipner S-Link compliant products have product specifi c Fault Codes. For legacy reasons some control panels display Generic Fault Codes for certain products.
PHC-3 Fault Codes MC_0117 Fault Code Fault Name Fault Description Action 106.202.0 Emergency Stop Bow - Bow emergency stop is button activated -Release bow emergency stop 106.203.0 Emergency Stop Bow Starboard - Bow Starboard emergency stop is button activated -Release bow starboard emergency stop 106.204.0 Emergency Stop Bow Port - Bow Port emergency stop is button activated...
Page 10
PHC-3 Fault Codes MC_0117 Fault Code Fault Name Fault Description Action "-Check for open circuit, power consumption < 5.0 Watt 10512.0.13 PHC DOUT LS DUMP - Open Circuit LS-Dump valve open circuit -System wrong confi gured with thrusters, parameter 2001 or 2101"...
Action 100.0.0 System Error - - System Error Contact Sleipner Dealer Verify that the correct battery was chosen for this system and that 153.0.151 Supply Voltage - Self-Test Fault Failed to determine voltage level of the system / Out of range.
PPC Fault Codes MC_0538 Fault Code Fault Name Fault Description Action 10000.0.11 Motor Temp - Level High Motor temperature is higher than 120C/248F - Motor must cool down to below 110C/230F 10000.0.13 Motor Temp - Open Circuit Motor temperature sensor open circuit -Check for open circuit on the temperature sensor on the motor 10000.0.16 Motor Temp - Short Circuit...
Any attempt to directly control or connect into the S-Link™ control system without a designated and approved interface will render all warranties and responsibilities of all of the connected Sleipner products. If you are interfacing the S-Link™ bus by agreement with Sleipner through a designated Sleipner supplied interface, you are still required to install at least one original Sleipner control panel to enable efficient troubleshooting if necessary.
SDI-1 Installation MC_0546 Fasten the SDI-1 box to a solid surface using four mounting screws. Connected a S-Link SPUR Cable between SDI-1 and a T-connector on the S-Link BACKBONE Cable. See S-Link System Description chapter for detailed information about the S-Link system. Connect an Ethernet cable between SDI-1 and the Multi-Function Display (MFD).
MC_0120 S-Link is a CAN-based control system used for communication between Sleipner products installed on a vessel. The system uses BACKBONE Cables as a common power and communication bus with separate SPUR Cables to each connected unit. Only one S-Link POWER cable shall be connected to the BACKBONE Cable.
11. This warranty gives you specific legal rights, and you may also have other rights which vary from country to country. Patents MC_0024 At Sleipner we continually reinvest to develop and offer the latest technology in marine advancements. To see the many unique designs we have patented visit our website www.sleipnergroup.com/patents SDI-1...
CE Declaration of conformity (DoC) Sleipner Motor AS We, the manufacturer: Arne Svendsens gate 6-8, NO 1612 Fredrikstad, Norway With ISO 9001 certificate: 1484-2007-AQ-NOR-NA, issued by DNV-GL Declare that the product: Product Description: S-Link Display Interface Model Number: SDI-1 Subject to installation, maintenance and use conforming to their intended purpose, is in conformity with the provisions of the following EU Directives: •...
UK Declaration of conformity (DoC) Sleipner Motor AS We, the manufacturer: Arne Svendsens gate 6-8, NO 1612 Fredrikstad, Norway With ISO 9001 certificate: 1484-2007-AQ-NOR-NA, issued by DNV-GL Declare that the product: Product Description: S-Link Display Interface Model Number: SDI-1 Subject to installation, maintenance and use conforming to their intended purpose, is in conformity with the provisions of the following UK Regulations: •...
