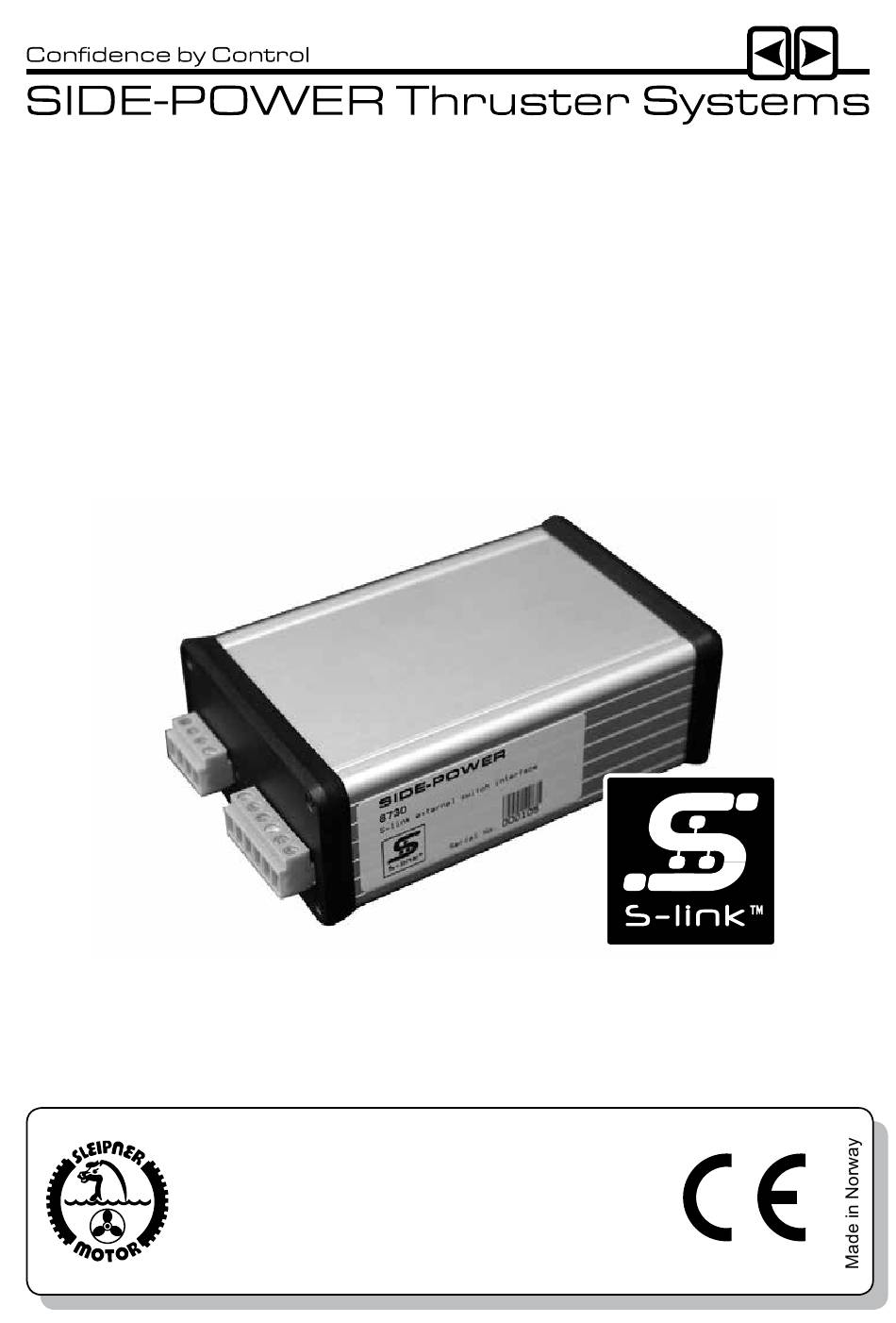

- Page 1 Installation guide S-link external switch interface 8730B/8730S SLEIPNER MOTOR AS P.O. Box 519 N-1612 Fredrikstad Norway Document id: 2071 www.side-power.com Revision: © Sleipner Motor AS - 2018...
-
Page 2: Installation
Se manual of the panel for more details. If you have two thrusters bow and stern, then you need two 8730. One 8730B for bow and one 8730S for stern. You can change instance of 8730 B & S with a panel, see manual for panels for how to changing instance of 8730 B &... -
Page 3: Top View
Cut here Fig. 1 STERN 8730B Wiring diagram: S-link 8730 Cut off wires from BOW connector Non-terminated wires RED BLACK RED GREY BLUE YELLOW Foot Switch Foot Switch Port Starboard RED BLACK RED GREY BLUE YELLOW Foot Switch Foot Switch... - Page 4 8730B Wiring diagram - With Touch panel S-link 8730 RED BLACK GREY BLUEYELLOW Foot Switch Foot Switch Port Starboard TOP VIEW TOUCH PANEL Installation guide S-link external switch interface 8730 Page 4...
- Page 5 8730S Wiring diagram: 8730 8730 Cut off wires from STERN connector GREY/ BLUE/ YELLOW WHITE WHITE Foot Switch Foot Switch Port Starboard Cut off wires from STERN connector GREY/ BLUE/ YELLOW Radio Remote WHITE WHITE Foot Switch Foot Switch Port Starboard Radio Remote TOP VIEW...
- Page 6 Using switch interface 8730 with other control units: The 8730 needs to be activated for the switch inputs to work. Connect the control signals to the 4 pin connector as shown on wiring diagram below. Solution 1: Use a control panel to activate 8730 by turning the panel ON. When the last panel are turned OFF by timeout or OFF button the 8730 is deactivated.
- Page 7 Sample S-link system setup: Installation guide S-link external switch interface 8730 Page 7...
- Page 8 Wiring example: Side-Power retract thruster and Side-Power ‘on-off’ thruster combined: Installation guide S-link external switch interface 8730 Page 8...
-
Page 12: Worldwide Sales And Service
SLEIPNER MOTOR AS P.O. Box 519 N-1612 Fredrikstad Norway The information given in the document was correct at the time it was published. However, Sleipner Motor AS can not accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifi cations without notice. Therefore, Sleipner Motor AS can not accept liability for any possi-...
