DirekTronik 20111545 Operation Manual

8x8 hdmi2.0 matrix
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

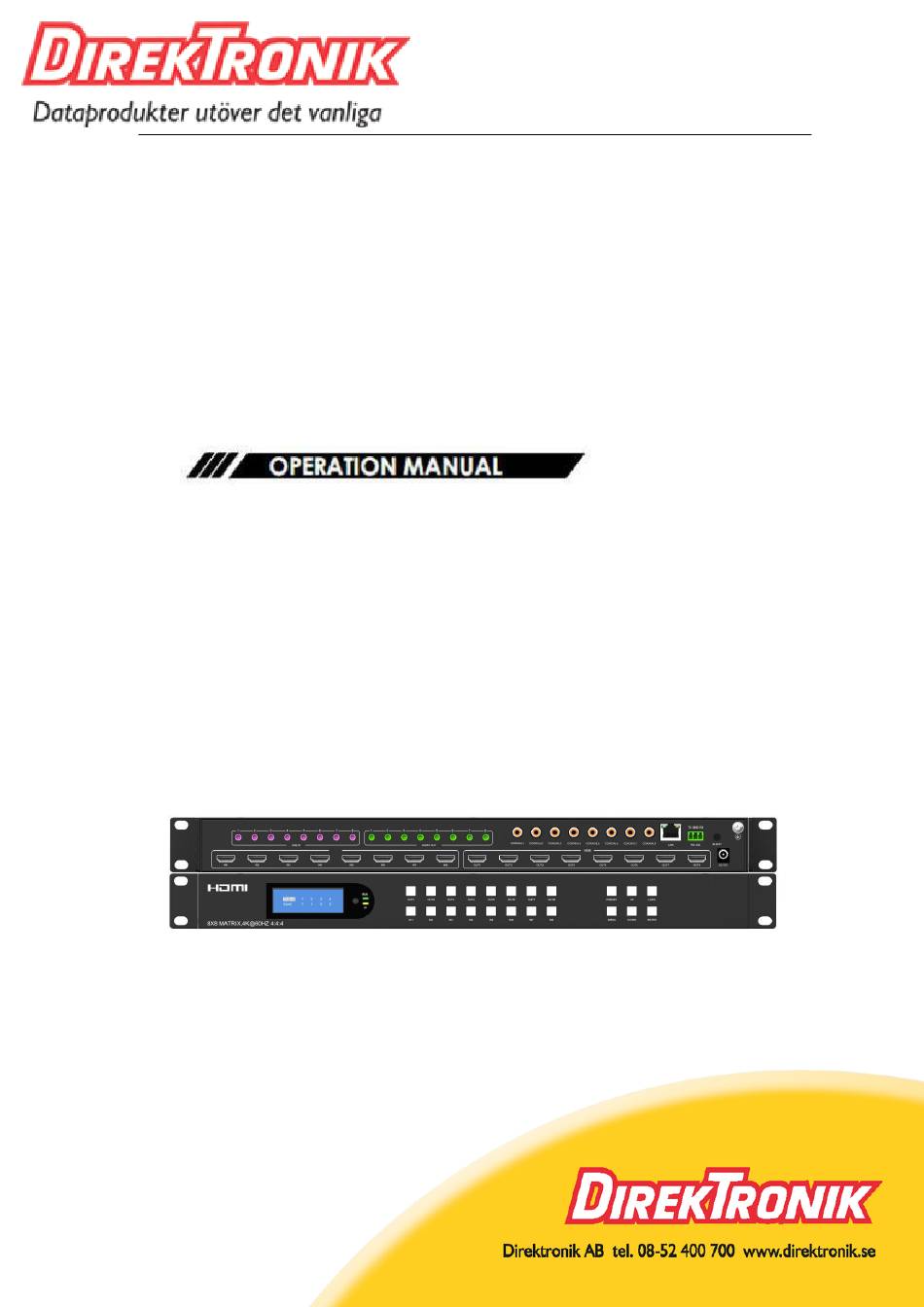

Best.nr: 20111545
Operating Instruction
8x8 HDMI2.0 Matrix
Support 4K@60hz YUV4:4:4, 18Gbps, HDR
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 20111545 and is the answer not in the manual?

Questions and answers

Related Manuals for DirekTronik 20111545

Summary of Contents for DirekTronik 20111545

  • Page 1 Best.nr: 20111545 Operating Instruction 8x8 HDMI2.0 Matrix Support 4K@60hz YUV4:4:4, 18Gbps, HDR...
  • Page 2 Operating Instruction Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply.

  • Page 3: Table Of Contents

    Operating Instruction CONTENTS 1. INTRODUCTION..........................4 2. APPLICATIONS...........................4 3. PACKAGE CONTENTS........................4 4. SYSTEM REQUIREMENTS....................... 4 5. FEATURES............................5 6. SPECIFACATIONS..........................5 7. OPERATION CONTROLS AND FUNCTIONS................. 6 7.1 Front Panel ...........................6 7.2 Rear Panel ............................ 6 7.3 LCD screen introduction......................7 7.3.1 Input / output channel key operation................7 7.3.2 Video switching operation....................

  • Page 4: Introduction

    Operating Instruction 1. INTRODUCTION This 8x8 4k HDMI Matrix supports the transmission of video (resolutions up to 4K2K@60Hz, HDCP 2.2, HDMI2.0) and multi- channel digital audio from 8 HDMI sources to 8 HDMI outputs and 8 SPDIF Output. This matrix supports high resolution digital audio formats such as Dolby TrueHD and DTS-HD Master Audio as well as 3D video content.

  • Page 5: Features

    Operating Instruction 5. FEATURES • HDMI 2.0 version (Support 4K@60Hz YUV4:4:4) • Support 3D • Bandwidth upto 18Gbps • HDCP1.4/2.2 compliant • Support HDR10, HLG, Dolby Vision • 8xHDMI Input, 8xHDMI output • 8xAnalog audio input and 8xAnalog audio output, and 8xS/PDIF audio output •...

  • Page 6: Operation Controls And Functions

    Operating Instruction 7. OPERATION CONTROLS AND FUNCTIONS 7.1 Front Panel ① LCD: Showing Matrix information ② Output button OUT1~8 ③ Input button IN1~8 ④ Function button: PRESET; MENU; UP; DOWN; LOCK; ENTER 7.2 Rear Panel AUDIO IN (Analog x8) ⑥ IR port AUDIO OUT (Analog x8) ⑦...

  • Page 7: Lcd Screen Introduction

    Operating Instruction 7.3 LCD screen introduction Device Startup interface(picture-1) Channel interface (picture-2) 7.3.1 Input / output channel key operation Channel Button method Any Key The first operation of the button can wake up the screen and complete the key function while the blue button light will light up.

  • Page 8: Video Switching Operation

    Operating Instruction 7.3.2 Video switching operation The signal switch includes 8 free switching channels, which can be configured as input/output according to the requirements, forming a matrix of 1 x 8 ~ 8 x 1, which can switch any input. Signal to 1 channel output or all channel output.
  • Page 9 Operating Instruction Output port menu interface(picture-5) Output video switch and on/off Switch any output to one input, or switch all outputs to one input; Default 8×8 matrix, 8 inputs and 8 outputs, one to one output Operation instructions: ①Select“Output”in the menu and press“ENTER” ②Then use “UP”...

  • Page 10: Output Audio On/Off Control

    Operating Instruction Input port select interface(picture-7) On/off select interface(picture-8) 7.3.3 Output Audio on/off control On/off output audio, include HDMI, Analog, SPDIF, ARC; ARC function is off by default. Operation instructions: (turn off other audio is same) ①Select“Output”and press“ENTER” ②Press “UP” “DOWN” button to select “Output1~8 or All(meas all outputs)”. The bottom color of the selected output port becomes white.

  • Page 11: Input Signal Control

    Operating Instruction Audio control interface(picture-9) Output audio on/off interface(picture-10) 7.3.4 Input signal control Input signal control interface has nine sub-menus:Input1~8 and All(means all inputs), The third level sub-menu includes Video, Audio, and EDID settings. Input option interface(picture-11)
  • Page 12 Operating Instruction Input mode interface(picture-12) 1)On/off input video Turn on/off input video settings Operation instructions: ①Select“Input”, Press“ENTER” ②Press “UP” “DOWN” button to select“Input1~8 or All”, Press“ENTER” ③Press “UP” “DOWN” button to select“Video”, Press“ENTER” ④Select“Onoff”, Press“ENTER” ⑤Press “UP” “DOWN” button to select“On/Off”, On/off input video done Input video control interface(picture-13) On/off input video...
  • Page 13 Operating Instruction 2) On/off input audio and choose audio source Choose HDMI input audio or Analog audio embedded and On/off input audio Operation instructions: ①Select“Input”, Press“ENTER” ②Press “UP” “DOWN” button to select“Input1~8 or All”, Press“ENTER” ③Press “UP” “DOWN” button to select“Audio”, Press“ENTER” ④Press “UP”...
  • Page 14 Operating Instruction 7.3.5 EDID Settings EDID Mode can set each input’s EDID, Include: Default EDID; User EDID; Copy EDID; 1-4 are Default EDID, 5-8 are User EDID, 9-16 are Copy output 1-8 EDID, 17 is temporary EDID. Operation instructions: ①Select“Input”, Press“ENTER” ②Press “UP”...

  • Page 15: Preset Scene Settings

    Operating Instruction 7.4 Preset scene settings Preset can save video, audio, EDID, system settings, support 8 differences presets, It can be changed and called by web page, command and panel buttons. The default preset is same as the factory setting PTP.

  • Page 16: System Configuration

    Operating Instruction Preset operation interface(picture-22) 7.5 System configuration System configuration can set the device's network parameter, RS-232 baud rate, LCD screen, Menu, User EDID , system parameter. System configuration interface(picture-23) Network parameter settings Set DHCP/IP/MASK/GW/Port/DNS/MAC 1）DHCP: Default Off(Static), After turn on(Dynamic), IP/MASK/GW are unable to set. 2）IP address: Default 192.168.1.168 3）MASK address: Default 255.255.255.0 4）GW: Default 192.168.1.1...
  • Page 17 Operating Instruction ①Select“Config”, Press“ENTER” ②Press “UP” “DOWN” button to select“Network”, Press“ENTER” ③Press “UP” “DOWN” button to select“DHCP”, Press“ENTER”, you can select“Yes/On”to turn on/off DHCP ④Press “MENU”, Select“IP/MASK/GW/Port/DNS/MAC”, Press“ENTER” ⑤Such as change IP address: After select IP, enter and select Part 1~4, then Set IP address parameters for each part;...

  • Page 18: Rs232 Parameter Settings

    Operating Instruction IP parameter set interface(picture-27) Network parameter display interface(picture-28) 7.5.1 RS232 parameter settings It can change device’s baud rate, but Data/Stop/Parity are used for checking and cannot be set 1）Baud: device’s baud rate provide 6 choices, 115200, 57600, 38400, 19200, 9600, 4800. The device is 115200 by default.

  • Page 19: Lcd Screen Settings

    Operating Instruction RS232 control interface(picture-29) Baud rate set interface(picture-30) Data display interface(picture-31) 7.5.2 LCD screen settings You can set LCD screen's bright and Screen rest time; Bright is 8 by default, Screen rest time is 30S by default.
  • Page 20 Operating Instruction Operation instructions: ①Select“Config”, Press“ENTER” ②Press “UP” “DOWN” button to select“LCD”, Press“ENTER” ③Press “UP” “DOWN” button to select“Bright”, Press“ENTER” ④Press “UP” “DOWN” button to select LCD brightness level, The higher the brightness level, the greater the brightness, otherwise the lower the brightness. ⑤Press “MENU”, then press “UP”...

  • Page 21: Menu Settings

    Operating Instruction 7.5.3 Menu settings You can set menu time, Select-run, LV-Read. 1）Time: No next operation within 30s and return to the channel interface. 2）Select-run: The default is Disable, Press the button to switch parameters to complete the setting. No need press “Enter”. 3）LV-Read: The default level is 1.

  • Page 22: User Edid Settings

    Operating Instruction Select-run settings interface(picture-37) LV-Read settings interface(picture-38) 7.5.4 User EDID settings You can save default EDID, output EDID and temporary EDID to the User EDID. Operation instructions: ①Select“Config”, Press“ENTER” ②Press “UP” “DOWN” button to select“User EDID”, Press“ENTER” ③Press “UP” “DOWN” button to select“User1~4 or ALL”, Press“ENTER” ④Press “UP”...

  • Page 23: System Settings

    Operating Instruction User EDID choose interface(picture-40) EDID information display interface(picture-41) 7.5.5 System settings You can set device's Reboot, Timing switch, Factory data reset. 1) Reboot: Restart device Operation instructions: ①Select“Config”, Press“ENTER” ②Press “UP” “DOWN” button to select“System”, Press“ENTER” ③Press “UP” “DOWN” button to select“Reboot”+Press“ENTER” ④Press “UP”...
  • Page 24 Operating Instruction Device reboot interface(picture-43) 2) Timing switch settings: The default is Endless, no timing Settings; The timing units are S/M/H/D, Second/minute/hour/day Operation instructions: ①Select“Config”, Press“ENTER” ②Press “UP” “DOWN” button to select“System”, Press“ENTER ③Press “UP” “DOWN” button to select“Timing”+ Press“ENTER ④Press “UP”...

  • Page 25: Device Information Query

    Operating Instruction General will restore video/audio/EDID/baud to default. User will restore all settings to default except account. Operation instructions: ①Select“Config”, Press“ENTER” ②Press “UP” “DOWN” button to select“System”, Press“ENTER” ③Press “UP” “DOWN” button to select“General”+Press“ENTER” ④Press “UP” “DOWN” button to select“Yes”, Device factory data reset done. Factory data reset interface(picture-46) General factory data reset...
  • Page 26 Operating Instruction 1）input information: Input connection status, Input resolution, Color gamut color depth, audio format and input HDCP version. 2）output information: output connection status, output resolution, Color gamut color depth, audio format Operation instructions: ①Select“INFO”, Press“ENTER” ②Press “UP” “DOWN” button to select“Input/Output”, Press“ENTER” ③Press “UP”...
  • Page 27 Operating Instruction ①Select“INFO”, Press“ENTER” ②Press “UP” “DOWN” button to select“Device”, Press“ENTER” ③Press “UP” “DOWN” button to select“Device/Versions/Network”, then you can check information. Input information display(picture-51) Input information display(picture-52) Input information display(picture-53) 4) LOG: it used for checking device information: running time, startup times, operation times, runs errors times.
  • Page 28 Operating Instruction Input information display(picture-55)

  • Page 29: Remote Control Description

    Operating Instruction 7.7 Remote Control Description ①Standby mode ②Lock or Unlock panel button ③Choose output from 1~8 ④Choose all the outputs ⑤X:Turn on/off output port which you select ⑥PTP button:Mirror all inputs and outputs (Ex. Input 1 to output 1, input 2 to output 2, etc) ⑦Choose Input from 1~8 ⑧Menu (back to previous option) button ⑨UP button...

  • Page 30: Audio Introductions

    Operating Instruction 8. AUDIO INTRODUCTIONS 8.1 HDMI audio HDMI audio support PCM2.0-7.1/32-192KHZ/16-24bit, Dolby/DTS/Dolby Atmos/DTS-HD, and maximum 7.1 channels, but the supported audio format, channel, and sampling rate depend on the EDID. 8.2 Audio extraction Analog audio only support PCM2.0, 32-192KHZ, 16-24BIT; S/PDIF audio output support PCM/Dolby/DTS, 32-96KHZ, 16-24bit, maximum 5.1 channels 8.2.1 Analog audio extraction ①When the 8×8 matrix is selected for one to one output, the analog audio output can only output the...

  • Page 31: Edid Management

    Operating Instruction 1. HDMI source and TV both need support CEC, TV also need support ARC. You need to turn on the TV and HDMI source CEC and ARC functions. 2. HDMI source connect TV 3. TV's HDMI ARC port connect output 1~8 4.

  • Page 32: Rs232 Control

    Operating Instruction 10. RS232 CONTROL Control software operation: The serial control software is illustrated with SSCOM32 as an example. Basic Settings: Double-click the software in the installation package to run specifically (as shown in figure 1 below) and install the RS232 software on the computer. Enter the main interface of the software, as shown in the figure below.
  • Page 33 Operating Instruction In the parameter configuration area, select the serial port number that the serial line connects to the PC Baud rate: 115200 (default) Data location: 8 Stop bit: 1 Check bit: no Enter Port Command in Send options. Instructions: All commands start from “#”, command head “%c”: “d”...

  • Page 34: Web Control

    Operating Instruction 11. WEB CONTROL 11.1 Address Information Static IP Add： 192.168.1.168 Sub-Mask： 255.255.255.0 Gateway： 192.168.1.1 Dynamic IP TCP/UDP Port TCP 5000; UDP 5001 4657-4E9F-570A (Changes with GUI modules) 11.2 Change the IP address of your PC. 1). Connect the HDMI Matrix and PC to the LAN. 2).
  • Page 35 Operating Instruction Change IP address interface (picture-57)

  • Page 36: Status Interface

    Operating Instruction 6). Select Use the following IP Address for static IP addressing and fill in the details. For TCP/IPv4 you can use any IP address in the range 192.168.1.2 to 192.168.1.254 (excluding 192.168.1.168). Change IP address interface (picture-58) 7). Click OK. 8).

  • Page 37: Input Interface

    Operating Instruction 3. Dvice info: Displays the current name of the device, MCU and HTML of version number(Same as on the screen) 4. “√”show that open or connect normally, “×”show that close or not connected. Status interface (picture-59) 12.1 Input interface Interface introduction: This page is mainly used for renaming input ports, switching video signals (opened by default), switching audio input, selecting EDID, and switching audio source signals.
  • Page 38 Operating Instruction Input interface (picture-60) Operation instructions: 1. Rename: Double click the left mouse button to enter the name editing to customize the name, name modify done. 2. Video/Audio: Click the two-way button to complete the switch setting of input video and audio; Green means on and gray means off.

  • Page 39: Output Interface

    Operating Instruction 5. User EDID selection: ①: Click the white combobox, select EDID, then select user1 ~ 4 in the combobox, and finally click apply, User EDID settings done. ②: Click browse and select the path where the bin file is located, then select user1 ~ 4 in the combobox and finally click Upload.

  • Page 40: Matrix Interface

    Operating Instruction Operation instructions: 1. Double click the left mouse button to enter the name editing to customize the name, the output port name modify done. 2. Click the two-way button to complete the switch setting of output video, audio and ARC function; Green means on and gray means off.

  • Page 41: Cec Control Interface

    Operating Instruction Preset interface (picture-64) Operation instructions: 1. Double click the left mouse button , Click enter to the name edit box, custom name done. 2. Click Clear, scene clear done 3. Click Save, save the current scene 4. Click Call, call the saved scene 12.5 CEC control interface Interface introduction: By web page control the switch of input source or output TV and settings of volume increase and decrease, but the prerequisite is input source and output TV support CEC function;...

  • Page 42: System Interface

    Operating Instruction CEC control interface (picture-65) Operation instructions: 1. Click the selected input or output port 2. Click operation button to complete control 3. Operation instructions:(Signal source and TV must support CEC function and CEC need to be opened) ①Select input, Click left, up, OK, Sony player will react ②Select output, Click on/off, Sony TV will on/off CEC function may be not compatible with some signal sources and TVs in the market.
  • Page 43 Operating Instruction 3. MASK and GW address can be modified, but the prerequisites are same as the IP address. 4. DHCP use two-way button as switch, click directly to open DHCP. Green button means open DHCP, Gray means close DHCP. 5.

  • Page 44: Firmware Upgrade

    Operating Instruction 13. FIRMWARE UPGRADE Operation instructions： 1. Connect PC and Device with RS232, open software UART_ISP_V1.6.exe on PC 2. Click“Refresh” refresh the serial port number and select the correct serial port number 3. Baud data is 115200 by default. 4.

  • Page 45: Connection Diagram

    Operating Instruction 14. CONNECTION DIAGRAM...

  • Page 46: Maintenance

    Operating Instruction MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT SERVICE （1）Damage requiring service: The unit should be serviced by qualified service personnel if: • The DC power supply cord or AC adaptor has been damaged; •...

  • Page 47: Warranty

    Operating Instruction WARRANTY Limited Warranty Limits and Exclusions • If your product does not work properly because of defective materials or workmanship, our Company (referred to as "the warranter" ) will, for the length of the period indicated as below, (Parts(2)Year, Labor(90) Days) which starts with the date of original purchase ("Limited Warranty period"), at its option either(a) repair your product with new or refurbished parts, or (b) replace it with a new of a refurbished product.
