Summary of Contents for DirekTronik 20102284

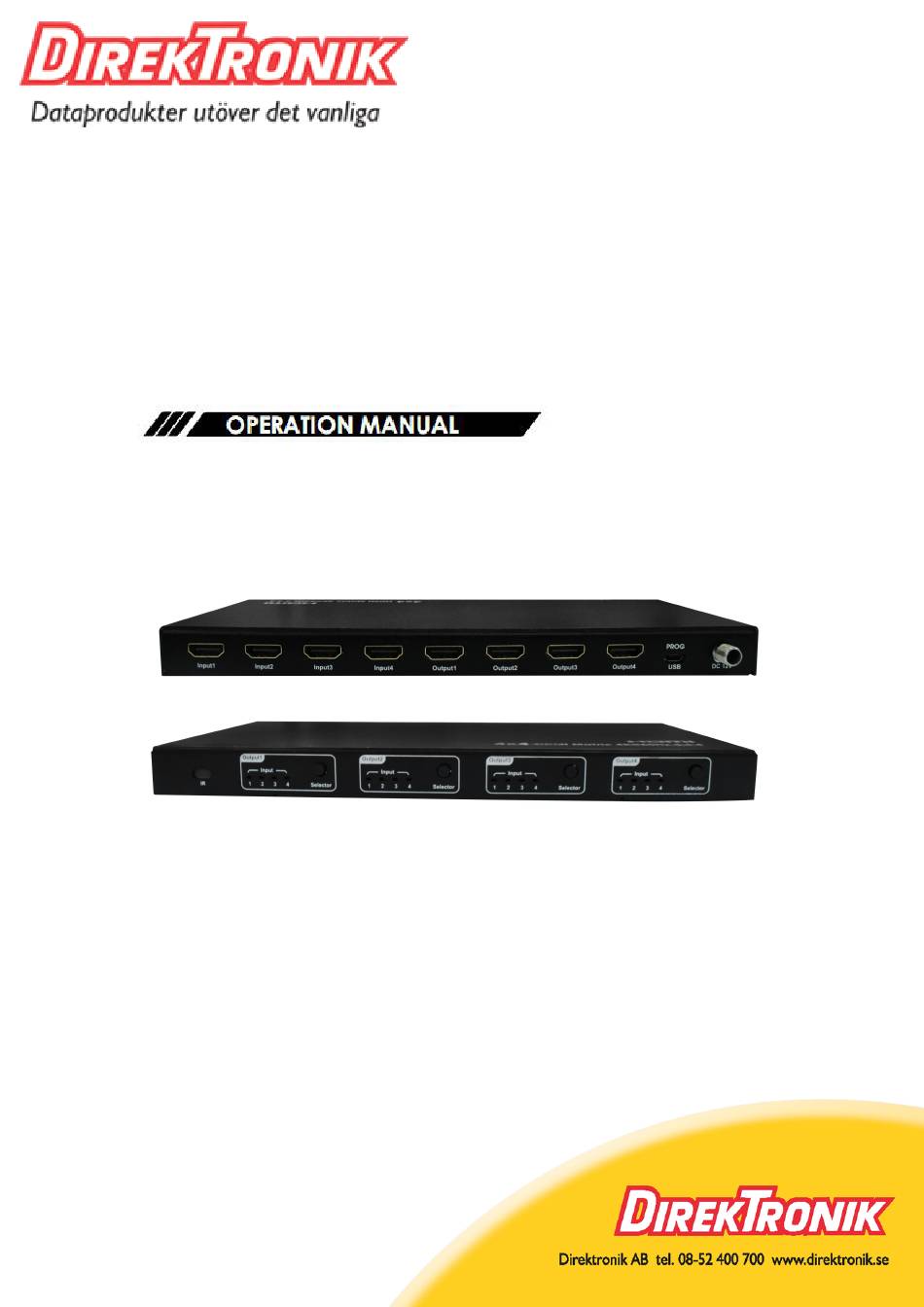

- Page 1 Best.nr: 20102284 4x4 HDMI2.0 Matrix Support 4K@60hz YUV4:4:4, 18Gbps,HDCP2.2...
- Page 2 Operating Instruction Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents
Operating Instruction Table of Contents 1. Features........................4 2. Package Contents....................4 3. Specifications......................4 4. Panel Descriptions....................5 4.1 Front Panel......................5 4.2 Rear Panel.......................5 5. Connecting and Operating..................6 6. Application Diagrams..................6 7. Remote Control Description................6 8. EDID Management....................7 9.Firmware Upgrade....................8 ......................10 Warranty Policy.. -
Page 4: Features
Operating Instructio Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. 1. Features 4×4 HDMI Matrix,4×HDMI Inputs,4×HDMI Outputs ... -
Page 5: Panel Descriptions
Operating Instruction 4. Panel Descriptions 4.1 Front Panel ① IR receive window ② Input1/2/3/4 indicator for output1 or EDID management indicator for input1,short press button to choose input1/2/3/4,long press to enter/exit EDID mode,short press to choose EDID in this mode ③... -
Page 6: Connecting And Operating
Operating Instruction 5. Connecting and Operating 1. Connect source devices to input ports of the matrix 2. Connect HDMI output ports to TV or other HDMI sink devices. 3. Connect 12V POWER supply to DC power socket. 4. Power on the matrix, HDMI sources and displays. 6. -
Page 7: Edid Management
Operating Instruction 8. EDID Management EDID mode:Build-in EDID(default),Copy EDID. There are 8 kinds of EDID groups switch for each input: groups EDID Indicator status EDID instruction 0001 Input1 flickering Def1：4K60HZ-YUV444-8bit/2CH 0010 Input2 flickering Def2：4K60HZ-YUV420-8bit/2CH 0011 Input1 + Input2 flickering Def3：4K30HZ-YUV444-8bit/2CH 0100 Input3 flickering Def4：1080P-YUV444-8bit/2CH... -
Page 8: Firmware Upgrade
Operating Instruction 9.Firmware Upgrade COM port:Micro usb cable connect device to PC COM port; Install and open“UART_ISP_V1.6.exe”upgrade tool in PC; 2). Click “REFRESH”button first,then choose the correct COM port: 3). Set the same baud rate with PC host(default 115200) 4).Type in “A1” in PORT,click and choose PATH with upgrade file then click UPDATA ,wait for green process bar until it display “Succeed”... - Page 9 Operating Instruction Note: 1. You need to disconnect from other devices before upgrading; 2. Do not interrupt the upgrade when upgrading,otherwise the device maybe damaged; 3. When update progress bar stop before successfully finish upgrade,please power off PC host and restart to continue the upgrade.
- Page 10 Operating Instruction MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT SERVICE （1）Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged; (b) Objects or liquids have gotten into the unit;...
- Page 11 Operating Instruction installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or service by anyone other than a Factory Service center or other Authorized Servicer, or damage that is attributable to acts of God. 2) THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY COVERAGE".
