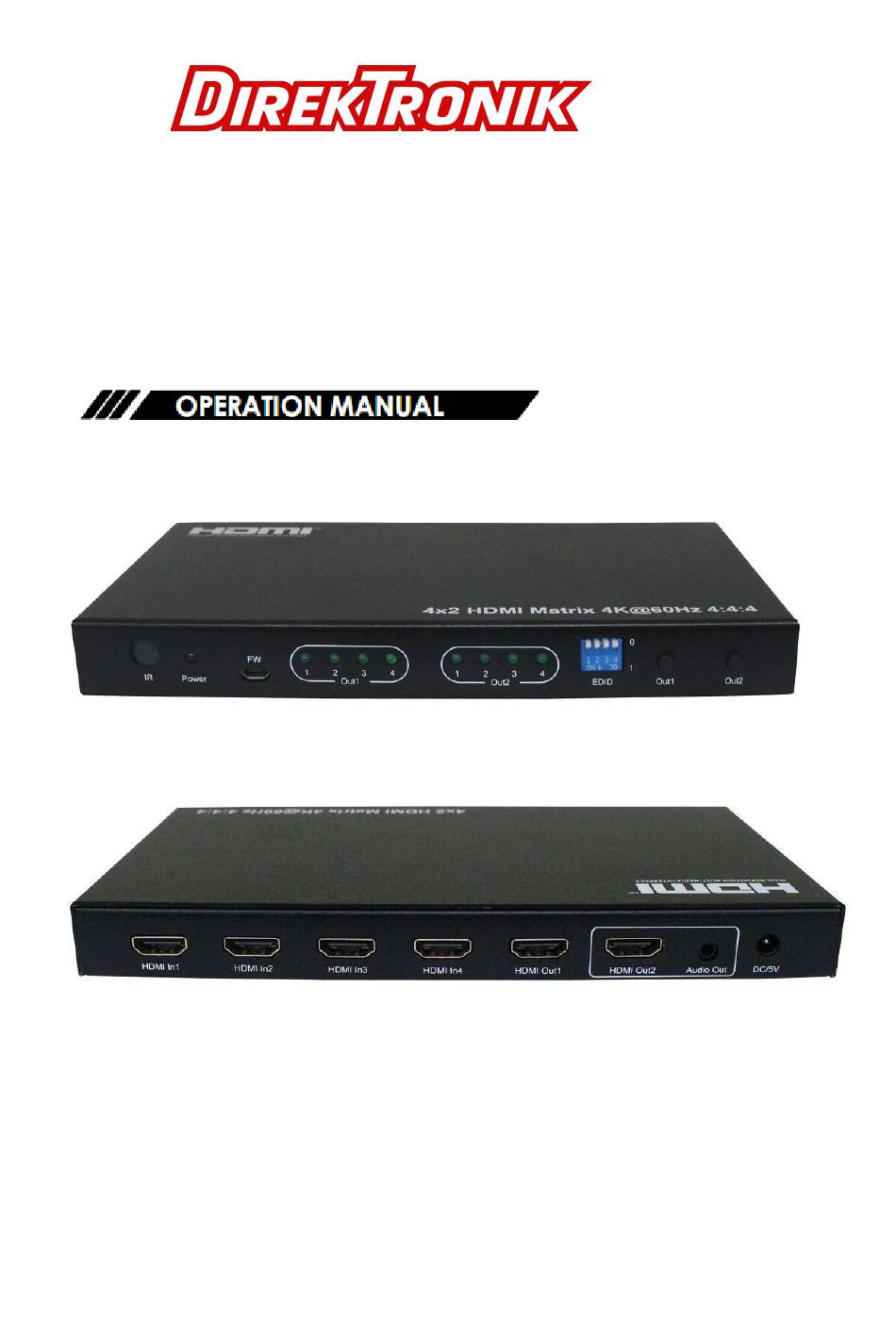

- Page 1 25-0572 - 4x2 HDMI2.0 Matrix Support 4K@60Hz YUV4:4:4, 18Gbps,HDCP2.2...
- Page 2 Operating Instruction Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents
Operating Instruction Table of Contents 1. Features....................4 2. Package Contents..................4 3. Specifications..................4 4. Panel Descriptions................5 ...................5 4.1 Front Panel ...................5 4.2 Rear Panel 5. Connecting and Operating..............6 6. Application Diagrams................6 7. Remote Control Description..............6 8. EDID DIP Switch.................7 ................7 8.1 DIP Switch function ................7 8.2 EDID Copy mode ................7... -
Page 4: Features
Operating Instruction Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. 1. Features 4×2 HDMI Matrix,4×HDMI Inputs,2×HDMI Output ... -
Page 5: Panel Descriptions
Operating Instruction 4. Panel Descriptions 4.1 Front Panel ① IR receive window ② Indicator of power supply ③ Micro USB port for upgrade firmware ④ Indicator of input1/2/3/4 for HDMI output1 ⑤ Indicator of input1/2/3/4 for HDMI output2 (Or the indicator of EDID NO. in build-in EDID setting mode) ⑥... -
Page 6: Connecting And Operating
Operating Instruction 5. Connecting and Operating 1. Connect source devices to input ports of the matrix 2. Connect HDMI output ports to TV or other HDMI sink devices. 3. Connect 5V POWER supply to DC power socket. 4. Power on the matrix, HDMI sources and displays. 6. -
Page 7: Edid Dip Switch
Operating Instruction 8. EDID DIP Switch 8.1 DIP Switch function DIP Switch include:EDID Copy mode and build-in EDID mode. (DIP Switch 1 to 4 for HDMI input1 to input4) 8.2 EDID Copy mode EDID DIP switch to “0”,means using the EDID copy mode,when HDMI out1/ out2 port select any one channel of HDMI input,EDID input will copy and follow EDID of TV. -
Page 8: Firmware Upgrade
Operating Instruction 9.Firmware Upgrade The user should use the CD in colorbox,read and install software in PC; Connect unit to PC with usb cable from micro usb port,click “REFRESH”button first,then click software to select correct usb port: (Note: if PC is unable to identify the correct usb port,please install the driver from CD first) 3). -
Page 9: Warranty Policy
Operating Instruction MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT SERVICE （1）Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged; (b) Objects or liquids have gotten into the unit;... - Page 10 Operating Instruction installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or service by anyone other than a Factory Service center or other Authorized Servicer, or damage that is attributable to acts of God. 2) THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY COVERAGE".
