Summary of Contents for DirekTronik 20110146

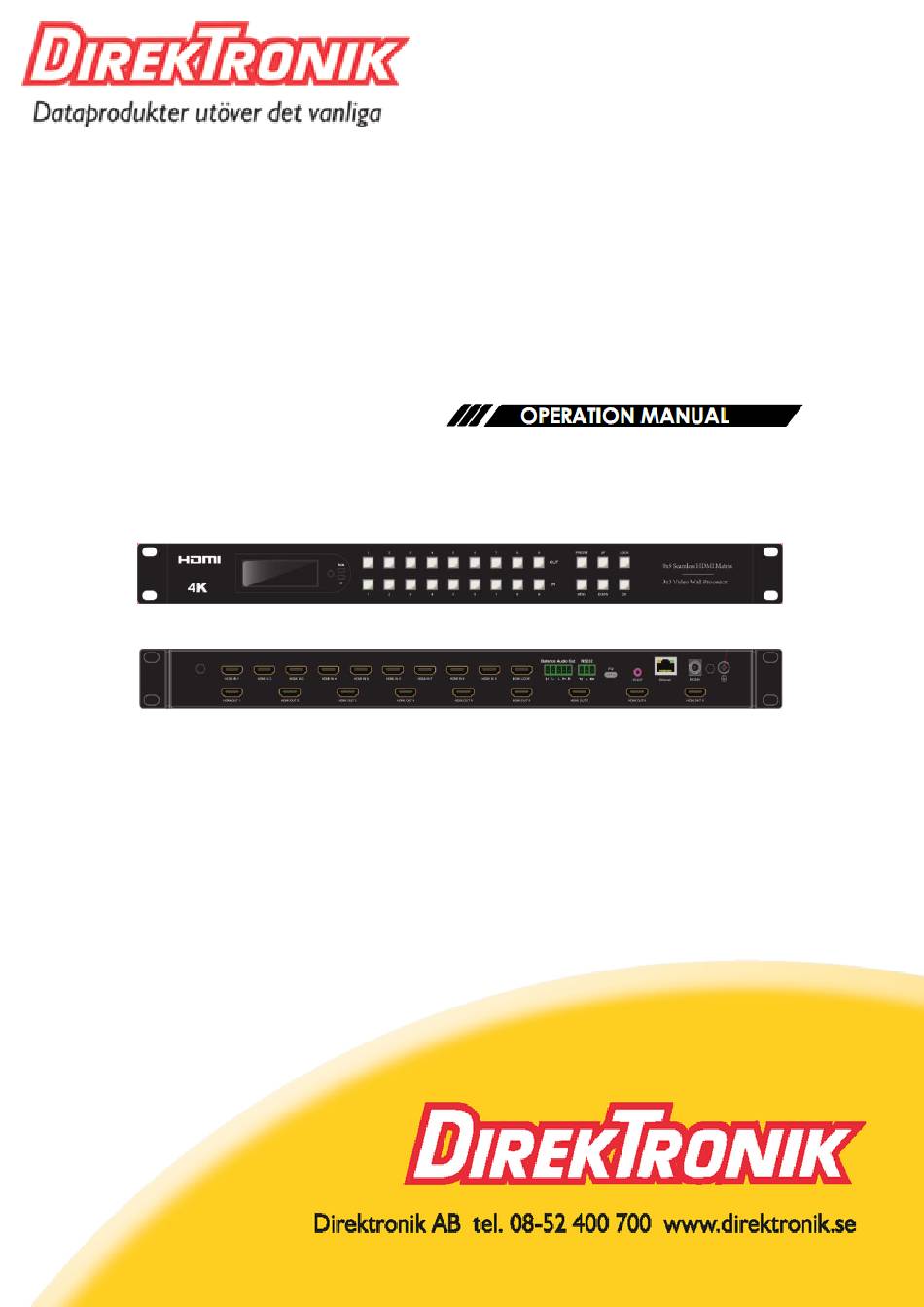

- Page 1 Best.nr: 20110146 9x9 Seamless 4K HDMI Matrix 3x3 Video Wall 4K Processor...
- Page 2 Operating Instruction Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents
Operating Instruction Table of Content Dear Customer ............................ 4 1. Features ............................4 2. Package Contents ..........................5 3. Specifications ..........................5 4. Panel Descriptions........................... 7 5. Audio Setting ..........................16 6. EDID Setting ..........................18 7. Preset setting ..........................18 8. -
Page 4: Dear Customer
Operating Instruction Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. 1. Features ⚫ 9xHDMI input; 9xHDMI output max resolution up to HDMI 1.4v 4K30Hz ⚫... -
Page 5: Package Contents
Operating Instruction 2. Package Contents ❶ Main Unit x1 ❷ Power Adapter DC24V2A x1 ❸ Remote Controller x1 ❹ Disk (User manual; Update software; Command list) x1 3. Specifications Operating Temperature Range -5 to +40°C(23 to +104 °F) Storage Temperature Range -10 to +60°C(-14 to +140 °F) Operating Humidity Range 5 to 90 % RH (no condensation) - Page 6 Operating Instruction Testing Resolution List Rate Resolution Supported Mark √ 576i √ 576P √ 720P √ 1080P 50Hz √ 1080i √ 4K (Beta) √ 480i √ 480P √ 60Hz 720P /59.94Hz √ 1080P √ 4K (Beta) √ 720P √ 1080P 30/29.97Hz √...
-
Page 7: Panel Descriptions
Operating Instruction 4. Panel Descriptions FRONT: ❶ LED Display ❷ OUT AND IN PUT 1~9 (When switching, press Output first, then press Input) ❸ Function button: PRESET; MENU; UP; DOWN; LOCK; OK Channel Button method Any Key The first operation of the button can wake up the screen and do the command Press the Output button to select the output, press again means cancel the selection;... - Page 8 Operating Instruction REAR: ❶ HDMI Input port ❷ HDMI Loop out port ❸ Balanced Audio Output port ❹ RS232 interface: Commands control ❺ FW interface: used for firmware upgrade ❻ IR EXT: Remote control ❼ ETHERNET port (TCP/IP): Control the product ❽...
- Page 9 Operating Instruction Enter system interface 4.1. Video switching operation The signal switch includes 9 switching channels, which can be configured as input/output according to the requirements, forming a matrix of 1 x 9 ~ 9 x 1, which can switch any input signal to 1 output or all output.
- Page 10 Operating Instruction 4.1.1. Video Control The video interface had ten sub-menus: Out 1~9 and ALL. Video Interface After selecting the “Output”, there will have 7 sub-menus. Output Interface A. Video Switch: Switch any output to any input or switch all output to the same input ❶...
- Page 11 Operating Instruction B. Video On/Off control: Video On/Off Interface C. Output resolution Selecting: Resolution Format Interface The output resolutions are 4K, 1080P, 720P, 2560x1440, 1920x1200, 1360x768, and AUTO (AUTO is the resolution supported by the automatic identification of the back-end TV). The default setting is AUTO.
- Page 12 Operating Instruction D. Offset Section: Selecting offsets for any or all output’s video (Offset is applicable to the video wall mode) The specific operation is as follows: ❶ Under Video wall mode, choose “Video” and press “OK” button in MENU ❷...
- Page 13 END（6000，6000） Operating Instruction Take the Out1 image size set to 1/4 at the TOP LEFT corner as example: ❶ Choose “Video” in the menu and press “OK” ❷ Press “UP” and “DOWN” to select the OUT1, then press “OK” ❸ Select “CH0”, press “OK” to get Sub-terms “ CROP” and “ZOOM” ❹...
- Page 14 Operating Instruction F. Rotate Section setting: One key rotation function, you can choose one or all the output of one key rotation, rotation 180 degrees. Rotation Interface 4.2. Mode Control: The control interface of Mode has four sub-menus: Seamless Matrix; Video Wall; Multi-Viewer;...
- Page 15 Seamless Matrix Interface Operating Instruction B. Video wall Mode There are 20 preset scenes in the Mode. Explanation: 2x3 U means 2x3 Video wall on the TOP Side 2x2 LD means 2x2 Video wall is on the Left Down side Video Wall Interface C.
-
Page 16: Audio Setting
Operating Instruction D. Demo After selecting this mode, then will switch under Seamless Matrix, Video wall and Multi-viewer mode. You can choose to set the demo switching time: 2S, 5S, 10S, 30S, 60S, 180S, 600S, or select Off to turn off. 5. - Page 17 Operating Instruction Audio Interface...
-
Page 18: Edid Setting
Operating Instruction 6. EDID Setting Set each input ports’ EDID, there are four resolutions of Built-In EDID: 4K30hz; 1080P60hz; 4K60(Beta); User EDID Interface 7. Preset setting 7.1. Call: Call the preset video 7.2. Save: Save the preset setting 7.3. Clear: Remove the setting Total can save 8 different video setting, modify the preset name need to login in WEB page. -
Page 19: Setup Section
Operating Instruction Preset Interface 8. Setup Section 8.1. OSD Setting OSD setting with 2 sub-menu: Menu time: Timing OSD setting in Menu interface Always means the OSD info will be showed all the time; 60s means the OSD info will be turn off after 60 seconds. Info time: Timing OSD setting in Resolution information In Info time setting, with an option “Never”... - Page 20 Operating Instruction 8.2. Baud Rate Setting (Default: 115200) 8.3. DHCP Setting (Default: DHCP Off) 8.4. Reboot Setting...
-
Page 21: Info Section
Operating Instruction 8.5. Factory Setting It is an initialization setting for the device function. There are two factory settings: 1. Factory-Run 2. Factory-User Factory-Run is the recovery operation data. (Keep the Preset setting) Factory-User can restore the factory settings for all settings. 9. -
Page 22: Remote Controller
Operating Instruction 10. Remote Controller ：Standby or power on ：Mute button ：Return to upper level ：Move to next level ：(N/A) ：(N/A) ：Seamless switch under “Matrix”Mode； ：Video wall switch； ：(N/A) ：(N/A) ：Menu ：All output ：Up ：Menu ：OK ：Right ：Down ：OSD on/off ：Menu When selecting Output,means Out1--out9 When selecting Input，means In1--In9... -
Page 23: Web Control
Operating Instruction 11. WEB Control: When the matrix is connected to the control device (such as: PC) through TCP/IP network port, which can be controlled by Command or through GUI man-machine interactive interface. The control mode is divided into two types: Be connected with a single non-networked computer for single control;... - Page 24 Operating Instruction 11.2. LAN multiple simultaneous control: Connect to LAN to make the remote control of multi-user devices (such as mobile phones and other PCS) in the Ethernet environment, and ensure that the IP network segment of Matrix is consistent with the IP network segment.
- Page 25 LOGIN Interface Operating Instruction Matrix Option Video Output Interface Video Option ①Seamless Matrix with drop menu to select: P2P, input1~9. ②Video Wall with drop menu to select 20 presets. ③Multi-Viewer with drop menu to select 8 presets, then choose the Output Offset function: Adjust the Offset of the screen on X or Y axis in a single screen, with the range of 0-600 and increasing by 2 each time.The default is 0 for both the X-axis and Y-axis.
- Page 26 Operating Instruction 3x3 Video Wall Interface Output Option Rename: Double-click Output1~9 to rename the output port. Audio Dec/Rotate/Audio HDMI: Analog Audio Extraction /180° Rotation / HDMI Audio on/off. Audio Delay: The Audio delay can be set to 0 to 250, each setting will be 10 Resolution: 4K30, 1080P, 720P, 2560×1440, 1920×1200, 1360×768, Auto...
- Page 27 Operating Instruction Input Option Rename: Double-click input1~9 to rename the input port. Copy EDID: 4K30Hz & 1080P Preset Option...
- Page 28 Operating Instruction Network Option System Option...
-
Page 29: Firmware Updating
Operating Instruction 12. Firmware updating Open UART_ISP-EXE on the PC, select the correct port and baud rate of 115200, enter "A1" in port, and select the path of the program in path (XX.bin), and click update to complete the upgrade MCU Updating: A1... -
Page 30: Application Diagram
CPLD Updating: C0 GUI Updating: A1 01 HTML Updating: F1 01 (NOTE: Every time you need to update the firmware, please check with the Engineer first) Operating Instruction 13. Application Diagram ① Seamless switch 9x9 HDMI Matrix & Multi-Viewer -----------------------------------------------------------------------------------------------------------------------... - Page 31 Operating Instruction ② Diagram of 3x3 Video Wall Displaying...
-
Page 32: Maintenance
Operating Instruction MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT SERVICE （1）Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged; (b) Objects or liquids have gotten into the unit;... - Page 33 (Parts(2)Year, Labor(90) Days) which starts with the date of original purchase ("Limited Warranty period"), at its option either(a) repair your product with new or refurbished parts, or (b) replace it with a new of a refurbished product. The decision to repair or replace will be made by the warrantor.
