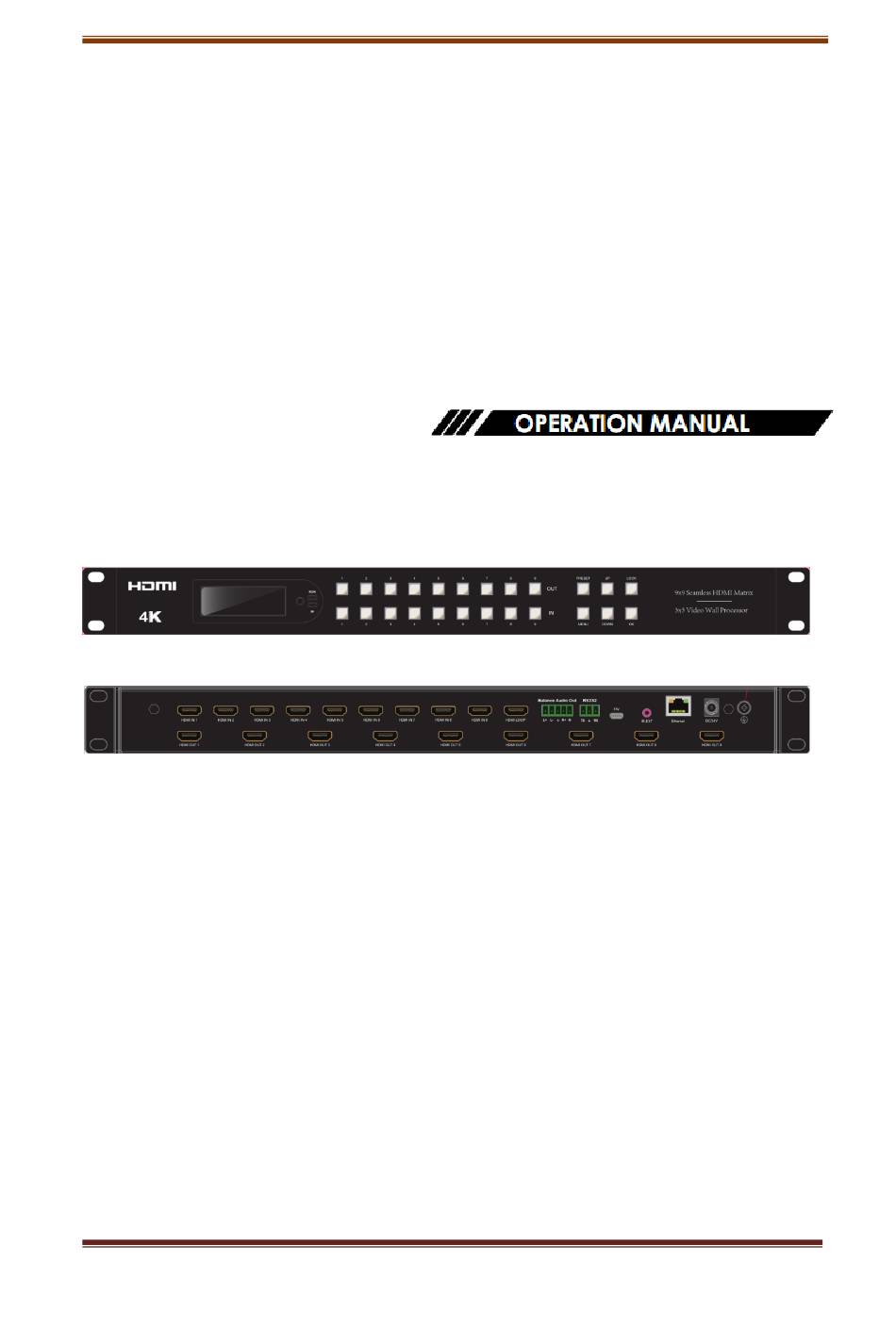

- Page 1 User manual model: SX-SMX99B 9x9 Seamless 4K HDMI Matrix 3x3 Video Wall 4K Processor Kazakhstan Technical support tel.:+7(727) 249-50-79...
- Page 2 User manual model: SX-SMX99B Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents
User manual model: SX-SMX99B Table of Content Dear Customer ............................ 4 1. Features ............................4 2. Package Contents ..........................5 3. Specifications ..........................5 4. Panel Descriptions........................... 7 5. Audio Setting ..........................16 6. EDID Setting ..........................18 7. Preset setting ..........................18 8. -
Page 4: Dear Customer
User manual model: SX-SMX99B Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. 1. Features ⚫ 9xHDMI input; 9xHDMI output max resolution up to HDMI 1.4v 4K30Hz ⚫... -
Page 5: Package Contents
User manual model: SX-SMX99B 2. Package Contents ❶ Main Unit x1 ❷ Power Adapter DC24V2A x1 ❸ Remote Controller x1 ❹ Disk (User manual; Update software; Command list) x1 3. Specifications -5 to +40°C(23 to +104 °F) Operating Temperature Range -10 to +60°C(-14 to +140 °F) - Page 6 User manual model: SX-SMX99B Testing Resolution List Rate Resolution Supported Mark 576i √ 576P √ 720P √ 1080P √ 50Hz 1080i √ 4K (Beta) √ 480i √ 480P √ 60Hz 720P √ /59.94Hz 1080P √ 4K (Beta) √ 720P √...
-
Page 7: Panel Descriptions
User manual model: SX-SMX99B Panel Descriptions FRONT: ❶ LED Display ❷ OUT AND IN PUT 1~9 (When switching, press Output first, then press Input) ❸ Function button: PRESET; MENU; UP; DOWN; LOCK; OK Channel Button method Any Key The first operation of the button can wake up the screen and do the command Press the Output button to select the output, press again means cancel the selection;... - Page 8 User manual model: SX-SMX99B REAR: ❶ HDMI Input port ❷ HDMI Loop out port ❸ Balanced Audio Output port ❹ RS232 interface: Commands control ❺ FW interface: used for firmware upgrade ❻ IR EXT: Remote control ❼ ETHERNET port (TCP/IP): Control the product ❽...
- Page 9 User manual model: SX-SMX99B Enter system interface 4.1. Video switching operation The signal switch includes 9 switching channels, which can be configured as input/output according to the requirements, forming a matrix of 1 x 9 ~ 9 x 1, which can switch any input signal to 1 output or all output.
- Page 10 User manual model: SX-SMX99B Operation: Long press the Input area’s number “2” to complete the switch 4.1.1. Video Control The video interface had ten sub-menus: Out 1~9 and ALL. Video Interface After selecting the “Output”, there will have 7 sub-menus.
- Page 11 User manual model: SX-SMX99B Switch Interface B. Video On/Off control: Video On/Off Interface C. Output resolution Selecting: Resolution Format Interface The output resolutions are 4K, 1080P, 720P, 2560x1440, 1920x1200, 1360x768, and AUTO (AUTO is the resolution supported by the automatic identification of the back-end TV).
- Page 12 User manual model: SX-SMX99B D. Offset Section: Selecting offsets for any or all output’s video (Offset is applicable to the video wall mode) The specific operation is as follows: ❶ Under Video wall mode, choose “Video” and press “OK” button in MENU ❷...
- Page 13 User manual model: SX-SMX99B END（6000，6000） Take the Out1 image size set to 1/4 at the TOP LEFT corner as example: ❶ Choose “Video” in the menu and press “OK” ❷ Press “UP” and “DOWN” to select the OUT1, then press “OK”...
- Page 14 User manual model: SX-SMX99B F. Rotate Section setting: One key rotation function, you can choose one or all the output of one key rotation, rotation 180 degrees. Rotation Interface 4.2. Mode Control: The control interface of Mode has four sub-menus: Seamless Matrix; Video Wall;...
- Page 15 User manual model: SX-SMX99B Seamless Matrix Interface B. Video wall Mode There are 20 preset scenes in the Mode. Explanation: 2x3 U means 2x3 Video wall on the TOP Side 2x2 LD means 2x2 Video wall is on the Left Down side Video Wall Interface C.
-
Page 16: Audio Setting
User manual model: SX-SMX99B D. Demo After selecting this mode, then will switch under Seamless Matrix, Video wall and Multi-viewer mode. You can choose to set the demo switching time: 2S, 5S, 10S, 30S, 60S, 180S, 600S, or select Off to turn off. - Page 17 User manual model: SX-SMX99B Audio Interface Kazakhstan Technical support tel.:+7(727) 249-50-79...
-
Page 18: Edid Setting
User manual model: SX-SMX99B 6. EDID Setting Set each input ports’ EDID, there are four resolutions of Built-In EDID: 4K30hz; 1080P60hz; 4K60(Beta); User EDID Interface 7. Preset setting 7.1. Call: Call the preset video 7.2. Save: Save the preset setting 7.3. -
Page 19: Setup Section
User manual model: SX-SMX99B Preset Interface 8. Setup Section 8.1. OSD Setting OSD setting with 2 sub-menu: Menu time: Timing OSD setting in Menu interface Always means the OSD info will be showed all the time; 60s means the OSD info will be turn off after 60 seconds. - Page 20 User manual model: SX-SMX99B 8.2. Baud Rate Setting (Default: 115200) 8.3. DHCP Setting (Default: DHCP Off) 8.4. Reboot Setting Kazakhstan Technical support tel.:+7(727) 249-50-79...
-
Page 21: Info Section
User manual model: SX-SMX99B 8.5. Factory Setting It is an initialization setting for the device function. There are two factory settings: 1. Factory-Run 2. Factory-User Factory-Run is the recovery operation data. (Keep the Preset setting) Factory-User can restore the factory settings for all settings. -
Page 22: Remote Controller
User manual model: SX-SMX99B 10. Remote Controller ：Standby or power on ：Mute button ：Return to upper level ：Move to next level ：(N/A) ：(N/A) ：Seamless switch under “Matrix”Mode； ：Video wall switch； ：(N/A) ：(N/A) ：Menu ：All output ：Up ：Menu ：OK ：Right ：Down ：OSD on/off... -
Page 23: Web Control
User manual model: SX-SMX99B 11. WEB Control: When the matrix is connected to the control device (such as: PC) through TCP/IP network port, which can be controlled by Command or through GUI man-machine interactive interface. The control mode is divided into two types: Be connected with a single non-networked computer for single control;... - Page 24 User manual model: SX-SMX99B 11.2. LAN multiple simultaneous control: Connect to LAN to make the remote control of multi-user devices (such as mobile phones and other PCS) in the Ethernet environment, and ensure that the IP network segment of Matrix is consistent with the IP network segment.
- Page 25 User manual model: SX-SMX99B Matrix Option Video Output Interface Video Option ①Seamless Matrix with drop menu to select: P2P, input1~9. ②Video Wall with drop menu to select 20 presets. ③Multi-Viewer with drop menu to select 8 presets, then choose the Output Offset function: Adjust the Offset of the screen on X or Y axis in a single screen, with the range of 0-600 and increasing by 2 each time.The default is 0 for both the X-axis and Y-axis.
- Page 26 User manual model: SX-SMX99B 3x3 Video Wall Interface Output Option Rename: Double-click Output1~9 to rename the output port. Audio Dec/Rotate/Audio HDMI: Analog Audio Extraction /180° Rotation / HDMI Audio on/off. Audio Delay: The Audio delay can be set to 0 to 250, each setting will be 10 Resolution: 4K30, 1080P, 720P, 2560×1440, 1920×1200, 1360×768, Auto...
- Page 27 User manual model: SX-SMX99B Input Option Rename: Double-click input1~9 to rename the input port. Copy EDID: 4K30Hz & 1080P Preset Option Kazakhstan Technical support tel.:+7(727) 249-50-79...
- Page 28 User manual model: SX-SMX99B Network Option System Option Kazakhstan Technical support tel.:+7(727) 249-50-79...
-
Page 29: Firmware Updating
User manual model: SX-SMX99B 12. Firmware updating Open UART_ISP-EXE on the PC, select the correct port and baud rate of 115200, enter "A1" in port, and select the path of the program in path (XX.bin), and click update to complete the upgrade... -
Page 30: Application Diagram
User manual model: SX-SMX99B MCU Updating: A1 CPLD Updating: C0 GUI Updating: A1 01 HTML Updating: F1 01 (NOTE: Every time you need to update the firmware, please check with the Engineer first) 13. Application Diagram ① Seamless switch 9x9 HDMI Matrix & Multi-Viewer... - Page 31 User manual model: SX-SMX99B ② Diagram of 3x3 Video Wall Displaying Kazakhstan Technical support tel.:+7(727) 249-50-79...
-
Page 32: Maintenance
User manual model: SX-SMX99B MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT SERVICE （1）Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged;...
