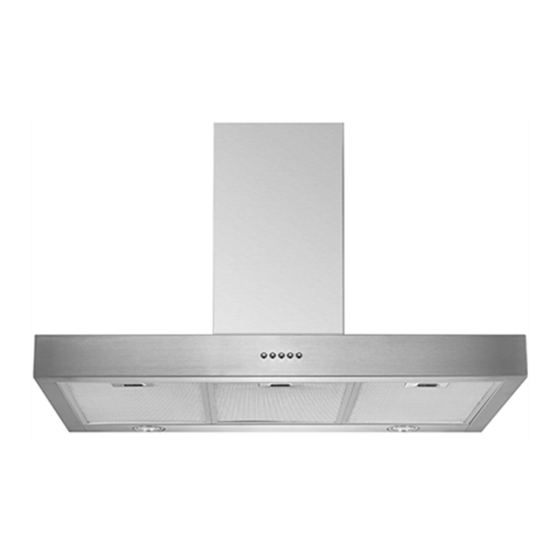

RANGEHOOD & INSTALLATION GUIDE
TSH-900
TSH-900B
www.schweigen.com.au
Revision 1 07/09/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSH-900 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Schweigen TSH-900

  • Page 1 RANGEHOOD & INSTALLATION GUIDE TSH-900 TSH-900B www.schweigen.com.au Revision 1 07/09/22...
  • Page 2: Table Of Contents

    Index Welcome Your State Regulatory Authority Your Safety Before Installation Product Use Electrical Cord Description Rangehood 4. Operation Push Button Control Panel Speed Control Cleaning & Maintenance Cleaning the Interior Cleaning the Exterior Filters Replacing the Lights Installation Rangehood Size vs Cooktop Size Mounting Instructions Recommended Installation Height for Induction Cooktop Mounting Points for Body...
  • Page 3: Welcome

    Please help us to continue this effort to protect the environment by using the appliance efficiently and dispose of the packaging in a responsible manner. We trust that you will enjoy your new Schweigen rangehood. Your State Regulatory Authority Different Australian states have varying legislative requirements for the installation of rangehood ducting.
  • Page 4: Your Safety

    2. Your Safety WARNING Please read this section thoroughly before attempting to operate the appliance. Inspect your product upon receipt. Any damage or defects MUST be reported within 48 hours, or no claim will be recognised. DO NOT INSTALL THIS APPLIANCE IF YOU FIND IT DAMAGED. If this product is installed damaged, neither the supplier, nor the retailer, will be responsible for the costs associated with the repair, replacement, removal or re-installation of the appliances.
  • Page 5: Before Installation

    1. We recommend this appliance be installed or repaired by an experienced Home Appliances technician. 2. Please see our website www.schweigen.com.au for experienced installers. 3. It is dangerous to modify any part of this appliance. Modification of any kind, will immediately void the warranty.
  • Page 6: Product Use

    2. Your Safety Product Use This product is designed for household use and should not be used for commercial applications. After use, always ensure that all controls are in the “OFF” position. When frying with a gas flame, take particular care not to allow the oil or grease in the pan to catch fire.
  • Page 7: Description

    _n_. _RH Section_ 3. Description Rangehood 1. Mounting Bracket 2. Extension Flue Piece 3. Main Flue 4. Main Power Cord 5. Single Outlet 150mm 6. Filters 7. Light NOTE: Filter and light quantity may vary from model to model. Important Electronics MUST be accessible for service and/or maintenance once installed, failure to do so, will result in any charges involved with accessing the part (removal of cabinetry etc.) Note: Please make sure that all plastic protection on the rangehood and filters are removed before use.
  • Page 8: Operation

    4. Operation _n_. _LH Section_ Push Button Control Panel Turn on/off the rangehood Low speed setting Medium speed setting High speed setting Turn on/off the lamp Speed Control This undermount is equipped with a 3 speed mechanical control. Speed control usage suggestions: •...
  • Page 9: Cleaning & Maintenance

    5. Cleaning & Maintenance Warning Always switch off and disconnect power before cleaning. Cleaning the Interior Clean the interior of the rangehood with a damp cloth and a neutral detergent. NOTE: Do not use denatured alcohol on the exterior of the rangehood. Do not clean the electric parts or the motor with liquids or solvents Cleaning the Exterior We recommended using a soft cloth, water and a liquid soap, rinsing it well and then drying it thoroughly.
  • Page 10: Filters

    5. Cleaning & Maintenance Filters For this appliance to function effectively, regular maintenance is a must. • The function of the filter is to absorb the grease particles given off during cooking. • Clogged filters and heavy oil deposits restrict airflow and may cause the motor to overheat and become a fire hazard.
  • Page 11: Replacing The Lights

    5. Cleaning & Maintenance _n_. _RH Section_ Replacing the Lights Danger Always switch off and disconnect the power cord before replacing any lights. Failure to do so may cause serious injury. Please be aware that the light bulb will retain heat for a short period of time after being switched off.
  • Page 12: Installation

    6. Installation _n_. _LH Section_ Rangehood Size vs Cooktop Size In addition to the size, the height of the rangehood above the cooktop is important to obtain the best performance. INADEQUATE ADEQUATE OPTIMAL Rangehood smaller than Rangehood same size as Rangehood larger than cooking zone cooking zone...
  • Page 13: Mounting Instructions

    Note: If the instructions for the gas cooktop specify a greater distance, this must be taken into account. Recommended Installation Height for Induction Cooktop To help avoid condensation, particular to cooking with an induction cooktop, Schweigen recommends a height between 700-750mm. Refer to page 20 for further information.
  • Page 14: Mounting Points For Body

    6. Installation _n_. _LH Section_ Wall Mount Installation There are two primary mounting points and several secondary mounting points to firmly fix the rangehood in place. Suitable fixing screws must be used to mount the appliance on a secure surface. Please ensure that the holes for the two primary mounting points are level before installation.
  • Page 15: Installation Example

    _n_. _RH Section_ 6. Installation Installation Example Step 1 There are 2 suspension points ( ) to suspend the appliance to the wall. These points are supplied with a screw set for ease of installation. Secure rangehood to the wall using only primary ).
  • Page 16: Ducting

    6. Installation Step 4 Attach the exterior flue wall mounting bracket to the wall. Slide the inside extension flue piece up to the wall mounting bracket and secure. IMPORTANT Please ensure all plastic protection on the rangehood and filters is removed before use. Ducting The ducting diameter MUST be 150mm.
  • Page 17: Back Draft Fins (For Applicable Models)

    6. Installation Back Draft Fins (For applicable models) The supplied ducting has been manufactured with an allowance for the back draft fins to operate without hindrance. It is the smooth extended end of the ducting. When installing Back Draft Fins, please ensure that you insert the Back Draft Fins onto the back draft base, which are attached to the top of the motor outlet before installation.
  • Page 18: Ducting Advice

    6. Installation Ducting Advice Straight ducting is the most effective installation Keep the curves or bends to a minimum. If they do exist, try to keep the angles as open as possible. Never reduce flue diameter right next Never fit reductions next to curves or bends in to the rangehood outlet fitting.
  • Page 19: Roof Cowls / Roof Seal Kit

    Do not reduce the ducting diameter, this will reduce airflow. Faulty Installation It is not the responsibility of Schweigen to rectify any incorrect installations. A service call out fee will be charged for any Schweigen technician that attends a call, whereby it is established that the fault is due to an incorrect installation or non-manufacturing fault.
  • Page 20: Condensation Information

    7. Condensation Information _n_. _LH Section_ Cooking with Induction Cooktops Cooking with an induction or similar cooktop, may produce condensation on the rangehood. Unlike basic electric or gas cooking, induction cooktops heat food and liquid instantly, which in turn, produces vapours rapidly. Because of this rapid process, the rangehood filters do not have enough time to warm, which increases the chance of condensation forming.
  • Page 21: Troubleshooting

    In the event that the failure is not due to the faults mentioned in the Troubleshooting section, you can lodge an online Service Request. To lodge an online Service Request, visit our website www.schweigen. com.au/service-and-warranty and click on the link and complete the service request form.
  • Page 22: Specifications

    9. Specifications Dimensions Technical Specifications Model TSH-900 / TSH-900B Feeding Voltage 220-240V 50Hz Lamp Power — LED (W) 2 x 3W Page 22...
  • Page 23: Disclaimer

    All information supplied is to be used for general reference purposes only and is on the understanding that Schweigen will not be liable for any loss, liability or damage of whatever kind arising as a result of any reliance upon such information. All pictures used in the guide are for illustrative purposes only.
  • Page 24 Australia Unit 4/1-5 Lake Drive, Dingley Village, Victoria 3172. Phone 1300 881 693 Email sales@schweigen.com.au Web www.schweigen.com.au New Zealand 5 Tolich Place, Henderson, Auckland 0610. Phone 0800 200 510 Email info.parex@emerson.com Web www.parex.co.nz...
