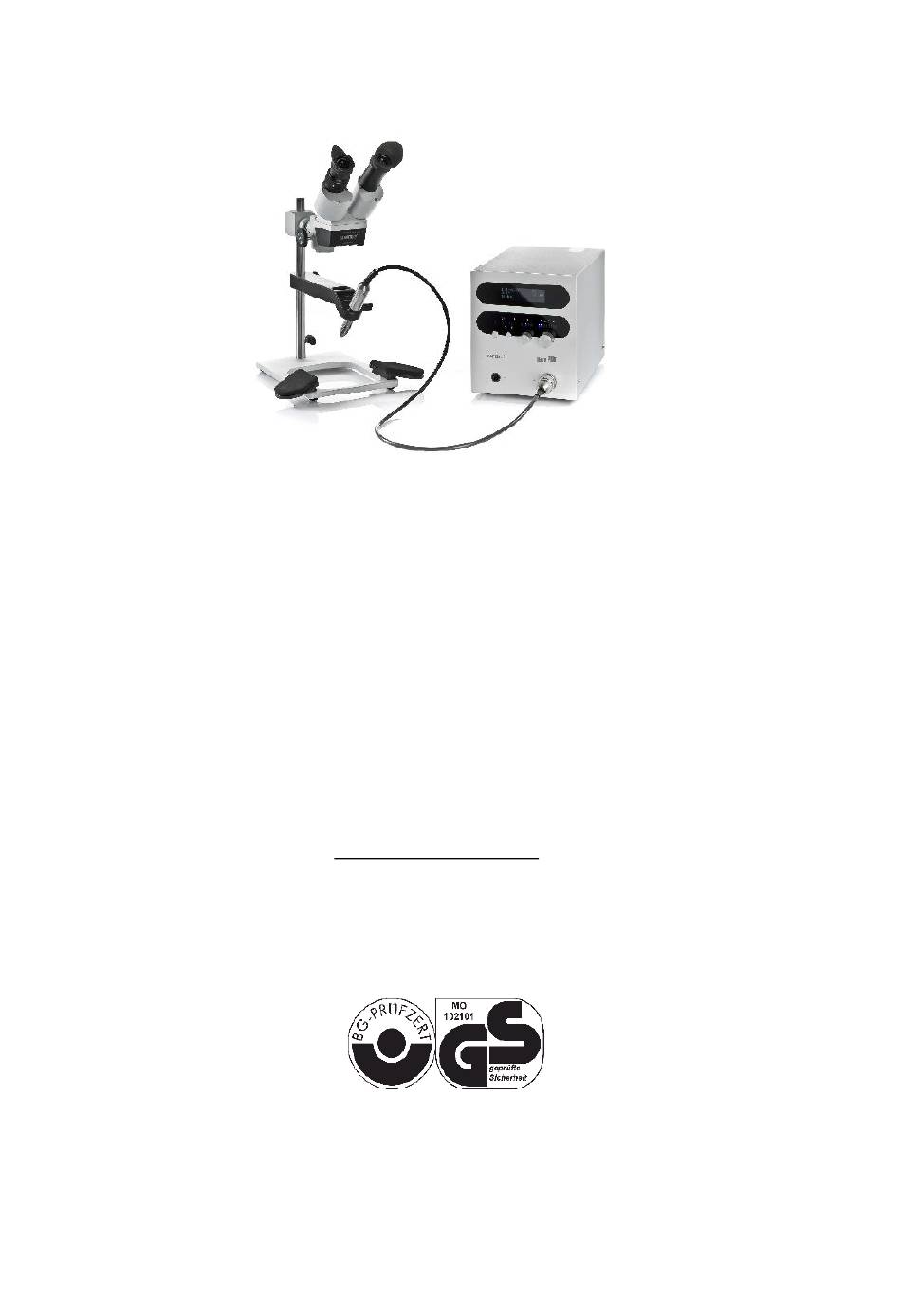

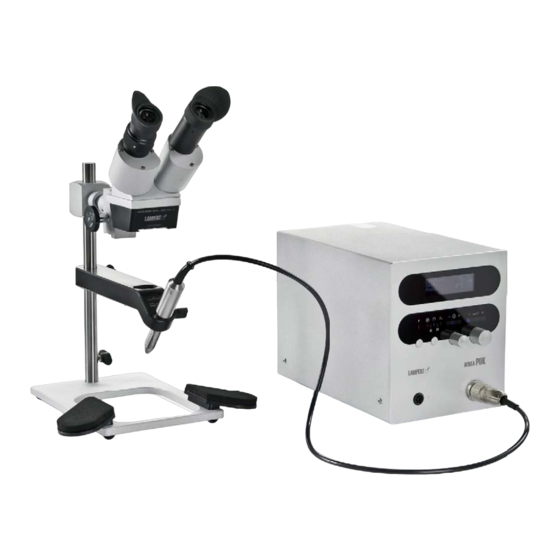

OPERATING INSTRUCTIONS
The manual that you hold in your hands is designed to acquaint you with the operating
principles and correct maintenance of your "DENTA PUK".
Please read this manual carefully and clearly observe the guidelines it describes; this way
malfunctions and operating errors can be avoided. Adhering to the guidelines will promote
the working life of the machine and assure that it remains in constant operational
readiness during this time; it will also ensure your personal safety.
This device may only be operated by qualified personnel, and then only for its
designated use and in accordance with the guidelines contained in this manual. The
manufacturer accepts no responsibility, and is in no way liable for damage caused
by improper use or operation of the machine.
Before first using your "DENTA PUK", please be sure to carefully read the manual
sections "General Safety Requirements" and "Personal safety".
Please retain these instructions for future reference.
The equipment made by "Lampert Werktechnik GmbH", fulfils the conformity requirements
of CE certification and is manufactured according to VDE guidelines.
The DENTA PUK is certified as "BG-PRÜFZERT" by the German federation of statutory
accident insurance institutions for the industrial sector, and carries the "GS" safety
When overhauling or reconditioning our devices, we strongly advise to use original parts
only. Our customer service team is at your disposal, and will gladly assist in any way they
The device may only be opened, or alterations carried out, by authorised customer
service technicians. Noncompliance will result in all warrantees and liability claims
"DENTA PUK"
Dear customer!
A note on conformity marks
standards certification mark.
can.
becoming void.
LAMPERT WERKTECHNIK GMBH
October 2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DENTA PUK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lampert DENTA PUK

Summary of Contents for Lampert DENTA PUK

  • Page 1 Before first using your “DENTA PUK”, please be sure to carefully read the manual sections “General Safety Requirements” and “Personal safety”.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SECTION SAFETY NOTICES AND TERMINOLOGY USED DESIGNATED USE INTRODUCTION SAFETY INSTRUCTIONS General safety instructions Personal safety and potential risks INSTALLATION Setup guidelines Controls, functions and features -front Controls, functions and features -back Starting up Changing language displayed OPERATING PRINCIPLES AND SETTING THE PARAMETERS Adjusting the welding parameters Using the programmable memory...

  • Page 3: Safety Notices And Terminology Used

    INTRODUCTION The DENTA PUK is as an excellent way of bringing the technique of welding to a broad band of users in the dental industry, whilst at the same time keeping running costs and the initial outlay to a minimum.

  • Page 4: Safety Instructions

    Please observe the appropriate safety measures when handling gas bottles and the safety rules in dealing with gases. In its standard serialised form, the DENTA PUK must be run on a mains voltage of 230V~. The wiring of the mains power supply plug is as follows: yellow-green lead = equipment grounding conductor (PE).

  • Page 5: Personal Safety And Potential Risks

    3-2 PERSONAL SAFETY AND POTENTIAL RISKS When welding it is preferable to wear protective gloves on both hands, as it cannot be completely ruled out that sparks and splashes occur during welding. The protective gloves may not contain high proportions of quickly melting synthetic fibres. Protective gloves also guard against UV-rays which are harmful during prolonged periods of intensive welding.

  • Page 6: Controls, Functions And Features -Front

    4-2 CONTROLS, FUNCTIONS AND FEATURES - FRONT (Fig. 1) (1) BUTTON-PROGRAM MEMORY (2) BUTTON-SWITCHING MODES (3) ROTARY KNOB-IMPULSE LENGTH / WELDING TIME (4) ROTARY KNOB-WELDING POWER (5) SOCKET FOR THE HANDPIECE (-pole ) (6) SOCKET ( + pole) For connecting accessories designed to complete the electrical circuit (i.e. crocodile clip, or other connecting cables) LCD-DISPLAY (10)

  • Page 7: Controls, Functions And Features -Back

    4-3 CONTROLS, FUNCTIONS AND FEATURES - BACK (Fig. 2) (11) MAINS POWER SWITCH (12) I.E.C. POWER CONNECTOR For connecting the mains power cable (13) CONNECTION SOCKET FOR GLARE PROTECTION SYSTEM (“Shutter / Welding Shield”) (14) CONNECTION SOCKET FOR FOOT SWITCH (“Foot Switch”) (15) CONNECTION SOCKET FOR LED MICROSCOPE LIGHTING (“LED-Lamp 800 mA”) Please note: The connection sockets for the foot switch, the glare protection system and the LED microscope lighting are identical!
  • Page 8 “Shutter / Welding Shield” (13) on the back of the machine, and with aid of the nut, tightened. (Hand tight only). Caution! Only the Lampert-glare protection system “welding microscope SMD” may be connected to the DENTA PUK. Other glare protection systems are not permitted and can result in permanent health damage or lead to the damaging of the machine.

  • Page 9: Changing Language Displayed

    The maximum operating pressure is 4 bar! Please note! The DENTA PUK will only work when hooked up to a supply of inert gas and only when the machine is receiving enough pressure (ca. 2 litres/min). If inert gas is not hooked up, not flowing or if the pressure is too low, the display will show the following reading: “Gas...

  • Page 10: Adjusting The Welding Parameters

    Important ! At the outset, until a basic proficiency is reached, we recommend to only change the parameter welding power, leaving the welding time constant. After a short time, when you have become more confident with the technique and have gained more experience, then you can naturally also change the welding time to suit your needs.

  • Page 11: Using The Programmable Memory

    Soft mode Welding time 4-30ms, Power 20-100% Especially well adapted to adding metal with welding wires, (the impulse form is, in this case, even “softer on the electrode” than the standard impulse). Pin welding mode Welding on retentions on resin saddles, or pins. Micro mode Welding time 4-12ms, Power 5-32% This modes parameters have lower output levels that can be set in finer...

  • Page 12: Instructions For Use

    Finally, to store the settings and name into the selected memory slot, press and release the rotary knob – Impulse length / welding time (3). The display will show the notice “Your text was stored” the programming process is now completed.

  • Page 13: Welding With The Foot Switch (Optional Accessory)

    No gas is released during the entire pin welding process. 6-2 WELDING WITH THE FOOT SWITCH (optional accessory) Make sure that the DENTA PUK is switched off. Attach the foot switch cable to the socket “Foot Switch” on the back of the machine.

  • Page 14: Working With The Adapter Cable For Welding Pins (Ø1,3Mm)

    After the pin is welded on to the work piece, the cable can simply be slotted on to the pin, thus providing the optimum contact with the DENTA PUK, so that further welding work can be carried out. (This is especially advantageous for all work where contacting the work piece with the other provided tools (i.e.

  • Page 15: Sharpening The Electrodes

    IF FUSES NEED TO BE EXCHANGED; THESE ARE ONLY TO BE REPLACED WITH FUSES OF THE SAME SPECIFICATION. USING FUSES OF A HIGHER VALUE WILL INVALIDATE ANY WARRNTY CLAIMS ! The DENTA PUK may only be opened by an electrician, electrical technician or other qualified personnel who are familiarised with these products.

  • Page 16: Technical Data

    ■ Inert gas min. ARGON 99,8% ■ Maximum Gas pressure 4 bar ■ Protection category ■ Insulation class ■ Degree of protection IP 21S ■ Weight “DENTA PUK” 8,8 kg 7-2 Identification plate Explanation of picture symbols Degree of Amperage Voltage protection...

  • Page 17: Trouble Shooting

    TROUBLE SHOOTING FAULT CAUSE SOLUTION No power Mains power switch is switched on, The power supply (feeder) to the Check the mains power cable and but the display does not light up. machine is interrupted or mains voltage or replace fuse with machine’s internal fuse defective a suitable fuse of the same type and value.

  • Page 18: Spare Parts List

    Warning ! The DENTA PUK may only be opened by an electrician, electrical technician or other qualified personnel who are familiarised with these products! Text and images correspond to, and represent the current technological state at the time of publication and are subject to change without notice.

  • Page 19: Disposal Information

    According to EMV (electro-magnetic compatibility) guidelines 2004/108/EG The following harmonised standards were used: EN 60974-6 EN ISO 12100-1 EN ISO 12100-2 Person duly authorised to carry out technical documentation: N. Hammer Werneck, 30.10.2009 Lampert Werktechnik GmbH Andrea Bauer-Lampert (Managing Director)
