Summary of Contents for Lampert PUK 2

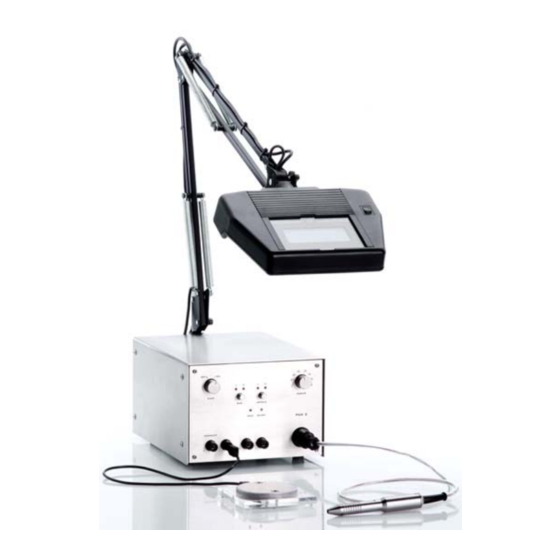

- Page 1 Operating Instructions Precision Welding Device PUK 2 PUK - Optic Device Lampert Werktechnik 230 V...
- Page 3 PUK 2 Operating Instructions 230V Dear Customer This handbook is intended to help you with the Note on Symbol operation of your PUK 2. It is important to read the equipment manufactured “Lampert instructions carefully and to follow the directions Werktechnik GmbH“...
-
Page 4: Table Of Contents
SECTION 2 – INTRODUCTION PUK 2 provides a long-awaited missing link between important factors leading to your advantage. Excellent difficult joining techniques and laser welding devices. ignition and welding characteristics allow a broad range With the help of an intelligent combination of high of use. -
Page 5: Section 3 - General Safety Instructions - Read Before Using
HE FUSE PROTECTION MUST BE SET TO THE SAME VOLTAGE voltage than 230 V will be marked with a special sticker. AS THE CURRENT CONSUMPTION OF THE WELDING DEVICE If the PUK 2 is switched for a voltage other than NLY USE THE AINS CONNECTION DELIVERED WITH THE... -
Page 6: Section 4 - Installation
SECTION 4 – INSTALLATION 4-1. TECHNICAL DATA: Device suitable for welding in dry rooms. Protective gas min. Argon 99.9 % Mains voltage ~230 V / 50-60 Hz +/-15% (ARGON 4.6) Mains fuse T2,5 A max. gas pressure 10 bar Power input 500VA Protection class I Operating voltage 20-38 V Insulation category B... -
Page 7: Description Of Operating Components
4-4.DESCRIPTION OF THE OPERATING COMPONENTS FRONT SIDE (Figure 1) Main switch (1) Output regulator (2) Power regulated in 8 steps Connecting socket for tool piece (3) Sockets (4) for connection of contact elements such as welding table, welding clamp, holding pliers. Charger signal (5) (red when charging) Ready for use signal (6) (green when device is ready for welding) -
Page 8: Starting The Welding Process
ATTENTION! When welding with PUK 2, the welding base, the clamps and/or the pliers are live as soon as the mains master switch is turned on. Make sure that these parts do not touch any electrically conductive or earthed parts such as housing etc. -
Page 9: Grinding The Electrodes
Tips • • Take the time to familiarize yourself with our A saw or file with serrated edges is also very device suitable as additional welding material • • Test the various energy steps of the device. Allow the needle to clamp in longer for deep- •... -
Page 10: Troubleshooting
6-2. TROUBLESHOOTING CHECK LIST ERROR CAUSE SOLUTION 1. No welding power Mains switch turned on Operation Interrupted cable Check cable and Mains signal does not light up 2. No welding power Welding cable connection Check connections Mains switch turned on interrupted. -
Page 11: Section 7 - List Of Spare Parts
Welding current sources for arc hand welding in limited operation: DIN VDE 0543 (VDE 0543) Protective housing type (IP Code): DIN EN 60529 (VDE 0470-1) Electro-magnetic compatibility (EMV): EN50199 Werneck, September 5th, 2002 Lampert Werktechnik GmbH Andrea Bauer – Lampert (President and CEO) - Page 12 The device should only be opened or modified Please be sure to read the chapters “General by authorized customer service technicians, Safety Requirements” and “Personal Protection” otherwise all warrantees and liability claims will before use. be void. Note on Symbols LAMPERT WERKTECHNIK GMBH...
- Page 13 TABLE OF CONTENTS Proper Use Introduction General Safety Requirements Personal Protection Operation and Instructions Description of Operating Elements Care and Maintenance Technical Data Technical Data – ARC WELDING FILTER Proper Use of the PUK OPTIC DEVICE includes: • • Observation of welding processes through the Use for other than the proper purpose describe optic device’s viewing window and workspace is not permitted.
- Page 14 EYE PROTECTION WHILE WELDING • ultraviolet rays cause very painful conjunctivital Do not look into the arc without eye inflammation noticable after several hours. protection; only use welding protection • visors which are made from regulation- Any persons or helpers who are working near approved protective glass.
- Page 15 (Fig . 2) LAMP HOLDER (3) CONNECTIVE PLUG (4) SOCKET (5) MAINS CABLE ( Text and diagrams correspond to the technical level at time of printing. We reserve the right to change. CARE AND MAINTENANCE • The PUK Optic Device does not require much care Regularly check the mains plug, mains cable or maintenance when used at normal levels.
