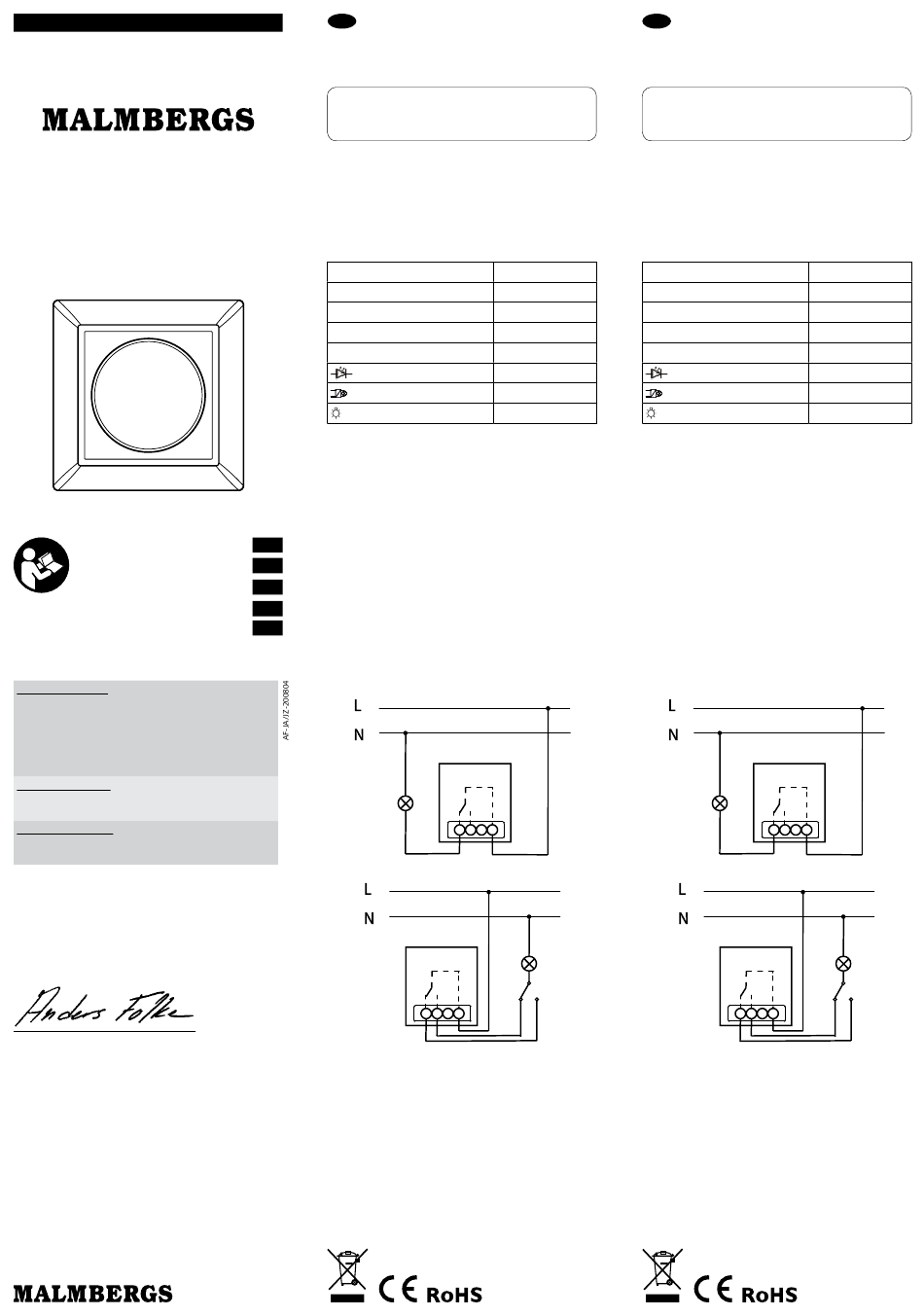

Malmbergs 99 190 51 Instruction Manual

Trailing edge
dimmer switch
600W LED
Brugsanvisning / Instruction Manual
Käyttöohje / Bruksanvisning
EMc Standard (EMc)
EN 60669-2-1:2004+A1:2009+A12:2010 (clause 26)
EN55015:2013+A1:2015
EN 66000-3-2:2014
EN 66000-3-3:2013
EN61547:2009
EN62493:2015
Safety Standard (LvD)
EN 60669-2-1:2004 + A1:2009 + A12:2010
EN 60669-1:2018
rohS Standard (rohS)
Directive (Eu) 2015/863 amending
2011/65/Eu
DEcLArATION OF cONFOrMITy
We hereby certify that the device satisfies the provisions for
cE/Nemko markings in accordance with the Eu directives (Lv
Directive 2014/35/Eu, EMc Directive 2014/30/Eu, rohS
Directive (Eu) 2015/863 amending 2011/65/Eu) as described
in this manual.
For and on behalf of:
Malmbergs Elektriska AB, Sweden.
Mr. Anders Folke / Product Manager
Date: 04/08/2020
Malmbergs Elektriska AB (publ)
PO Box 144, SE-692 23
Kumla, SWEDEN
Phone: +46 (0)19 58 77 00
info@malmbergs.com
www.malmbergs.com
99 190 51
DK
DrEJE LySDæMPEr, cr
Læs vejledningen inden start af installation og
giv vejledningen til brugeren når installationen
er færdig.
ANvENDELSE
Overbelastning-, overophednings- og over-
strømsbeskyttelse.
TEKNISKE DATA
Mærkespænding
Frekvens
Max. LED belastning
Min. LED belastning
Lysdæmper type
Dæmpbar LED-lamper
halogen
glødelys
INSTALLATION
• Sørg altid for at strømmen er afbrudt under
installations arbejdet. Forbind lysdæmperen
efter forbindelses skemaet.
• Når installationen er udført, tændes strømmen.
Tænd for de tilsluttede lamper. Drej lysdæmpe-
DK
ren helt mod venstre og indstil min. niveau på
min. skruen på lysdæmperen. ved at indstille
EN
min. undgås flimmer og det sikres at den
FI
tilsluttede lyskilde tænder i min. niveau.
NO
SE
Forbindelses skema
Lysdæmper alene
Lysdæmper i korrespondance
OBS:
• Installation skal udføres af elektriker, og natio-
nale regler skal følges.
• Installationen skal udføres uden spænding.
• Forbind ikke flere lysdæmpere til samme
belastning.
EN
TrAILINg EDgE DIMMEr SWITch, rc
Read these instructions before starting the
installation and hand it over to the user when
finished.
FEATurES
Overload, over-temperature and over-current
protection.
TEchNIcAL DATA
220-240v ~ Operating voltage
50hz Frequency
600W Max. LED load
5W Min. LED load
Bagkant cr Dimming type
5-600W
Dimmable LED lamps
5-600vA/W halogen
5-600vA/W
Incandescent
INSTALLATION
• Always make sure that the electricity is
switched off during the installation. Then con-
nect the power wires as indicated in the wiring
diagram below.
• Switch on the electricity again. Turn on the
connected lamps. Now turn the dimmer knob
all the way to the left and set the minimum
light with the MIN. screw on the dimmer. you
can adjust this with a screwdriver. Adjust the
lamps so that they do not flicker.
Wiring Diagram
1 gang
1 gang, 2 Way
Please note:
• The installation must be carried out by a qualified
electrician, taking into account the national rules.
• Make sure that the electricity is switched off
during installation.
• you cannot connect more than one dimmer in
parallel to operate the same charge from two
points.
220-240v ~
50hz
600W
5W
Trailing Edge
5-600W
5-600vA/W
5-600vA/W
