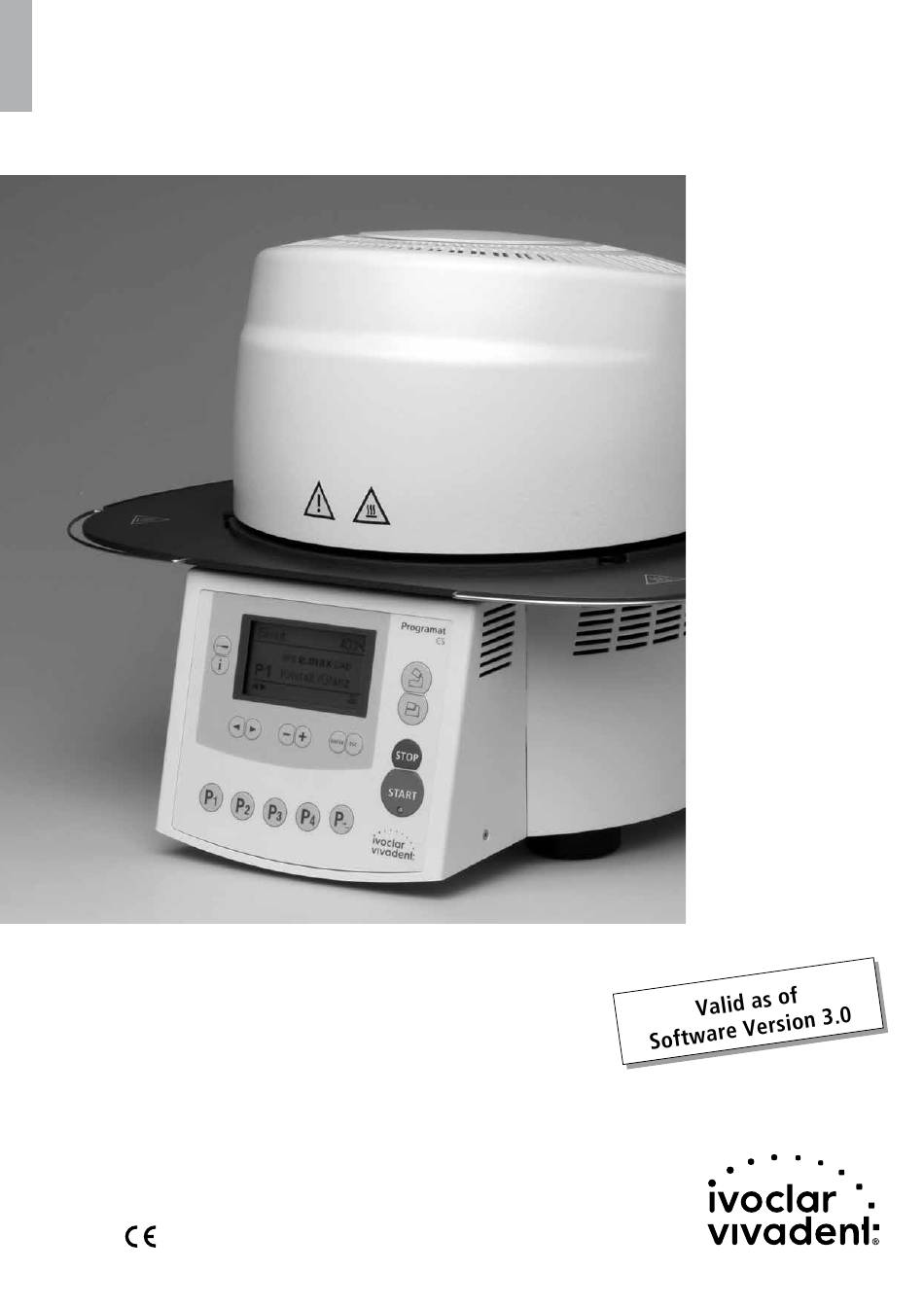

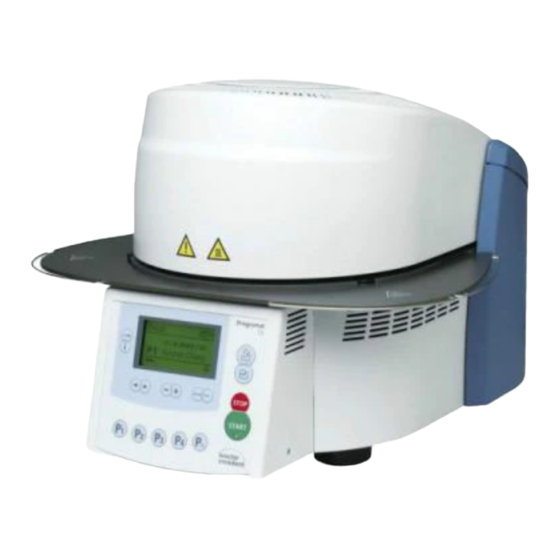

- Page 1 Programat ® Operating Instructions...
-
Page 3: Table Of Contents
Table of Contents Views of the Furnace, List of Parts Introduction / Signs and Symbols Preface Introduction Notes regarding the Operating Instructions Notes on the different voltage versions Safety First Indications Health and safety instructions Product Description Components Hazardous areas and safety equipment Functional description Accessories Indication/Contraindication... -
Page 4: Views Of The Furnace, List Of Parts
List of Parts Front view: Sealing surface Furnace head sealing ring Insulation Thermocouple Firing plate Display Frame plate QTK heating muffle Furnace housing 10 Keypad 11 On/Off switch 12 Heating element fuse 13 Vacuum pump fuse 14 USB-Device interface 15 Fuse holder 16 Power cord 17 Power socket 18 Vacuum pump socket... - Page 6 20 26 30...
- Page 7 Control unit: 71 ESC key 72 ENTER key 73 START key 74 Start LED 75 STOP key 76 + key – key 78 Settings key 79 Cursor key right 80 Cursor key left 81 Information key 82 Program 1 83 Program 2 84 Program 3 85 Program 4 86 Next program...
-
Page 8: Introduction / Signs And Symbols
Dear Customer The signs and symbols in these Operating Instructions facilitate Thank you for having purchased the finding of important points the Programat CS. It is a and have the following state-of-the-art furnace for the meanings: dental practice, which requires a... -
Page 9: Safety First
2. Safety First 2.1.1 This chapter is especially important for personnel who work with the Programat CS or who have to carry out maintenance or repair work. Contraindication This chapter must be read and the corresponding instructions fol- lowed. Do not carry the furnace head by the cooling tray. - Page 10 2.1.6 2.1.11 Risks of burn hazard Contraindication Never place objects in the firing Never use the furnace without a chamber by hand, since there is a firing table. burn hazard. Always use the tongs (accessories) supplied for this pur- pose. Never touch the hot surface of the furnace head, as there is a burn hazard.
-
Page 11: Health And Safety Instructions
The heat insulation of the firing chamber in the Programat CS consists of ceramic fibres. After prolonged use of ceramic fibres at – The power socket must be equipped with a residual current circuit temperatures of over 900 °C (1652 °F), silicogenic substances... -
Page 12: Product Description
– Programat Accessories Set (large and small firing trays, firing tongs, Temperature Checking Set) – Vacuum pump 3.5 Indication/Contraindication Indication – Glaze and crystallization firings (chairside area) Contraindication – The Programat CS is not suitable as ceramic furnace for dental laboratories... -
Page 13: Installation And Initial Start-Up
Vivadent Service Center. Packing and shipping of individual components: The packaging of the Programat CS permits simple and safe shipping of individual components. Simply use the two corresponding inserts. Fold the side flaps (2) and combine the two packaging parts by means of the transportation flaps. - Page 14 Place the cooling tray (34) on the frame plate (7). Make sure that the cooling tray (34) is correctly positioned on the frame plate (7). Secure the cooling tray (34) with the two screws (35) including the silicone washer (47). 35 47 Step 2: Placing the firing plate (5)
- Page 15 Step 3: Mounting the furnace head The complete furnace head is best mounted with the rear panel of the furnace pointing towards the user. Lift the furnace head with both hands (see picture) and carefully position it on the furnace head mounting.
- Page 16 Connect the vacuum pump plug with the vacuum pump socket (18). We recommend using only the VP3 easy or VP4 vacuum pumps from Ivoclar Vivadent, since these pumps are especially coordinated with the furnace. If other pumps are used, please observe and do not...
-
Page 17: Initial Start-Up
4.4 Removing the furnace head Before the hood (36) is removed, the furnace has to be switched off and the power cord (16) disconnected from the power socket (17). 1. Loosen and remove the knurled screw (37) of the hood (36) 2. -
Page 18: Operation And Configuration
– Open furnace head key (87) The furnace head is opened (not possible during a program in The Programat CS is equipped with a graphical display with back- progress). lighting. By means of the enter keys and the command keys (B), the –... -
Page 19: Program Structure
5.5 Adjustable parameters and possible value ranges The furnace offers three types of programs: Symbol Parameter Value range Value range a. Standard programs for Ivoclar Vivadent materials Program number P 1–20 b. Free programs Stand-by temperature 100–700 °C 212–1292 °F c. - Page 20 5.6 Settings / test programs Settings Display Short description By pressing the „Settings“ key (78), the Settings will be displayed Renaming Enables the renaming (indication of the last selected Settings). of the currently selected program. * Enables the renaming of the materials. Time The time can be The cursor keys (79, 80) are used to toggle between the possible...
- Page 21 Short description By pressing the ‚Information‘ key (81), you can access the informa- tion display (the latest information selected is being displayed). You “Ivoclar Vivadent Only after entry of can browse through the various information using the cursor keys optimized the STD code.
- Page 22 5.7 Symbols in the display 5.8 Explanation of beeper tunes Beeper description Explanation Symbol name Meaning Symbol Beeper lasting for approx. Self-test has been completed “One-stage Indicates that a conventional, 2 seconds with unchangeable program“ one-stage program is used “Self-test signal” to indicate the completion of the self-test.
-
Page 23: Practical Use
6. Practical Use 6.3 Firing using an individual program The operating procedure for the Programat CS will be explained with the help of two examples: one standard and one individual Step 1: program. Select a free program. Step 2: 6.1 Switching on/off Select the parameter list via the setting ‚Programming‘... -
Page 24: Programming
6.5 Programming One-stage program * The parameter list can be selected via the setting ‚Programming‘ (7/19). In this list, all the program parameters are shown. The desired parameter can be selected using the cursor keys. The value can be changed using the ‚-/+‘ keys. This screen can be exited with the ESC or the Program keys. -
Page 25: Maintenance, Cleaning And Diagnosis
Insulation (3) monthly it has to be replaced by a certified Ivoclar Vivadent Service Center. Fine hair- line cracks on the surface of the insulation are harmless and do not influence the function of the furnace in a negative fashion. - Page 26 7.3 Test programs 7.6 Temperature calibration Press the the key ‘Settings’ and select the desired test program by 1. Select the calibration program. using the Cursor-keys. 2. Remove the firing plate from Vacuum pump test program: the furnace using the furnace With this program, the vacuum performance of the furnace vacuum tongues and place it on the system can be automatically tested.
-
Page 27: What If
System Error in the heating system Check the heater fuse. If the fuse is O.K., contact your local Ivoclar Vivadent Service Center. System Heating muffle very old The heating muffle is very old. It is recommended to replace it. After the error message has been acknowledged, a firing program may still be started. - Page 28 8.2 Other error messages Please contact the Ivoclar Vivadent After Sales Service, if one of the following error messages being displayed: 25, 29 43, 44, 45, 46, 47, 48 54, 56 103, 107 700, 701, 703, 704, 705, 706, 707...
-
Page 29: Technical Malfunctions
8.3 Technical malfunctions These malfunctions may occur without an error message being displayed. * If there are any questions, please contact the Ivoclar Vivadent After Sales Service. Description Double-check Action Is the vacuum released within approximately Wait until the vacuum is released, remove object. -
Page 30: Product Specifications
Acceptable humidity range Max. 80 % relative humidity Acceptable ambient pressure 500 mbar to 1060 mbar Use only original packaging of the Programat CS together with the 9.2 Technical data respective foam material for shipping purposes. Power supply 100 V / 50–60 Hz 110–120 V / 50–60 Hz... -
Page 31: Appendix
10. Appendix 10.1 Program table The program tables (°C / °F) are enclosed in the Operating Instructions. Should this not be the case, please contact the Ivoclar Vivadent Service Center. Important Information You also will find the program tables in the Internet: www.ivoclarvivadent.com/downloadcenter You can download the program tables as PDF files from this side. - Page 32 Ivoclar Vivadent Ltda. Pvt. Ltd. Ivoclar Vivadent Liaison Office Alameda Caiapós, 723 503/504 Raheja Plaza Ivoclar Vivadent Polska Sp. z o.o. : Tesvikiye Mahallesi Centro Empresarial Tamboré 15 B Shah Industrial Estate Al. Jana Pawla II 78 Sakayik Sokak CEP 06460-110 Barueri –...
